Monarch Instrument

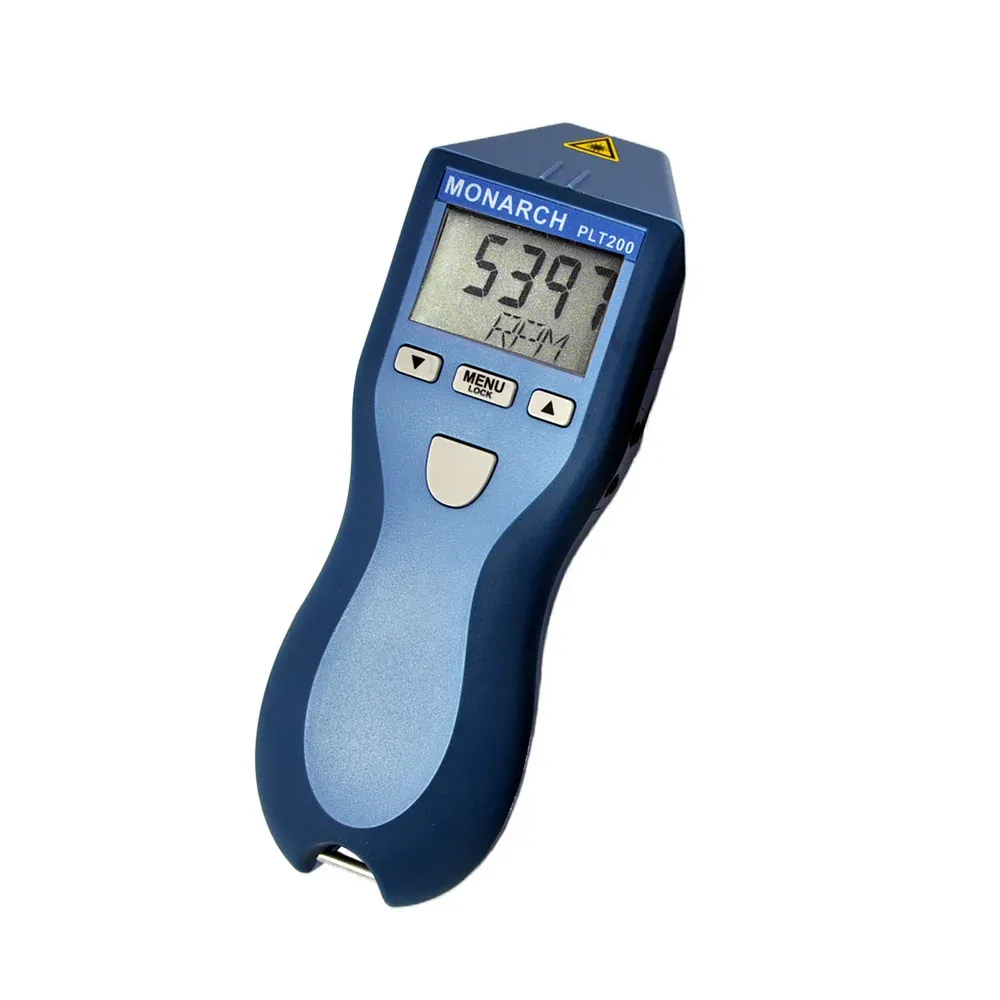

Monarch Pocket Laser Tach 200 (PLT200)
Quote on request
No online payment · add lines to RFQ BOM
Class 2 laser tach; optical to 200,000 RPM; contact/RCA; NIST. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Display
Dual LCD: 5-digit upper + 5-digit alphanumeric lower
Type
Handheld Class 2 laser optical tachometer / rate meter / totalizer / timer (PLT200)
Optical Range
5 to 200,000 RPM (ambient-light dependent)
Contact Range
0.5 to 20,000 RPM with Remote Contact Assembly
Optical Accuracy
±0.01% of reading
Contact Accuracy
±0.05% of reading
Fits optical and contact RPM work where you need a Monarch PLT200 Class 2 laser tachometer with optical range to 200,000 RPM, Remote Contact Assembly input, and NIST-traceable certificate included.
Key advantages
- Optical — 5 to 200,000 RPM; ±0.01%; 2 in to 25 ft; ±70° from perpendicular
- Contact — 0.5 to 20,000 RPM with Remote Contact Assembly; ±0.05%
- Display — Dual LCD (5-digit + alphanumeric)
- I/O — TTL pulse out; RCA/remote sensor input; NIST certificate included
- Power — 2× AA; ~30 hours typical
Typical applications
- Long-distance laser RPM with reflective targets.
- Contact RPM via RCA accessory.
- Rate/totalizer/timer field checks.
Selection guide
- Optical vs contact — Laser vs RCA
- Distance — Up to 25 ft optical
- I/O — TTL pulse needs
- Certificate — NIST included
Common mistakes
- Confusing with non-laser PT99.
- Unsafe laser aiming (Class 2).
- Contact mode without RCA assembly.
When to RFQ / what to tell us
- RCA/accessories; quantity; ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 23672 |
| Brand | Monarch Instrument |
| Model | Pocket Laser Tach 200 |
| Product type | Tachometer |
| Type | Handheld Class 2 laser optical tachometer / rate meter / totalizer / timer (PLT200) |
| Optical range | 5 to 200,000 RPM (ambient-light dependent) |
| Contact range | 0.5 to 20,000 RPM with Remote Contact Assembly |
| Optical accuracy | ±0.01% of reading |
| Contact accuracy | ±0.05% of reading |
| Operating distance | 2 in to 25 ft (up to 8 m) from reflective target; ±70° from perpendicular |
| Display | Dual LCD: 5-digit upper + 5-digit alphanumeric lower |
| Memory | Maximum, Minimum, and Last reading |
| Power | 2× AA 1.5 Vdc; approx. 30 hours typical |
| I/O | TTL pulse output; input for RCA / remote sensors; NIST Traceable Certificate included |
Documents
FAQ
Q: Optical max? A: 200,000 RPM (ambient-light dependent).
Q: NIST? A: NIST Traceable Certificate included.
Q: What should I send for a quote? A: Accessories, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Display | Dual LCD: 5-digit upper + 5-digit alphanumeric lower |
| Type | Handheld Class 2 laser optical tachometer / rate meter / totalizer / timer (PLT200) |
| Optical Range | 5 to 200,000 RPM (ambient-light dependent) |
| Contact Range | 0.5 to 20,000 RPM with Remote Contact Assembly |
| Optical Accuracy | ±0.01% of reading |
| Contact Accuracy | ±0.05% of reading |
| Operating Distance | 2 in to 25 ft (up to 8 m) from reflective target; ±70° from perpendicular |
| Memory | Maximum, Minimum, and Last reading |
| Power | 2× AA 1.5 Vdc; approx. 30 hours typical |
| Io | TTL pulse output; input for RCA / remote sensors; NIST Traceable Certificate included |
