AEMC

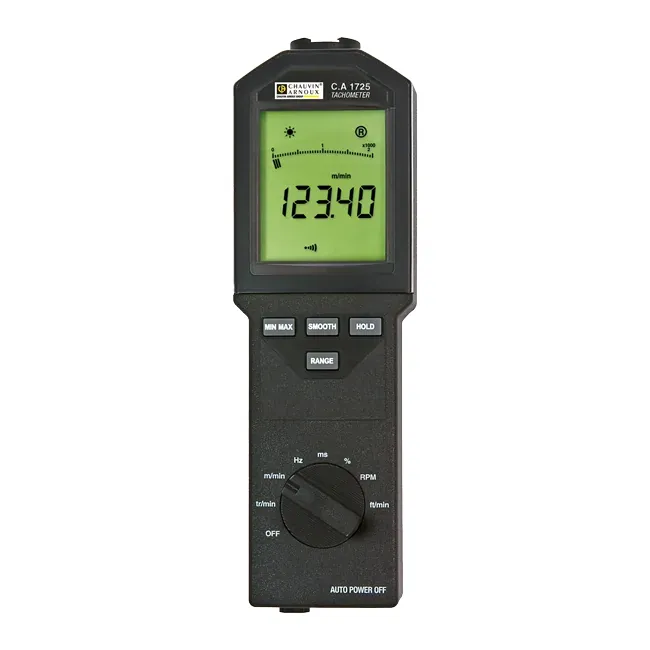

AEMC CA1725 / CA1727 Tachometers
Quote on request
No online payment · add lines to RFQ BOM
CA1725/1727: to 100k RPM; optical/contact; IP51; 1727 USB 4k pts. RFQ model.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
Rotational 6–100,000 RPM; linear 0.1–10,000 m/min or ft/min; frequency 0.1–10,000 Hz; period 0.1–10,000 ms; duty 10–10,000%
Accuracy
RPM: 1×10⁻⁴ of reading ±6 counts; linear: 1×10⁻⁴ of reading ±1 increment; frequency: 4×10⁻⁵ of reading ±4 counts
Supply
9 V alkaline battery
Display
100,000-point digital display with analog bargraph
Approvals
IEC 61010-1; CE
Notes
Specs from AEMC 1748-30 datasheet, brochure and CA1725-1727_EN manual. No Instrumart.
Fits rotational and linear speed checks where you need an AEMC CA1725 or CA1727—optical non-contact or contact adapter measurement to 100,000 RPM with frequency, period, and duty-cycle functions.
Key advantages
- RPM — CA1725 6–100,000; CA1727 60–100,000
- Accuracy — 1×10⁻⁴ of reading ± 6 counts
- Modes — RPM, linear speed, Hz, period, duty cycle
- Optical — 1–50 cm; ±15° to reflective strip
- CA1727 — 4,000-point memory; USB / TachoGraph; IP51
Typical applications
- Motor / fan RPM checks.
- Conveyor linear speed.
- Machine maintenance tach surveys.
Selection guide
- CA1725 vs CA1727 (USB/memory)
- Mechanical adapter kit
- Reflective tape stock
Common mistakes
- Expecting USB on CA1725.
- Optical angle beyond ±15°.
- Missing contact wheel for linear mode.
When to RFQ / what to tell us
- Model, accessories.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 37072 |
| Brand | AEMC |
| Model | CA1725 / CA1727 |
| Product type | Tachometer |
| Type | Contact / non-contact optical tachometer (CA1725 / CA1727) |
| RPM | CA1725: 6–100,000 RPM; CA1727: 60–100,000 RPM |
| Accuracy | 1×10⁻⁴ of reading ± 6 counts (RPM) |
| Functions | RPM, linear speed, frequency, period, duty cycle; count (CA1727) |
| Optical | 1–50 cm measuring distance; ±15° angle |
| Memory | CA1727: 4,000 points; USB / TachoGraph |
| Power | 9 V alkaline; IP51 |
Documents
FAQ
Q: Max RPM? A: Up to 100,000 RPM.
Q: CA1727 difference? A: Adds 4,000-point memory and USB/TachoGraph.
Q: What should I send for a quote? A: Model/accessories, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | Rotational 6–100,000 RPM; linear 0.1–10,000 m/min or ft/min; frequency 0.1–10,000 Hz; period 0.1–10,000 ms; duty 10–10,000% |
| Accuracy | RPM: 1×10⁻⁴ of reading ±6 counts; linear: 1×10⁻⁴ of reading ±1 increment; frequency: 4×10⁻⁵ of reading ±4 counts |
| Supply | 9 V alkaline battery |
| Display | 100,000-point digital display with analog bargraph |
| Approvals | IEC 61010-1; CE |
| Notes | Specs from AEMC 1748-30 datasheet, brochure and CA1725-1727_EN manual. No Instrumart. |
| Functions | Contact wheel / optical / external input; MIN/MAX/HOLD; CA1727: logging, alarms, event counter 0–99,999 |
| Optical Sensor | Measurement distance 1–50 cm; angle ±15°; reflective area 10–90% |
| Memory | CA1727: 4000 measurements with USB / TachoGraph software |
| Battery Life | 250 × 5 min optical; 600 × 5 min external sensor |
| Ingress Protection | IP51 |
| Dimensions | 216 × 72 × 47 mm (8.5 × 2.83 × 1.85 in) |
| Weight | 250 g (8.8 oz) |
| Operating Temperature | 0 to 55 °C (32 to 131 °F) @ 90% RH |
