Druck

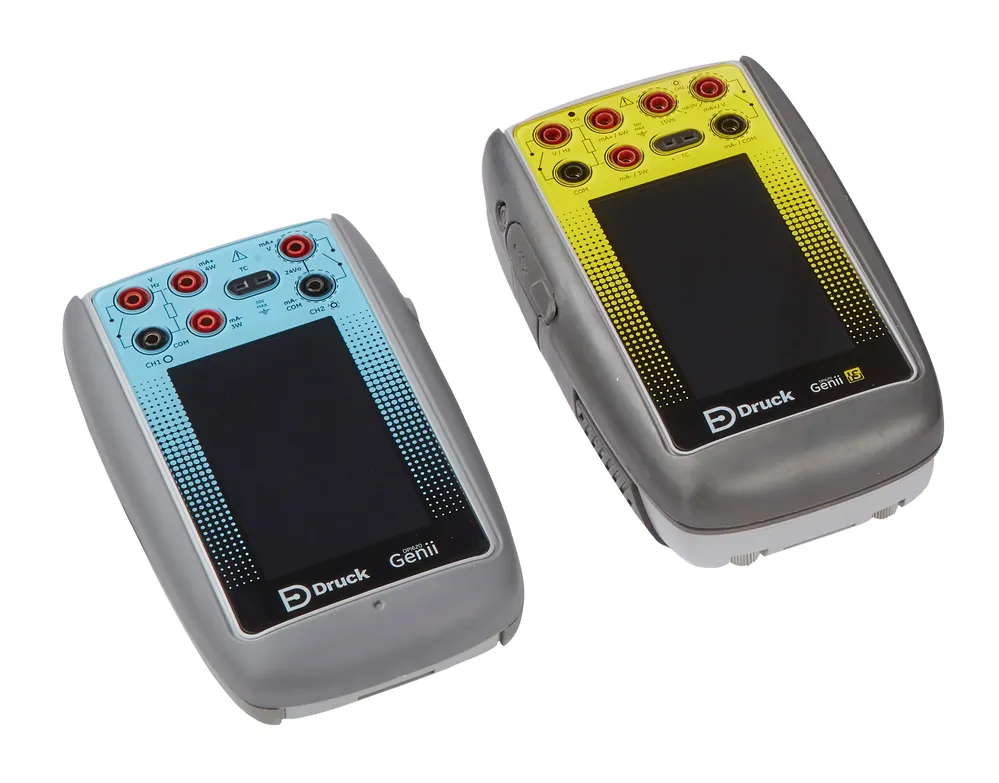

Druck DPI620 Genii Multifunction Calibrator
Quote on request
No online payment · add lines to RFQ BOM
DPI620G: modular V/I calibrator; PM620 pressure; HART/FF options. RFQ config.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
Electrical and pressure accuracy per channel per datasheet; world-class PM620 pressure modules
Protection
IP55
Ambient temperature
Operating −10 to 50 °C (14 to 122 °F); storage −20 to 70 °C
Display
4.3 in (110 mm) colour touch LCD 480×800; 2 mm toughened glass
Approvals
CE; UKCA; ATEX; IECEx; ETL (IS versions)
Form Factor
Handheld modular multifunction calibrator (Genii Advanced Modular Calibration System)
Fits modular electrical and pressure calibration where you need a Druck DPI620 Genii—high-accuracy DC voltage and current sourcing/measurement with interchangeable PM620 pressure modules and HART/Fieldbus communicator options.
Key advantages
- Electrical — DC V ±20 V: 0.0025% rdg + 0.002% FS; mA ±20 mA: 0.006% rdg + 0.005% FS class
- Pressure — PM620 modules ~70 mbar–1000 bar class
- Comms — HART / Fieldbus communicator options
- Form — Handheld modular Genii platform
- Expand — Pressure generation stations / modules
Typical applications
- Field transmitter calibration.
- Shop multifunction cal.
- HART device configuration.
Selection guide
- PM620 ranges
- HART/FF options
- Generation station
Common mistakes
- Module not seated for pressure.
- IS Genii-IS needed in hazloc.
- Wrong media on pressure module.
When to RFQ / what to tell us
- Modules, options.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 39099 |
| Brand | Druck |
| Model | DPI620G |
| Product type | Multifunction Calibrator |
| Type | Modular multifunction calibrator (DPI620 Genii) |
| Electrical | DC V ±20 V: 0.0025% rdg + 0.002% FS; DC mA ±20 mA: 0.006% rdg + 0.005% FS class |
| Pressure | Pairs with PM620 modules (~70 mbar–1000 bar class) |
| Comms | HART / Fieldbus communicator options class |
| Form | Handheld modular Genii platform |
Documents
FAQ
Q: Pressure? A: Via interchangeable PM620 modules.
Q: HART? A: HART/Fieldbus communicator options on Genii platform.
Q: What should I send for a quote? A: Modules/options, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | Electrical and pressure accuracy per channel per datasheet; world-class PM620 pressure modules |
| Protection | IP55 |
| Ambient temperature | Operating −10 to 50 °C (14 to 122 °F); storage −20 to 70 °C |
| Display | 4.3 in (110 mm) colour touch LCD 480×800; 2 mm toughened glass |
| Approvals | CE; UKCA; ATEX; IECEx; ETL (IS versions) |
| Form Factor | Handheld modular multifunction calibrator (Genii Advanced Modular Calibration System) |
| Functions | Simultaneous measure/source for mA, V, Ω, frequency, switches, RTD, thermocouple; optional HART/Foundation Fieldbus |
| Pressure | Interchangeable PM620 modules with MC620G carrier or PV62XG generation base stations |
| Comms | USB Type A, USB Mini-B; Bluetooth on B1 models; HART/Fieldbus internal modems |
| Memory | 4 GB internal flash + 8 GB microSD (safe area); data log up to six channels |
| Battery | Li-polymer ~4600–4800 mAh; ≈12 h measure / ≈7 h dual mA with 24 V |
| Size Weight | 186 × 115.5 × 42.5 mm; 675 g with battery |
| Special Features | 14 safe-area and 5 hazardous-area model variants; calibration wizard; Freemium 4Sight2 license |
