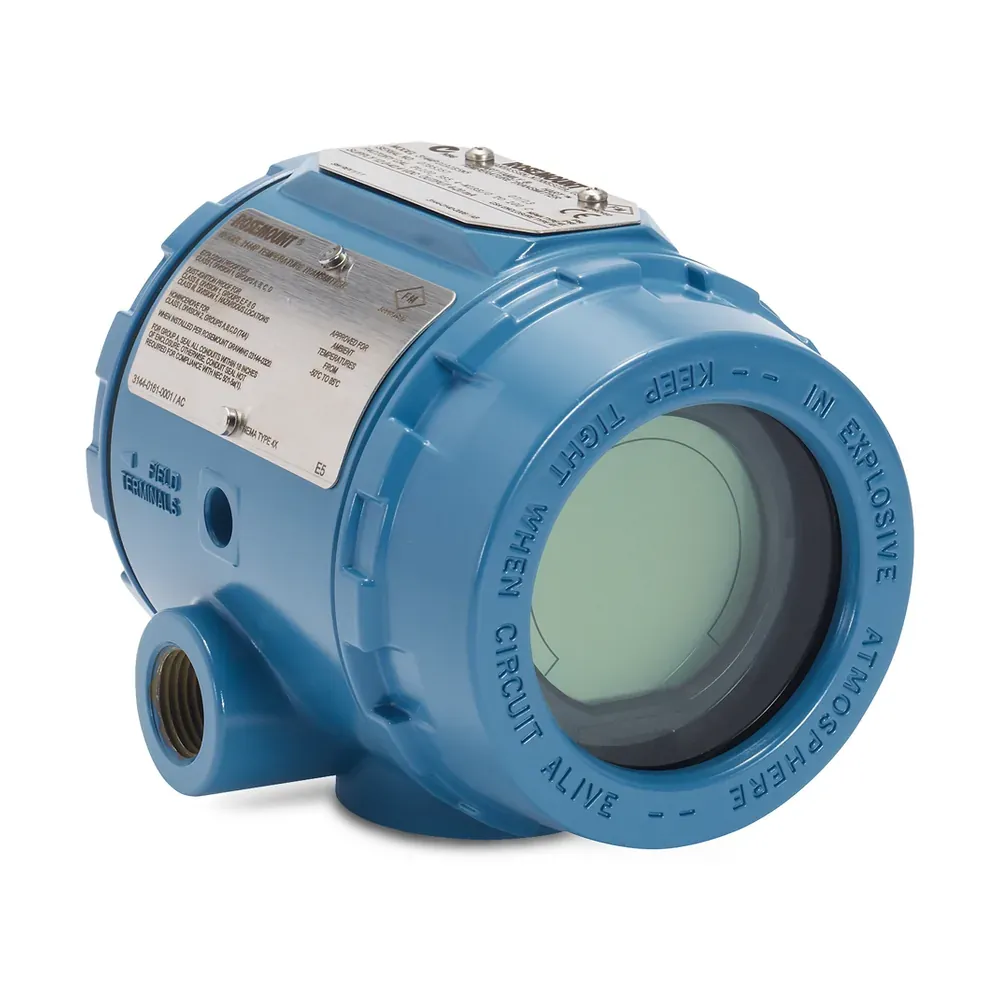

Rosemount 3144P Temperature Transmitter

Fits continuous temperature loops that need a dual-compartment field-mount transmitter with universal RTD / thermocouple / mV / ohm inputs and a 4–20 mA HART or FOUNDATION Fieldbus output — sensor ordered separately.

Key advantages

Universal sensor input — Pt100 −200…+850 °C plus RTD / TC / mV / ohm; single or dual sensor.
Pt100 ±0.10 °C — Digital accuracy ±0.10 °C; enhanced ±0.08 °C option.
HART or Fieldbus — 4–20 mA HART (Rev 5/7) or FOUNDATION Fieldbus.
Dual-compartment field mount — Aluminum or CF-8M SST; Type 4X / IP66 / IP68.
SIL 3 capable — IEC 61508 listing with regional Ex options by order code.

Typical applications

Continuous process temperature loops with remote RTD or thermocouple sensors.
Plants standardized on HART or FOUNDATION Fieldbus temperature transmitters.
Field-mount installs that need dual-compartment housings and area-class options.

Selection guide

Input / range — Pt100 (IEC 751) −200…+850 °C; universal RTD (Pt100/Pt200/Pt500/Pt1000 etc.), thermocouple, mV, ohms; single or dual sensor.
Accuracy — Pt100 digital accuracy ±0.10 °C (enhanced ±0.08 °C).
Output / protocol — 4–20 mA HART (Rev 5/7) or FOUNDATION Fieldbus. Confirm DCS/PLC protocol before ordering.
Supply — 12.0–42.4 Vdc (HART; 18.1 Vdc with 250 Ω load). Check loop resistance and barrier drop.
Housing — Low-copper aluminum or CF-8M (cast 316 SST) dual-compartment field mount.
IP / ambient — Type 4X, IP66 and IP68; ambient −40…+85 °C.
Electrical entries — ½–14-inch NPT conduit (std); M20×1.5, PG 13.5, JIS G½ options.
Display — Large LCD (option).
Area classification — ATEX/IECEx flameproof, IS, Type n, dust options (order codes E1/I1/N1/E7/I7 etc.). SIL 3 capable (IEC 61508), ATEX, IECEx, FM, CSA, CE.

Common mistakes

Treating this as a complete probe assembly — process connection and sheath are blank by design; the sensor (RTD/TC) is ordered separately or via assemble-to-sensor.
Ordering dual-sensor diagnostics without confirming single vs dual input on the model code.
Mixing HART supply expectations with Fieldbus loop design — lock protocol and available voltage first.
Claiming SIL or hazardous-area coverage without the matching order codes and certificates on the quote.
Leaving conduit entry (NPT vs M20) and housing material (Al vs SST) blank on the RFQ.

When to RFQ / what to tell us

Sensor type (RTD/TC/mV/ohm), single vs dual, and required Pt100 accuracy class (±0.10 / ±0.08 °C).
Output protocol (HART vs FOUNDATION Fieldbus) and available loop supply / load.
Housing (Al / SST), conduit entries, LCD yes/no, ambient and IP needs.
Required area/SIL marks and certificates; quantity; ship-to country.
Whether a matching Rosemount sensor / thermowell is needed on the same quote.

Request a Quote · Get selection help

Specs

Spec	Value
SKU	25125
Brand	Rosemount
Model	3144P
Product type	transmitter
Measuring range	Pt100 (IEC 751) input −200…+850 °C; universal RTD / thermocouple / mV / ohm inputs (single or dual sensor)
Sensor type	Universal: RTD (Pt100/Pt200/Pt500/Pt1000 etc.), thermocouple, mV, ohms
Accuracy	Pt100 digital accuracy ±0.10 °C (enhanced ±0.08 °C)
Output signal	4–20 mA HART (Rev 5/7) or FOUNDATION Fieldbus
Supply voltage	12.0–42.4 Vdc (HART; 18.1 Vdc with 250 Ω load)
Electrical connection	½–14-inch NPT conduit (std); M20×1.5, PG 13.5, JIS G½ options
Housing material	Low-copper aluminum or CF-8M (cast 316 SST) dual-compartment field mount
IP rating	Type 4X, IP66 and IP68
Ambient temperature	−40…+85 °C
Head type	Field mount dual-compartment housing
Communication	HART; FOUNDATION Fieldbus
Display	Large LCD (option)
Approvals	SIL 3 capable (IEC 61508); ATEX; IECEx; FM; CSA; CE
Hazardous area	ATEX/IECEx flameproof, IS, Type n, dust options (order codes E1/I1/N1/E7/I7 etc.)
Mounting	Field mount
Weight	Aluminum 3.1 lb (1.4 kg); SST 7.8 lb (3.5 kg)
Notes	Transmitter only — processconnection and sheathmaterial blank (sensor ordered separately / assemble-to-sensor option).

Documents

Rosemount 3144P datasheet (PDF)

FAQ

Q: Does the 3144P include a stem or thermowell? A: No. This SKU is the transmitter only. Process connection and sheath are blank by design — order the RTD/TC (and connection) separately, or ask for assemble-to-sensor options in the RFQ.

Q: HART or FOUNDATION Fieldbus — which do I pick? A: Match the host. Output is 4–20 mA HART (Rev 5/7) or FOUNDATION Fieldbus. Supply for HART is 12.0–42.4 Vdc (18.1 Vdc with 250 Ω load). State protocol and available loop voltage in the RFQ.

Q: Which approvals can I claim on the nameplate? A: Only those on the datasheet and ordered codes: SIL 3 capable (IEC 61508), ATEX, IECEx, FM, CSA, CE. Hazardous-area protection type is selected by order code (E1/I1/N1/E7/I7 etc.). Compatible with systems using Rosemount 3144P if you need a drop-in check — we do not claim authorized-dealer status.
