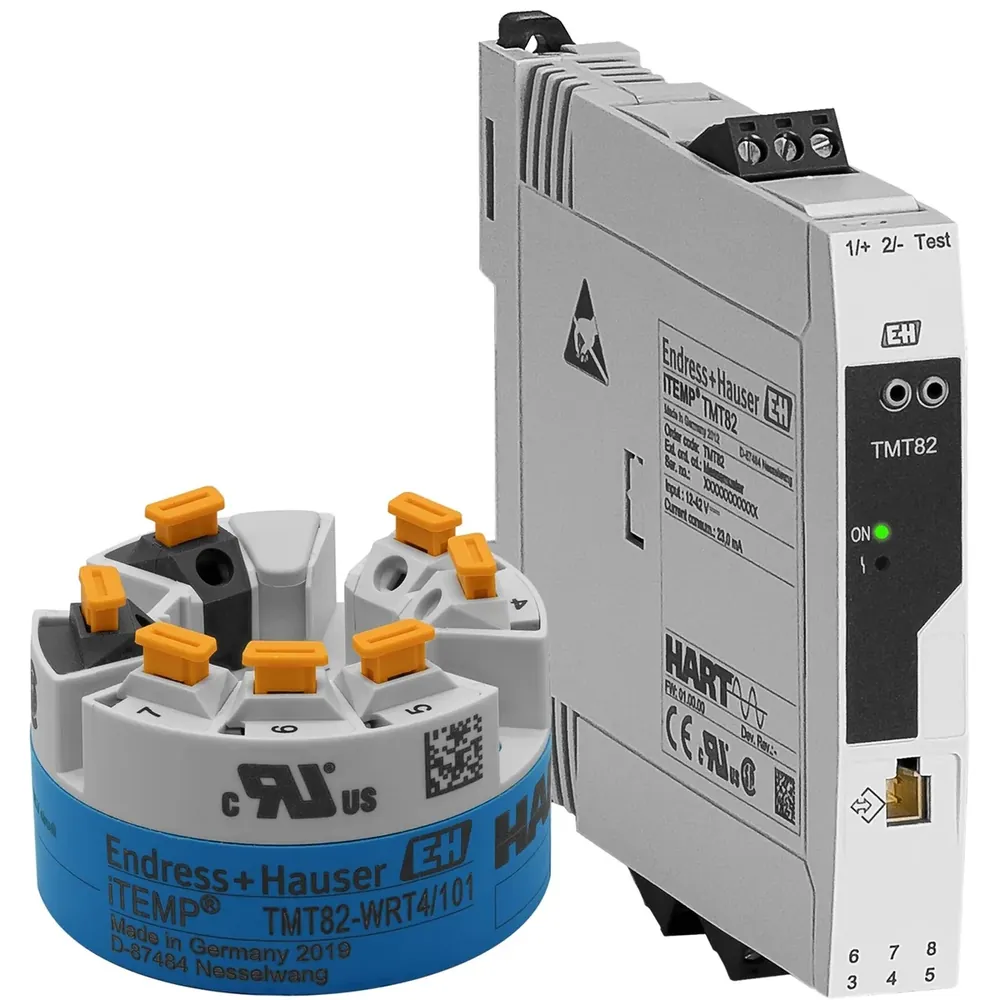

E+H iTEMP TMT82 Temperature Transmitter

Fits continuous temperature loops that need a 2-channel universal RTD / thermocouple / Ω / mV head, DIN-rail, or field-mount transmitter with a single 4–20 mA HART 7 output — sensor ordered separately.

Key advantages

2 universal inputs — RTD (e.g. Pt100 −200…850 °C), TC per IEC/ASTM, Ω, and mV.
HART 7 on 4–20 mA — invertible 20–4 mA; supply 11…42 VDC (SIL mode upper 32 VDC).
Form-factor choices — head, DIN-rail, or field housing with matching IP classes.
SIL2 + Ex marks — ATEX/IECEx/FM/CSA/SIL2/CE/DNV GL by configuration.

Typical applications

Critical temperature loops needing dual-sensor redundancy or differential.
Head-mount upgrades on existing RTD/TC assemblies.
Cabinet DIN-rail temperature signal conditioning with HART.

Selection guide

Input / range — 2 universal inputs: RTD e.g. Pt100 −200…850 °C; TC types per IEC/ASTM tables; also Ω and mV.
Sensor type — Universal: RTD (Pt100/Pt1000 etc.), thermocouple, resistance (Ω), voltage (mV); 2-channel.
Accuracy — Pt100 IEC 60751 example ME ±(0.05 °C + 0.0039%·(MV−LRL)); typical table values ~0.07…0.09 °C depending on span.
Output — 1× 4–20 mA (invertible 20–4 mA) with HART 7.
Supply — 11…42 VDC standard (head); 12…42 VDC some variants; SIL mode upper limit 32 VDC.
Mount / head — DIN EN 50446 form B (flat face) head mount; DIN-rail TH35; field mount housing.
Housing & IP — Head / DIN-rail / field housings (materials per TI). Head typically to IP66/67/68 with field housing (NEMA 4X); ATEX field housings IP66/67; DIN-rail IP20-class cabinet install.
Ambient — Head/DIN-rail −40…85 °C (−40…185 °F); field housing variants −30…85 °C; SIL mode −40…70 °C.

Common mistakes

Treating this as a complete probe assembly — process connection and sheath are blank by design; order the RTD/TC separately.
Ordering dual-channel diagnostics without confirming both channels are wired and configured.
Using SIL-mode supply expectations (upper 32 VDC) on a non-SIL loop design, or the reverse.
Claiming Ex / SIL coverage without the matching housing and order codes on the quote.
Specifying stem length / sheath material on this SKU — those belong on the sensor, not the TMT82 body.
Mounting a DIN-rail IP20 unit where the location needs field-housing IP66/67/68.

When to RFQ / what to tell us

Sensor type (RTD / TC / Ω / mV), single or dual channel use, and required measuring range / units.
Sensor details separately: stem length, sheath material, process connection (not part of this transmitter SKU).
Mount form (head form B / DIN-rail / field housing), display yes/no.
Supply available (must fit 11…42 VDC head standard; note SIL upper 32 VDC) and HART host.
Ambient, IP need, and hazardous-area / SIL marks required.
Quantity and ship-to country.

Request a Quote · Get selection help

Specs

Spec	Value
SKU	46135
Brand	Endress+Hauser
Model	iTEMP TMT82
Product type	transmitter
Measuring range	2 universal inputs: RTD e.g. Pt100 −200…850 °C; TC types per IEC/ASTM tables; also Ω and mV
Sensor type	Universal: RTD (Pt100/Pt1000 etc.), thermocouple, resistance (Ω), voltage (mV); 2-channel
Accuracy	Pt100 IEC 60751 example ME ±(0.05 °C + 0.0039%·(MV−LRL)); typical table values ~0.07…0.09 °C depending on span
Output signal	1× 4–20 mA (invertible 20–4 mA) with HART 7
Supply voltage	11…42 VDC standard (head); 12…42 VDC some variants; SIL mode upper limit 32 VDC
Electrical connection	Screw or push-in terminals; sensor 2-/3-/4-wire
Wiring	2-wire (loop)
Housing material	Head / DIN-rail / field housings (materials per TI mechanical construction)
IP rating	Head typically to IP66/67/68 with field housing (NEMA 4X); ATEX field housings IP66/67; DIN-rail IP20-class cabinet install
Ambient temperature	Head/DIN-rail −40…85 °C (−40…185 °F); field housing variants −30…85 °C; SIL mode −40…70 °C
Head type	DIN EN 50446 form B (flat face) head mount; DIN-rail TH35; field mount housing
Communication	HART 7
Display	Optional plug-on display with field housing
Approvals	ATEX; IECEx; FM; CSA; SIL2; CE; DNV GL
Hazardous area	International Ex approvals (FM, CSA, ATEX, EAC, NEPSI, IECEx); Ex d field housing options
Mounting	Terminal head form B, DIN-rail, or field housing remote mount
Notes	Transmitter only — processconnection and sheathmaterial intentionally blank (sensor/thermometer ordered separately).

Documents

Endress+Hauser iTEMP TMT82 technical information (PDF)

FAQ

Q: Does the TMT82 include a stem or thermowell? A: No. This SKU is the transmitter only. Process connection and sheath are blank by design — order the RTD/TC separately.

Q: One output or two? A: One 4–20 mA HART 7 output (invertible). Inputs are 2-channel universal — state how both channels will be used in the RFQ.

Q: Which approvals can I claim? A: Only those on the datasheet and ordered codes: ATEX, IECEx, FM, CSA, SIL2, CE, DNV GL. Ex protection type and housing (including Ex d field options) are selected by order code.

Q: What should I send for a quote? A: Sensor type and range, mount form, supply, IP / area class, SIL need, quantity. Compatible with systems using Endress+Hauser iTEMP TMT82 if you need a drop-in check — we do not claim authorized-dealer status.
