INOR

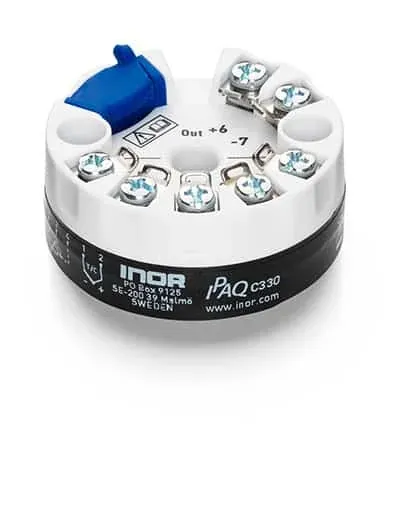

INOR IPAQ C330 Universal Temperature Transmitter
Quote on request
No online payment · add lines to RFQ BOM
INOR IPAQ C330: head-mount 2-wire; RTD/TC/mV/ohm; 4–20 mA; 1500 VAC isolation. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
Typical ±0.08 °C or ±0.08% of span
Type
Head-mounted universal 2-wire temperature transmitter (IPAQ C330)
Input
RTD, thermocouple, mV, ohm / potentiometer
Rtd Range
Pt100 −200 to +850 °C (−328 to +1562 °F); 2-/3-/4-wire
Thermocouples
Types B, C, D, E, J, K, N, R, S, T
Isolation
1500 VAC, 1 min
Fits head-mounted temperature transmission where you need an INOR IPAQ C330. Universal 2-wire transmitter for RTD, thermocouple, mV and ohm/potentiometer inputs with temperature-linear 4–20 mA output, 1500 VAC isolation and 8.0…36.0 VDC supply (C330X 8.0…30.0 VDC).
Key advantages
- Form — Head-mounted 2-wire universal
- Inputs — RTD, TC, mV, ohm / potentiometer
- RTD — Pt100 −200 to +850 °C; 2/3/4-wire
- Output — 4–20 mA temperature linear
- Isolation — 1500 VAC, 1 min
Typical applications
- Head-mount RTD/TC loops.
- OEM transmitter heads.
- Universal temperature I/O.
Selection guide
- C330 vs C330X
- Sensor type
- Output direction 4–20 / 20–4
Common mistakes
- Wrong wire count.
- Supply below 8 V.
- TC cold-junction ignore.
When to RFQ / what to tell us
- Input/Ex option.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 46279 |
| Brand | INOR |
| Model | IPAQ C330 |
| Product type | Temperature Transmitter |
| Type | Head-mounted universal 2-wire temperature transmitter (IPAQ C330) |
| Input | RTD, thermocouple, mV, ohm / potentiometer |
| RTD range | Pt100 −200 to +850 °C (−328 to +1562 °F); 2-/3-/4-wire |
| Thermocouples | Types B, C, D, E, J, K, N, R, S, T |
| Output | 4–20 mA / 20–4 mA, temperature linear |
| Isolation | 1500 VAC, 1 min |
| Supply | IPAQ C330 8.0…36.0 VDC; C330X 8.0…30.0 VDC |
Documents
FAQ
Q: Isolation? A: 1500 VAC, 1 min.
Q: Supply? A: 8.0…36.0 VDC (C330).
Q: What should I send for a quote? A: Input/Ex option, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | Typical ±0.08 °C or ±0.08% of span |
| Type | Head-mounted universal 2-wire temperature transmitter (IPAQ C330) |
| Input | RTD, thermocouple, mV, ohm / potentiometer |
| Rtd Range | Pt100 −200 to +850 °C (−328 to +1562 °F); 2-/3-/4-wire |
| Thermocouples | Types B, C, D, E, J, K, N, R, S, T |
| Isolation | 1500 VAC, 1 min |
| Supply | IPAQ C330 8.0…36.0 VDC; C330X 8.0…30.0 VDC |
| Configuration | NFC / Bluetooth (ICON-BT) / USB ConSoft; DIN B head mount |
| Document | INOR IPAQ 330 datasheet + user instruction + C330 catalog sheet |
