Teledyne FLIR

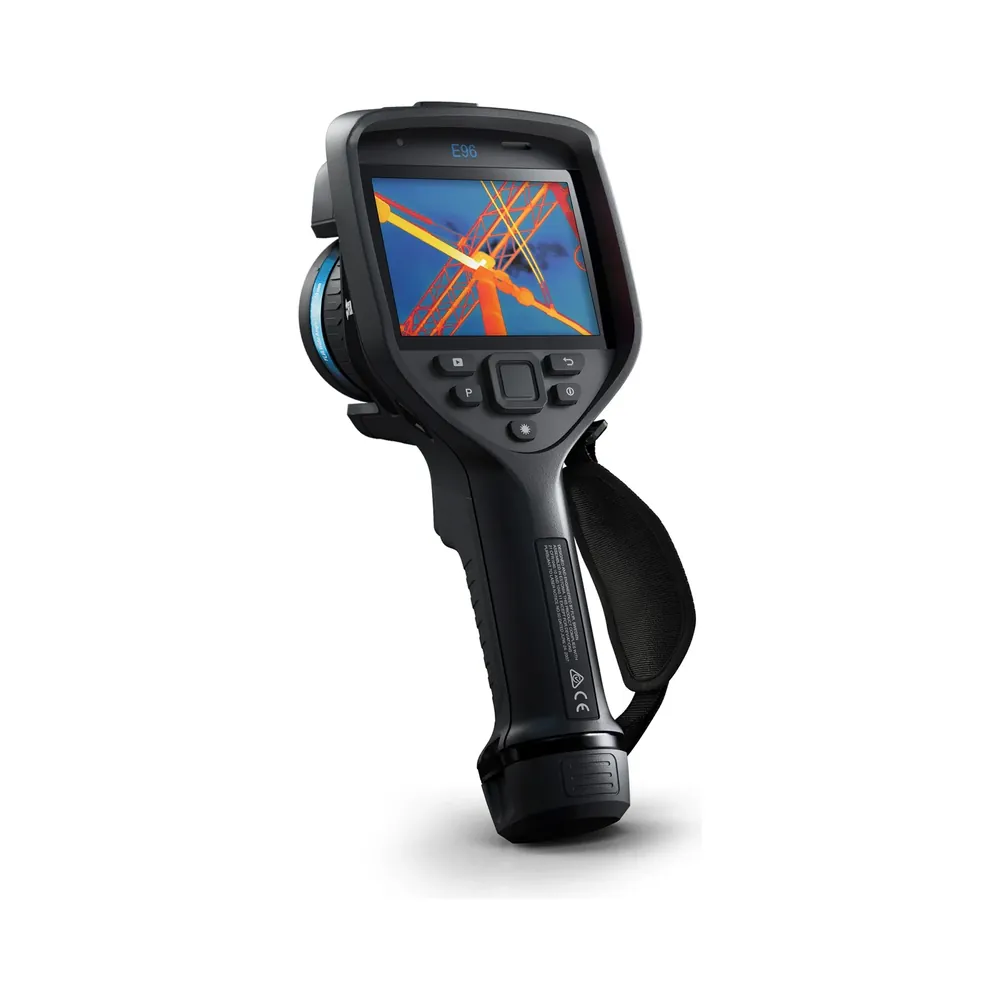

Teledyne FLIR E96 Advanced Thermal Imaging Camera
Quote on request
No online payment · add lines to RFQ BOM
FLIR E96: 640×480; <30–50 mK; ±2 °C/±2%; to 1500 °C ranges; UltraMax. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
±2 °C (±3.6 °F) or ±2% of reading
Display
4 in, 640 × 480 IPS touchscreen LCD with auto-rotation
Type
Advanced pistol-grip thermal imaging camera (FLIR E96 / Exx-Series)
Ir Resolution
640 × 480 pixels (UltraMax available)
Thermal Sensitivity Netd
<30 mK (42°/80°); <40 mK (24°); <50 mK (14°) @ 30 °C
Object Temperature Range
−20 to 120 °C; 0 to 650 °C; 300 to 1500 °C
Fits advanced pistol-grip thermography where you need a Teledyne FLIR E96. Exx-Series camera with 640×480 IR resolution (UltraMax available), NETD under 30/40/50 mK by lens at 30 °C, accuracy ±2 °C or ±2% of reading, object temperature ranges spanning −20 to 120 °C, 0 to 650 °C and 300 to 1500 °C, on a 7.5–14 µm 12 µm-pitch microbolometer.
Key advantages
- IR — 640 × 480 (UltraMax available)
- NETD — <30–50 mK by lens @ 30 °C
- Accuracy — ±2 °C or ±2% of reading
- Object T — Ranges to 1500 °C class
- Detector — 7.5–14 µm; 12 µm pitch
Typical applications
- Industrial IR surveys.
- High-temp process inspection.
- Electrical / mechanical predictive maint.
Selection guide
- Lens set
- Temperature range package
- Accessories
Common mistakes
- Wrong FOV.
- Emissivity errors.
- Exceeding range package.
When to RFQ / what to tell us
- Lenses/kit.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 47946 |
| Brand | Teledyne FLIR |
| Model | FLIR E96 |
| Product type | Thermal Camera |
| Type | Advanced pistol-grip thermal imaging camera (FLIR E96 / Exx-Series) |
| IR resolution | 640 × 480 pixels (UltraMax available) |
| Thermal sensitivity NETD | <30 mK (42°/80°); <40 mK (24°); <50 mK (14°) @ 30 °C |
| Accuracy | ±2 °C (±3.6 °F) or ±2% of reading |
| Object temperature range | −20 to 120 °C; 0 to 650 °C; 300 to 1500 °C |
| Spectral range | 7.5–14 µm uncooled microbolometer, 12 µm pitch |
Documents
FAQ
Q: Resolution? A: 640×480.
Q: Max object T? A: Up to 1500 °C range package.
Q: What should I send for a quote? A: Lenses/kit, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | ±2 °C (±3.6 °F) or ±2% of reading |
| Display | 4 in, 640 × 480 IPS touchscreen LCD with auto-rotation |
| Type | Advanced pistol-grip thermal imaging camera (FLIR E96 / Exx-Series) |
| Ir Resolution | 640 × 480 pixels (UltraMax available) |
| Thermal Sensitivity Netd | <30 mK (42°/80°); <40 mK (24°); <50 mK (14°) @ 30 °C |
| Object Temperature Range | −20 to 120 °C; 0 to 650 °C; 300 to 1500 °C |
| Spectral Range | 7.5–14 µm uncooled microbolometer, 12 µm pitch |
| Image Frequency | 30 Hz |
| Digital Camera | 5 MP with built-in LED photo/video lamp |
| Focus | Continuous/one-shot LDM, one-shot contrast, manual; laser distance meter |
| Battery | Li-ion; >2.5 h typical @ 25 °C |
| Ingress Protection | IP54 |
| Weight | Approx. 1 kg including battery |
| Interfaces | USB Type-C, Wi-Fi, Bluetooth, DisplayPort; FLIR Ignite / Inspection Route |
