PIE Practical Instrument Electronics

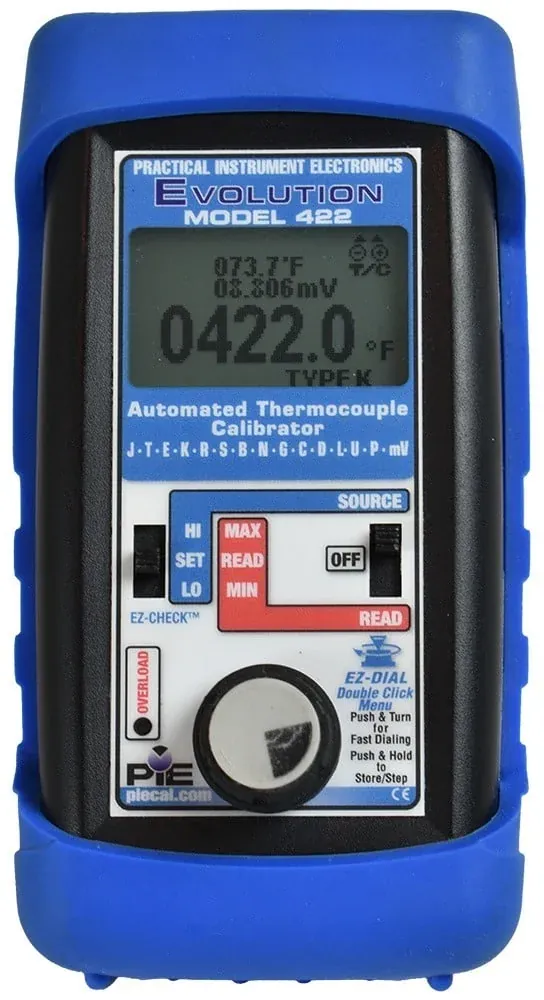

PIE 422 / 422Plus Thermocouple Calibrator
Quote on request
No online payment · add lines to RFQ BOM
14-type TC + mA; ±(0.008%+0.006 mV); leak detect. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Type
Handheld thermocouple / diagnostic milliamp calibrator (PIE 422 / 422Plus)
Thermocouple Types
J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), U (T-DIN), P (Platinel II)
Tc Accuracy
±(0.008% of reading + 0.006 mV); CJC ±0.05 °C NIST-traceable
Mv Range
−13.000 to 80.000 mV
Ma Range
0.000 to 24.000 mA source/read; 2-wire transmitter simulate; 24 V PWRM
Ma Accuracy
≤ ±(0.02% of reading + 0.003 mA)
Fits high-type-count thermocouple and milliamp work where you need a PIE 422/422Plus covering 14 TC types plus mV/mA with ±(0.008%+0.006 mV) TC accuracy and patented ground-leak diagnostics on 422Plus.
Key advantages
- TC types — J/K/T/E/R/S/B/N/G/C/D/L/U/P
- TC accuracy — ±(0.008% of reading + 0.006 mV); CJC ±0.05 °C class
- mA — 0–24 mA source/read; 2-wire simulate; 24 V PWRM; ≤±(0.02%+0.003 mA)
- Diagnostics — Ground-leak / loop diagnostic (422Plus); HART 250 Ω
- Form — Handheld graphic calibrator
Typical applications
- Multi-type TC calibration routes.
- Loop mA source with TC in one tool.
- Ground-leak troubleshooting (422Plus).
Selection guide
- 422 vs 422Plus — Diagnostics need
- TC set — Exotic types G/C/D
- mA power — 24 V PWRM
- HART resistor — 250 Ω
Common mistakes
- Buying 322 when 14-type count is required.
- Ignoring leak diagnostic on troubled loops.
- Wrong CJC connection.
When to RFQ / what to tell us
- 422 vs 422Plus; leads; quantity; ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 32666 |
| Brand | PIE |
| Model | 422 / 422Plus |
| Product type | Thermocouple / mA Calibrator |
| Type | Handheld thermocouple / diagnostic milliamp calibrator (PIE 422 / 422Plus) |
| Thermocouple types | J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), U (T-DIN), P (Platinel II) |
| TC accuracy | ±(0.008% of reading + 0.006 mV); CJC ±0.05 °C NIST-traceable |
| mV range | −13.000 to 80.000 mV |
| mA range | 0.000 to 24.000 mA source/read; 2-wire transmitter simulate; 24 V PWRM |
| mA accuracy | ≤ ±(0.02% of reading + 0.003 mA) |
| Diagnostics | Patented ground-leak / loop diagnostic (US Patent 7,248,058); HART 250 Ω |
| Size/weight | 5.63 × 3.00 × 1.60 in (143 × 76 × 41 mm); 12.1 oz with boot/batteries |
Documents
FAQ
Q: How many TC types? A: Fourteen types including G/C/D/L/U/P.
Q: 422Plus extra? A: Patented ground-leak / loop diagnostic.
Q: What should I send for a quote? A: Model/accessories, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Type | Handheld thermocouple / diagnostic milliamp calibrator (PIE 422 / 422Plus) |
| Thermocouple Types | J, K, T, E, R, S, B, N, G, C, D, L (J-DIN), U (T-DIN), P (Platinel II) |
| Tc Accuracy | ±(0.008% of reading + 0.006 mV); CJC ±0.05 °C NIST-traceable |
| Mv Range | −13.000 to 80.000 mV |
| Ma Range | 0.000 to 24.000 mA source/read; 2-wire transmitter simulate; 24 V PWRM |
| Ma Accuracy | ≤ ±(0.02% of reading + 0.003 mA) |
| Diagnostics | Patented ground-leak / loop diagnostic (US Patent 7,248,058); HART 250 Ω |
| Size Weight | 5.63 × 3.00 × 1.60 in (143 × 76 × 41 mm); 12.1 oz with boot/batteries |
| Power | 4× AA alkaline; ~25 h thermocouple / ~8 h milliamp |
| Document | PIE 422Plus-9001 Rev A datasheet |
