PIE Practical Instrument Electronics

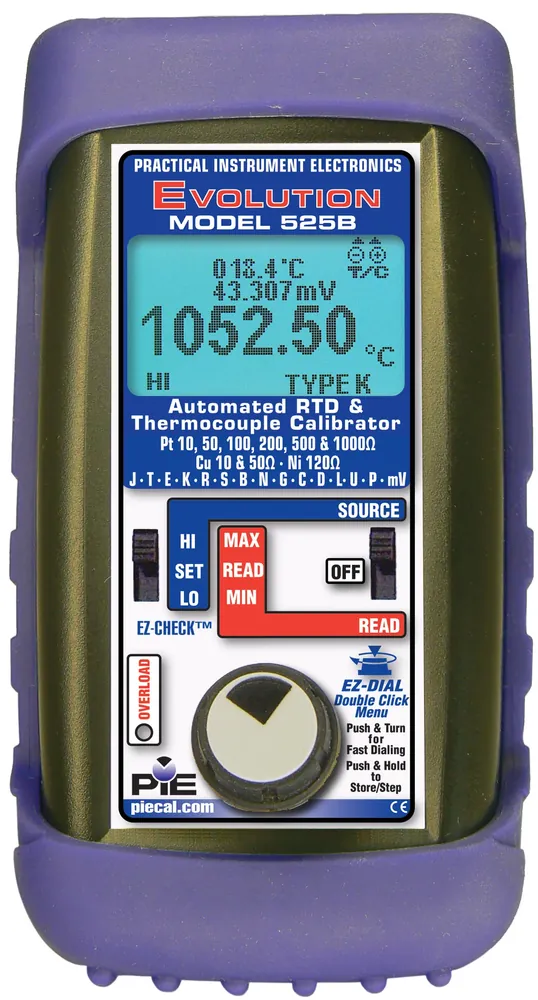

PIE 525B Thermocouple & RTD Calibrator
Quote on request
No online payment · add lines to RFQ BOM
PIE 525B: TC JKT… + mV; RTD Pt/Cu/Ni; 0.01° selectable. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Type
PIE 525B handheld automated thermocouple and RTD calibrator (source and measure)
Thermocouple Types
J K T E R S B N G C D L (J-DIN) U (T-DIN) P (Platinel II); mV -13.0000 to +80.0000
Rtd Types
Pt 10/50/100/200/500/1000 Ohm (3850); Pt100 (3902/3916/3926); Cu 10/50 Ohm; Ni 120 Ohm; ohms 0-400 / 0-4000
Resolution
0.1 or 0.01 degree F/C selectable
Tc Source Accuracy
+/-(0.008% of setting + 0.006 mV); cold junction +/-0.05 C NIST-traceable thermistor
Rtd Detection
Patented automatic 2/3/4-wire detection; measures excitation current
Fits automated temperature instrument calibration where you need a PIE 525B—handheld calibrator that sources and measures thermocouples (J K T E R S B N G C D L U P) plus mV, and RTDs including Pt, Cu and Ni types with 0.1 or 0.01 degree selectable resolution.
Key advantages
- TC types — J K T E R S B N G C D L U P; mV −13 to +80
- RTD — Pt 10–1000 Ω class; Cu; Ni 120; ohms ranges
- Resolution — 0.1 or 0.01 °F/°C selectable
- Mode — Source and measure
- Platform — PIE 525B automated calibrator
Typical applications
- TC transmitter cal.
- RTD loop checks.
- Field temperature instrument service.
Selection guide
- TC vs RTD primary
- Lead sets
- CJ compensation
Common mistakes
- Wrong TC wire type.
- Ignoring CJ.
- RTD 2-wire vs 3/4-wire mix-up.
When to RFQ / what to tell us
- Leads, options.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 41800 |
| Brand | PIE Practical Instrument Electronics |
| Model | 525B Thermocouple & RTD Calibrator |
| Product type | Temperature Calibrator |
| Type | PIE 525B handheld automated thermocouple and RTD calibrator (source and measure) |
| Thermocouple types | J K T E R S B N G C D L (J-DIN) U (T-DIN) P (Platinel II); mV -13.0000 to +80.0000 |
| RTD types | Pt 10/50/100/200/500/1000 Ohm (3850); Pt100 (3902/3916/3926); Cu 10/50 Ohm; Ni 120 Ohm; ohms 0-400 / 0-4000 |
| Resolution | 0.1 or 0.01 degree F/C selectable |
Documents
FAQ
Q: TC types? A: J K T E R S B N G C D L U P plus mV.
Q: Resolution? A: 0.1 or 0.01 degree selectable.
Q: What should I send for a quote? A: Leads/quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Type | PIE 525B handheld automated thermocouple and RTD calibrator (source and measure) |
| Thermocouple Types | J K T E R S B N G C D L (J-DIN) U (T-DIN) P (Platinel II); mV -13.0000 to +80.0000 |
| Rtd Types | Pt 10/50/100/200/500/1000 Ohm (3850); Pt100 (3902/3916/3926); Cu 10/50 Ohm; Ni 120 Ohm; ohms 0-400 / 0-4000 |
| Resolution | 0.1 or 0.01 degree F/C selectable |
| Tc Source Accuracy | +/-(0.008% of setting + 0.006 mV); cold junction +/-0.05 C NIST-traceable thermistor |
| Rtd Detection | Patented automatic 2/3/4-wire detection; measures excitation current |
| Operating Temperature | -20 to 60 C (-5 to 140 F); storage -30 to 60 C |
| Power | Four AA alkaline batteries; rubber boot, tilt stand, backlit display |
| Stepping | EZ-CHECK three stored values; auto step 2/3/5/11 or ramp; step times 5-60 s |
| Document | PIE 525B datasheet 525B-9001 Rev C + operating instructions 525B-9002 Rev C (piecal.com) |
