Endress+Hauser

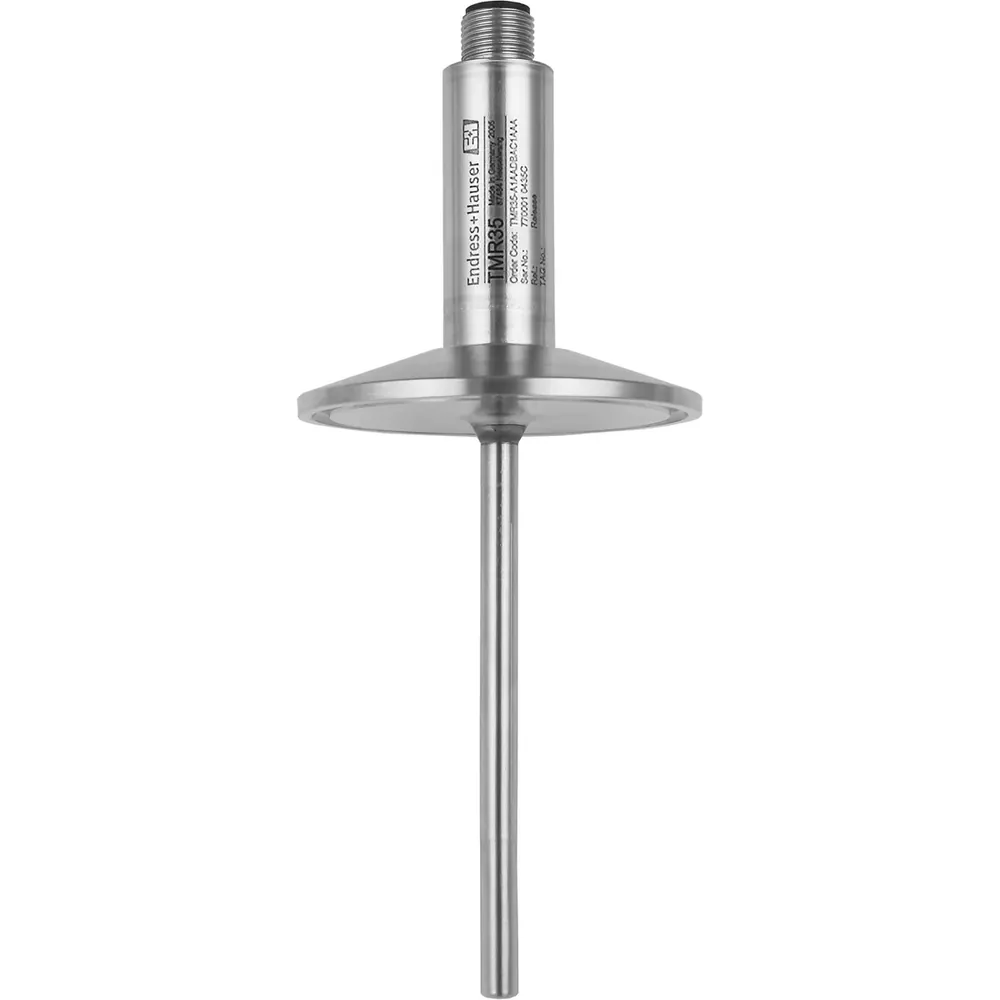

Endress+Hauser Easytemp TMR35 Hygienic Compact RTD Thermometer
Quote on request
No online payment · add lines to RFQ BOM
E+H Easytemp TMR35: hygienic Pt100 Class A; −50…+150 °C; t90=2 s; IP69K; 100 bar. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
−50 to +150 °C (−58 to +302 °F); with extension neck up to +200 °C (+392 °F)
Accuracy
Class A per IEC 60751
Electrical connection
M12 4-pin connector
Protection
IP69K
Measuring Principle
Pt100 thin-film RTD per IEC 60751, Class A, 4-wire
Response Time
t50 = 1 s; t90 = 2 s (typical)
Fits compact hygienic temperature where you need an Endress+Hauser Easytemp TMR35. Pt100 thin-film Class A 4-wire RTD spanning −50 to +150 °C (to +200 °C with extension neck), typical t50 = 1 s / t90 = 2 s, process pressure to 100 bar at 20 °C and IP69K protection.
Key advantages
- Sensor — Pt100 Class A, 4-wire
- Range — −50…+150 °C; +200 °C with neck
- Response — t50 = 1 s; t90 = 2 s typical
- Pressure — Up to 100 bar at 20 °C
- IP — IP69K
Typical applications
- Hygienic compact RTD.
- Food process temperature.
- Washdown tank/pipe points.
Selection guide
- Neck for >150 °C
- Hygienic connection
- Transmitter option
Common mistakes
- Exceeding +150 °C without neck.
- Wrong hygienic fitting.
- Ignoring pressure derate with T.
When to RFQ / what to tell us
- Length/connection.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 47185 |
| Brand | Endress+Hauser |
| Model | Easytemp TMR35 Hygienic Thermometer |
| Product type | Hygienic Thermometer |
| Measuring principle | Pt100 thin-film RTD per IEC 60751, Class A, 4-wire |
| Measuring range | −50 to +150 °C (−58 to +302 °F); with extension neck up to +200 °C (+392 °F) |
| Accuracy | Class A per IEC 60751 |
| Response time | t50 = 1 s; t90 = 2 s (typical) |
| Process pressure | Up to 100 bar (1450 psi) at 20 °C |
| IP rating | IP69K |
Documents
FAQ
Q: t90? A: 2 s typical.
Q: IP? A: IP69K.
Q: What should I send for a quote? A: Length/connection, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | −50 to +150 °C (−58 to +302 °F); with extension neck up to +200 °C (+392 °F) |
| Accuracy | Class A per IEC 60751 |
| Electrical connection | M12 4-pin connector |
| Protection | IP69K |
| Measuring Principle | Pt100 thin-film RTD per IEC 60751, Class A, 4-wire |
| Response Time | t50 = 1 s; t90 = 2 s (typical) |
| Process Pressure | Up to 100 bar (1450 psi) at 20 °C |
| Immersion Length | Variable installed lengths 40 to 600 mm (1.57 to 23.6 in) |
| Protection Tube Od | 3.0 mm or 6.0 mm |
| Material | 1.4404 (316L) stainless steel; entirely stainless construction |
| Surface Finish | Ra 0.4 µm or 0.8 µm |
| Hygiene Approvals | 3-A, EHEDG; ASME BPE / FDA / EC 1935/2004 stated on TI |
| Other Approvals | Marine (DNV GL); NAMUR NE21/NE43 failure information |
