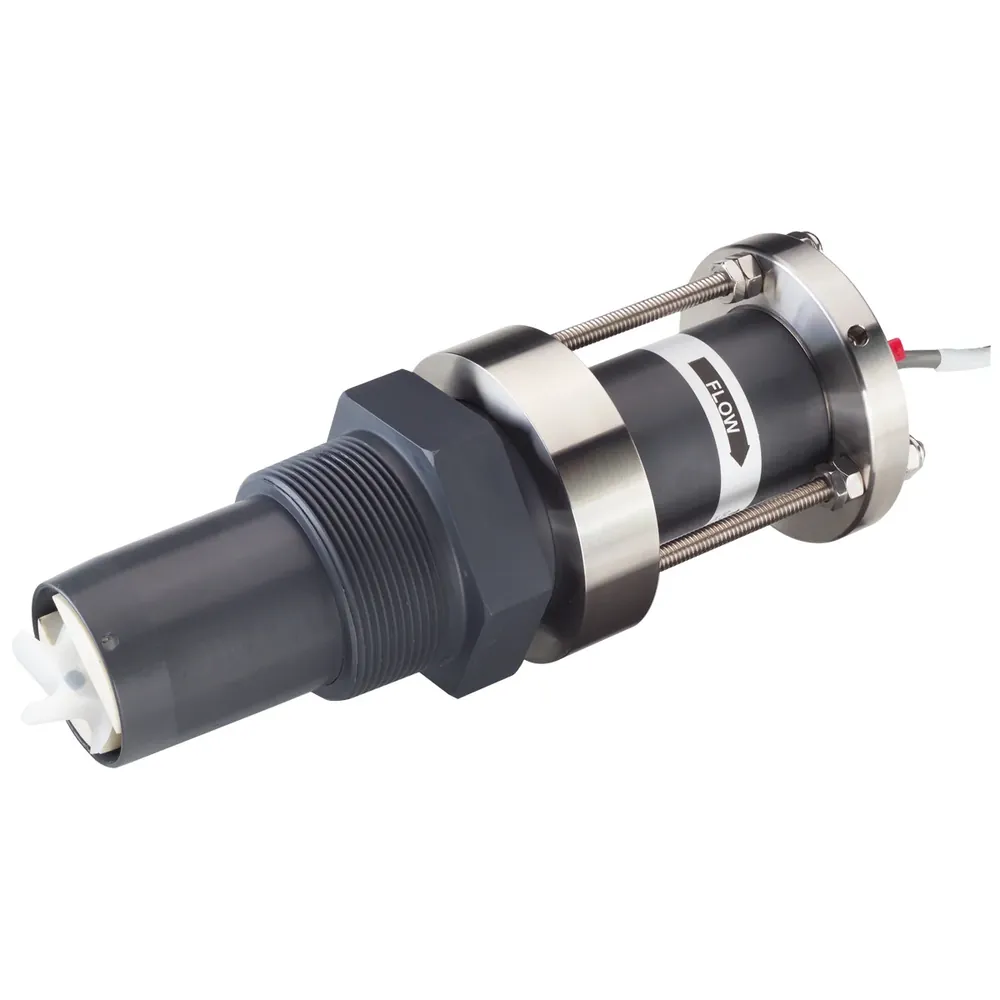

Badger Meter Series 220 Flow Sensors
Quote on request
No online payment · add lines to RFQ BOM
Badger Series 220: brass insertion impeller; 3–40+ in; ±1% FS; 0.5–30 ft/s. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
+/-1.0% of full scale over recommended design flow range
Type
Badger Meter Data Industrial Series 220BR brass insertion impeller flow sensor
Pipe Sizes
3 in to more than 40 in via 2 in NPT saddle / Threadolet
Flow Range
Recommended 0.5-30 ft/s (0.15-9.1 m/s); initial detection below about 0.3 ft/s
Repeatability
+/-0.3% of full scale
Linearity
+/-0.2% of full scale
Fits large-pipe liquid flow sensing where you need a Badger Meter Series 220. Brass insertion impeller sensor for pipes from 3 in to more than 40 in via 2 in NPT saddle/Threadolet, recommended 0.5–30 ft/s, ±1.0% of full scale accuracy, ±0.3% repeatability and ±0.2% linearity over the design flow range.
Key advantages
- Type — Brass insertion impeller
- Pipe — 3 in to >40 in
- Flow — Recommended 0.5–30 ft/s
- Accuracy — ±1.0% of full scale
- Repeatability — ±0.3% of full scale
Typical applications
- Large water lines.
- HVAC / process impeller.
- Saddle-mount flow sensing.
Selection guide
- Pipe OD / saddle
- Output type
- Insertion depth
Common mistakes
- Velocity outside band.
- Wrong saddle size.
- Debris fouling impeller.
When to RFQ / what to tell us
- Pipe size/output.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 47324 |
| Brand | Badger Meter |
| Model | Series 220 Flow Sensors |
| Product type | Flow Sensor |
| Type | Badger Meter Data Industrial Series 220BR brass insertion impeller flow sensor |
| Pipe sizes | 3 in to more than 40 in via 2 in NPT saddle / Threadolet |
| Flow range | Recommended 0.5-30 ft/s (0.15-9.1 m/s); initial detection below about 0.3 ft/s |
| Accuracy | +/-1.0% of full scale over recommended design flow range |
| Repeatability | +/-0.3% of full scale |
| Linearity | +/-0.2% of full scale |
Documents
FAQ
Q: Accuracy? A: ±1.0% of full scale.
Q: Pipe sizes? A: 3 in to more than 40 in.
Q: What should I send for a quote? A: Pipe size/output, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | +/-1.0% of full scale over recommended design flow range |
| Type | Badger Meter Data Industrial Series 220BR brass insertion impeller flow sensor |
| Pipe Sizes | 3 in to more than 40 in via 2 in NPT saddle / Threadolet |
| Flow Range | Recommended 0.5-30 ft/s (0.15-9.1 m/s); initial detection below about 0.3 ft/s |
| Repeatability | +/-0.3% of full scale |
| Linearity | +/-0.2% of full scale |
| Temperature Rating | Standard 221 F (105 C) continuous; high-temp option to 285 F (141 C) continuous |
| Pressure Rating | 400 psi at 100 F; 325 psi at 300 F (high-temp version) |
| Cable | 20 ft Belden 9320 2-conductor shielded standard |
| Wetted | Admiralty brass sleeve UNS C44300; lead-free brass hex adapter C89833 |
| Document | Badger Meter Series 220BR Insertion Style Flow Sensors Product Data Sheet (widen sufjls7axf) |
