Flomec GPI

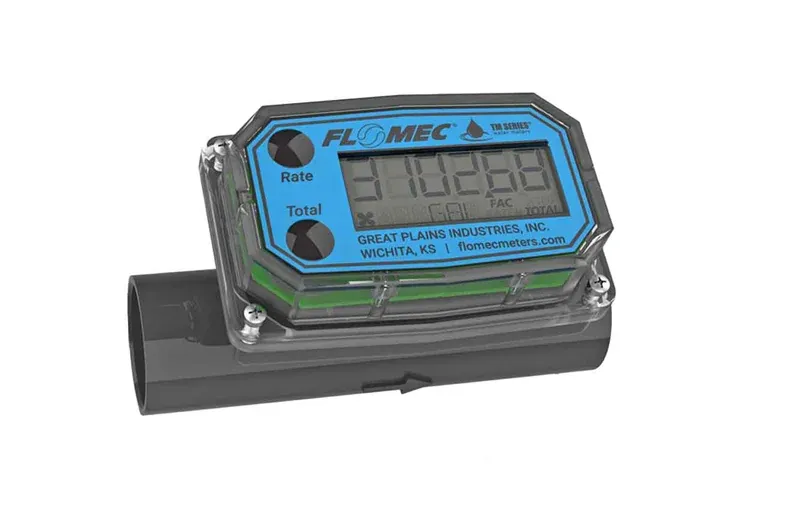

Flomec GPI TM Series Water Meter with Q9 Display
Quote on request
No online payment · add lines to RFQ BOM
FLOMEC/GPI TM Series: PVC turbine; ±3% rdg; ½–4 in; Q9 rate/batch/total. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
±3.0% of reading
Display
Q9 two-button computer: rate, batch, and cumulative totals
Approvals
N.I.S.T. calibration report available
Type
FLOMEC/GPI TM Series PVC turbine water meter with Q9 local display
Sizes Flow
½–4 in; approx. 1–600 GPM depending on size (e.g. 1 in: 5–50 GPM class)
Pressure
225 psi (15.3 bar) @ 73 °F (23 °C) for spigot/NPT constructions
Fits PVC turbine water metering where you need a FLOMEC/GPI TM Series with Q9. Turbine water meter spanning about ½–4 in sizes with flows roughly 1–600 GPM depending on size, ±3.0% of reading accuracy, 225 psi at 73 °F for spigot/NPT constructions, operating temperature +32 to +140 °F, and Q9 two-button computer for rate, batch and cumulative totals.
Key advantages
- Accuracy — ±3.0% of reading
- Sizes — ½–4 in; ~1–600 GPM class
- Pressure — 225 psi @ 73 °F (stated)
- Display — Q9 rate / batch / totals
- Temperature — +32 to +140 °F
Typical applications
- Water batching.
- Irrigation metering.
- Utility PVC turbine lines.
Selection guide
- Size / flow
- End connection
- Q9 options
Common mistakes
- Size undersized for peak GPM.
- Exceeding 225 psi.
- Hot water above 140 °F.
When to RFQ / what to tell us
- Size/connection.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 47848 |
| Brand | Flomec GPI |
| Model | TM Series Water Meter with Q9 |
| Product type | Water Meter |
| Type | FLOMEC/GPI TM Series PVC turbine water meter with Q9 local display |
| Accuracy | ±3.0% of reading |
| Sizes flow | ½–4 in; approx. 1–600 GPM depending on size (e.g. 1 in: 5–50 GPM class) |
| Pressure | 225 psi (15.3 bar) @ 73 °F (23 °C) for spigot/NPT constructions |
| Operating temperature | +32 to +140 °F (0 to +60 °C) |
| Display | Q9 two-button computer: rate, batch, and cumulative totals |
Documents
FAQ
Q: Accuracy? A: ±3.0% of reading.
Q: Pressure? A: 225 psi @ 73 °F (stated).
Q: What should I send for a quote? A: Size/connection, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | ±3.0% of reading |
| Display | Q9 two-button computer: rate, batch, and cumulative totals |
| Approvals | N.I.S.T. calibration report available |
| Type | FLOMEC/GPI TM Series PVC turbine water meter with Q9 local display |
| Sizes Flow | ½–4 in; approx. 1–600 GPM depending on size (e.g. 1 in: 5–50 GPM class) |
| Pressure | 225 psi (15.3 bar) @ 73 °F (23 °C) for spigot/NPT constructions |
| Operating Temperature | +32 to +140 °F (0 to +60 °C) |
| Materials | Schedule 80 PVC housing; acetal rotor; SS shaft/signal generator |
| Outputs Options | Optional pulse access / 4–20 mA modules |
| Media | Clean water processing and irrigation |
