Badger Meter

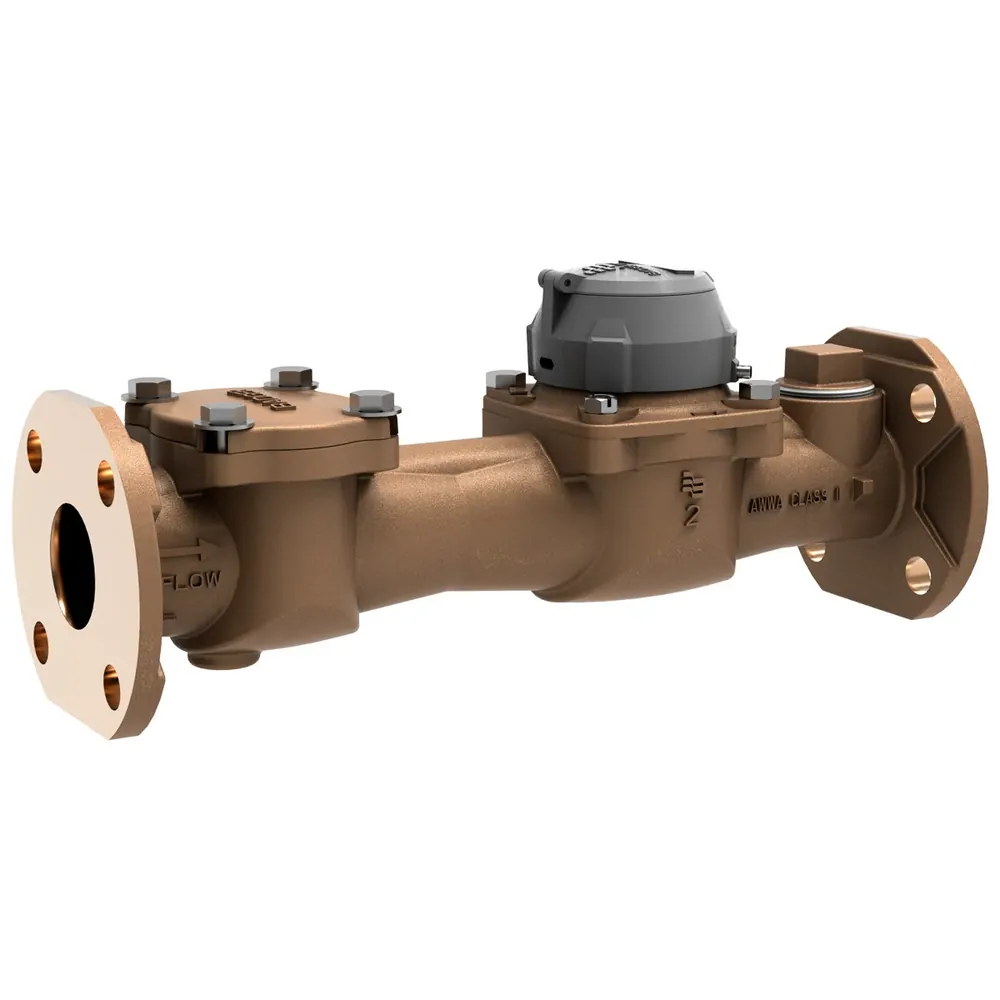

Badger Meter Recordall Turbo Series Flow Meters
Quote on request
No online payment · add lines to RFQ BOM
Badger Recordall Turbo: turbine 1-1/2–12 in; ~2.5–8800 gpm; 150 psi; to 120 °F. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Product Family
Recordall Turbo Series direct-coupled turbine meters (Models 160–6200)
Line Sizes
1-1/2 in. to 12 in. (40–300 mm)
Flow Range
Typical operating about 2.5–8,800 gpm (0.6–1,998 m³/h) across sizes
Max Operating Pressure
150 psi (10 bar)
Temperature
Up to 120 °F (49 °C) cold-water service
Accuracy Standard
Meets/exceeds AWWA C701 Class II; exceptional registration across low/normal/max continuous flows
Fits direct-coupled turbine water metering where you need a Badger Meter Recordall Turbo Series. Turbine meters Models 160–6200 in line sizes 1-1/2 in to 12 in (40–300 mm), typical operating about 2.5–8,800 gpm across sizes, max operating pressure 150 psi (10 bar), and cold-water service up to 120 °F (49 °C).
Key advantages
- Sizes — 1-1/2 to 12 in
- Flow — ~2.5–8,800 gpm across sizes
- Pressure — 150 psi (10 bar)
- Temperature — To 120 °F cold water
- Family — Models 160–6200
Typical applications
- Municipal turbine metering.
- Large cold-water lines.
- Building / industrial water.
Selection guide
- Line size / model
- Register / endpoint
- Flanges
Common mistakes
- Hot water above 120 °F.
- Pressure above 150 psi.
- Wrong model for gpm.
When to RFQ / what to tell us
- Size/model/register.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 48932 |
| Brand | Badger Meter |
| Model | Recordall Turbo Series Flow Meters |
| Product type | Flow Meter |
| Product family | Recordall Turbo Series direct-coupled turbine meters (Models 160–6200) |
| Line sizes | 1-1/2 in. to 12 in. (40–300 mm) |
| Flow range | Typical operating about 2.5–8,800 gpm (0.6–1,998 m³/h) across sizes |
| Max operating pressure | 150 psi (10 bar) |
| Temperature | Up to 120 °F (49 °C) cold-water service |
Documents
FAQ
Q: Max pressure? A: 150 psi (10 bar).
Q: Sizes? A: 1-1/2 to 12 in.
Q: What should I send for a quote? A: Size/model/register, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Product Family | Recordall Turbo Series direct-coupled turbine meters (Models 160–6200) |
| Line Sizes | 1-1/2 in. to 12 in. (40–300 mm) |
| Flow Range | Typical operating about 2.5–8,800 gpm (0.6–1,998 m³/h) across sizes |
| Max Operating Pressure | 150 psi (10 bar) |
| Temperature | Up to 120 °F (49 °C) cold-water service |
| Accuracy Standard | Meets/exceeds AWWA C701 Class II; exceptional registration across low/normal/max continuous flows |
| Technology | Floating-rotor turbine; direct magnetic drive to sealed register/encoder |
| Materials | Lead-free bronze alloy (1-1/2–10 in.); cast iron 12 in.; NSF/ANSI/CAN 61 & 372 |
| Strainer | Integral strainer standard on 1-1/2 in.; optional 2–4 in.; external strainers 2–12 in. |
| Reading Systems | Compatible with Badger Meter AMR/AMI and approved reading technologies |
| Applications | Cold water commercial/industrial: hotels, apartments, irrigation, process plants |
| Document | RTS-DS-00320-EN-11 (August 2026) |
