Panametrics

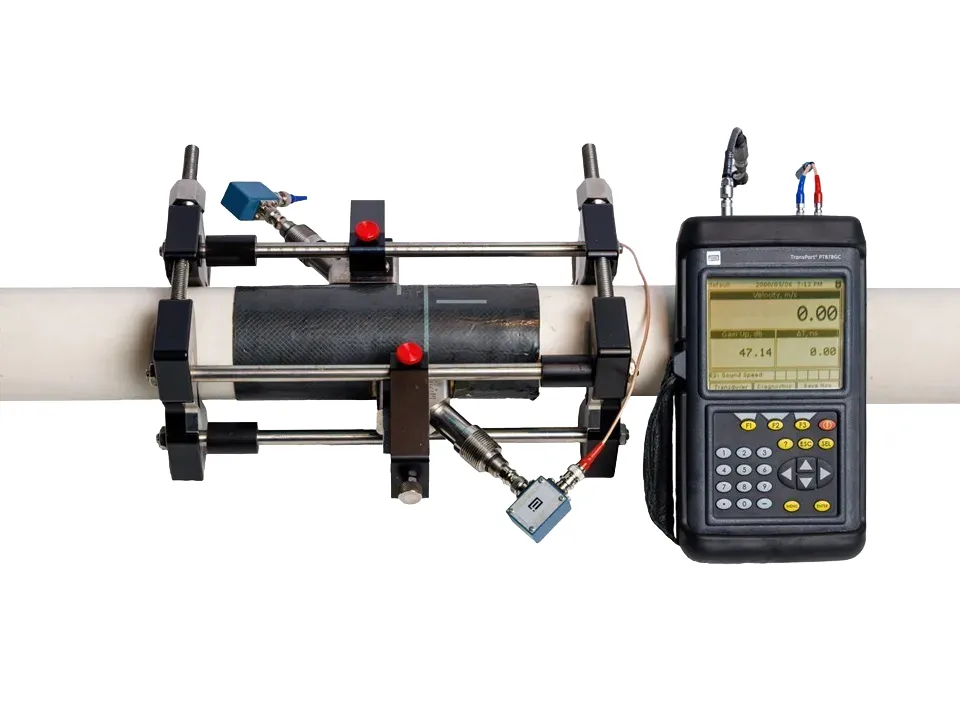

Panametrics TransPort PT878GC Gas Flow Meter
Quote on request
No online payment · add lines to RFQ BOM
Portable clamp-on gas ultrasonic; 0.75–24 in; IP67. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
Velocity: ±2–5% typical (≤6 in); ±1–2% typical (>6 in)
Display
240 × 200 pixel backlit LCD graphic; 25-key rubberized keypad
Measurement Principle
Patented Correlation Transit-Time ultrasonic (clamp-on gas)
Fluid Types
Acoustically conductive gases: natural gas, compressed air, fuel, erosive/corrosive/toxic, high-purity, air-separation
Pipe Sizes
0.75–12 in with PT878GC-01; 4–24 in and larger with PT878GC-02
Pipe Materials
All metals and plastics; no lined pipes
Fits portable clamp-on gas flow surveys where you need a TransPort PT878GC correlation transit-time meter for acoustically conductive gases on metal or plastic pipes.
Key advantages
- Principle — Patented Correlation Transit-Time ultrasonic (clamp-on gas)
- Pipes — 0.75–12 in (PT878GC-01); 4–24 in and larger (PT878GC-02); metals/plastics; no lined pipes
- Performance — Velocity ±2–5% typical (≤6 in); ±1–2% (>6 in); rangeability 150:1
- Portable — IP67; rechargeable ~8 h; 240×200 graphic LCD
- I/O / log — 0/4–20 mA; pulse/frequency; two 4–20 mA T/P inputs; >100,000 log points
Typical applications
- Natural gas, compressed air, and fuel gas surveys.
- Temporary clamp-on checks without cutting pipe.
- Multi-site logging (32 site locations).
Selection guide
- Kit — PT878GC-01 vs -02 for pipe size band
- Gas / pressure — Acoustically conductive gases; coupling conditions
- T/P inputs — Use of 4–20 mA temperature/pressure inputs
- Transducers — Match pipe size/material
Common mistakes
- Trying lined pipes — PT878GC datasheet excludes lined pipes.
- Expecting liquid DF868 performance on gas — this is the gas portable.
- Ignoring pipe size kit limits (01 vs 02).
When to RFQ / what to tell us
- Gas, pipe size/material, pressure/temperature.
- 01 vs 02 kit; logging needs.
- Quantity and ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 19502 |
| Brand | Panametrics |
| Model | Panametrics TransPort PT878GC Gas Flow Meter |
| Product type | Ultrasonic Gas Flow Meter |
| Measurement principle | Patented Correlation Transit-Time ultrasonic (clamp-on gas) |
| Fluid types | Acoustically conductive gases: natural gas, compressed air, fuel, erosive/corrosive/toxic, high-purity, air-separation |
| Pipe sizes | 0.75–12 in with PT878GC-01; 4–24 in and larger with PT878GC-02 |
| Pipe materials | All metals and plastics; no lined pipes |
| Accuracy | Velocity: ±2–5% typical (≤6 in); ±1–2% typical (>6 in) |
| Repeatability | ±0.2% to 0.5% of reading |
| Rangeability | 150:1 overall |
| Enclosure | Submersible IP67; 9.4 × 5.5 × 1.5 in; weight 3 lb (1.36 kg) |
| Battery life | Rechargeable; 8 hours continuous; charger 100–250 VAC 50/60 Hz |
| Outputs | One 0/4–20 mA; one pulse or frequency; two 4–20 mA inputs for T/P; IR digital port |
| Data logging | Over 100,000 flow data points; 32 site locations |
Documents
FAQ
Q: Liquid or gas? A: Clamp-on gas ultrasonic (TransPort PT878GC).
Q: Pipe size coverage? A: 0.75–12 in with -01; 4–24 in and larger with -02.
Q: What should I send for a quote? A: Gas/pipe/T/P, kit, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | Velocity: ±2–5% typical (≤6 in); ±1–2% typical (>6 in) |
| Display | 240 × 200 pixel backlit LCD graphic; 25-key rubberized keypad |
| Measurement Principle | Patented Correlation Transit-Time ultrasonic (clamp-on gas) |
| Fluid Types | Acoustically conductive gases: natural gas, compressed air, fuel, erosive/corrosive/toxic, high-purity, air-separation |
| Pipe Sizes | 0.75–12 in with PT878GC-01; 4–24 in and larger with PT878GC-02 |
| Pipe Materials | All metals and plastics; no lined pipes |
| Repeatability | ±0.2% to 0.5% of reading |
| Rangeability | 150:1 overall |
| Enclosure | Submersible IP67; 9.4 × 5.5 × 1.5 in; weight 3 lb (1.36 kg) |
| Battery Life | Rechargeable; 8 hours continuous; charger 100–250 VAC 50/60 Hz |
| Outputs | One 0/4–20 mA; one pulse or frequency; two 4–20 mA inputs for T/P; IR digital port |
| Data Logging | Over 100,000 flow data points; 32 site locations |
| Operating Temperature | –4 to 131 °F (–20 to 55 °C) |
| Transducer Temperature | Standard –40 to 266 °F (–40 to 130 °C); optional to 446 °F (230 °C) |
| Measurement Parameters | Standard/actual volumetric flow, velocity, mass flow; sound speed output |
