CHINO

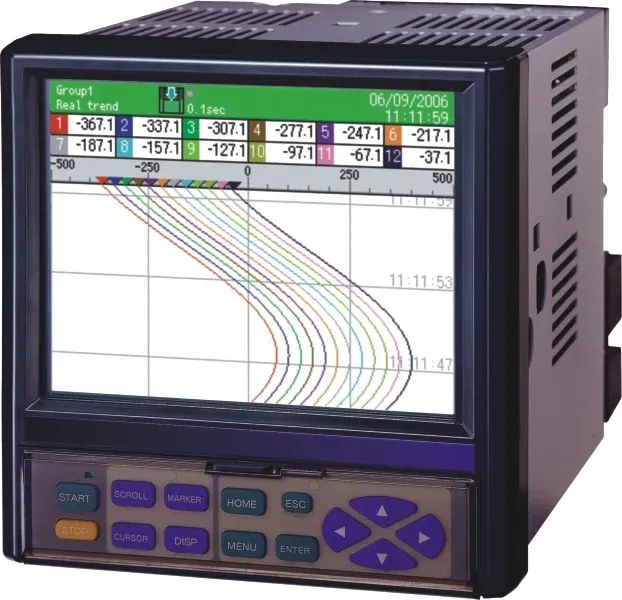

CHINO KR2000 Series Graphic Recorder
Quote on request
No online payment · add lines to RFQ BOM
Paperless recorder; 5.6 in TFT; 6/12 ch; ±0.1% span. RFQ + selection help.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Accuracy
+/-0.1% of span; channel-to-channel withstand 1000 V AC
Display
5.6 inch TFT color LCD; real-time/historical trend, bar-graph, data, dual-trend screens
Type
CHINO KR2000 series network-compatible paperless graphic recorder (144 x 144 mm)
Channels Sampling
6 or 12 universal inputs; 100 ms or 1 s sampling models (KR2160/KR2120/KR2161/KR2121)
Inputs
Universal DC voltage, thermocouple, RTD (Pt100/JPt100 and others per PSE-353A)
Memory
Internal memory plus CF card slot up to 2 GB; schedule and trigger event logging
Fits network paperless recording where you need a CHINO KR2000 144×144 mm recorder with a 5.6-inch TFT, 6 or 12 universal inputs, ±0.1% of span accuracy, and CF-card/network options.
Key advantages
- Display — 5.6 in TFT color; trend/bar/data/dual-trend screens
- Channels — 6 or 12 universal inputs; 100 ms or 1 s sampling models
- Accuracy — ±0.1% of span; 1000 V AC channel-to-channel withstand
- Inputs — DC V, TC, RTD (Pt100/JPt100 and others)
- Memory — Internal + CF card to 2 GB; schedule/trigger events
Typical applications
- Multi-channel process trending.
- Paperless batch recording.
- Networked graphic data logging.
Selection guide
- 6 vs 12 channels
- Sampling — 100 ms vs 1 s
- Network options — Per PSE-353A
- CF capacity — Archive needs
Common mistakes
- Undersizing channel count.
- Wrong TC/RTD input type.
- Ignoring CF card lifecycle.
When to RFQ / what to tell us
- Channel/sampling model, network options.
- Quantity and ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 33081 |
| Brand | CHINO |
| Model | KR2000 Series Graphic Recorder |
| Product type | Graphic Recorder |
| Type | CHINO KR2000 series network-compatible paperless graphic recorder (144 x 144 mm) |
| Display | 5.6 inch TFT color LCD; real-time/historical trend, bar-graph, data, dual-trend screens |
| Channels/sampling | 6 or 12 universal inputs; 100 ms or 1 s sampling models (KR2160/KR2120/KR2161/KR2121) |
| Accuracy | +/-0.1% of span; channel-to-channel withstand 1000 V AC |
| Inputs | Universal DC voltage, thermocouple, RTD (Pt100/JPt100 and others per PSE-353A) |
| Memory | Internal memory plus CF card slot up to 2 GB; schedule and trigger event logging |
Documents
FAQ
Q: Channels? A: 6 or 12 universal inputs by model.
Q: Accuracy? A: ±0.1% of span.
Q: What should I send for a quote? A: Model/options, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Accuracy | +/-0.1% of span; channel-to-channel withstand 1000 V AC |
| Display | 5.6 inch TFT color LCD; real-time/historical trend, bar-graph, data, dual-trend screens |
| Type | CHINO KR2000 series network-compatible paperless graphic recorder (144 x 144 mm) |
| Channels Sampling | 6 or 12 universal inputs; 100 ms or 1 s sampling models (KR2160/KR2120/KR2161/KR2121) |
| Inputs | Universal DC voltage, thermocouple, RTD (Pt100/JPt100 and others per PSE-353A) |
| Memory | Internal memory plus CF card slot up to 2 GB; schedule and trigger event logging |
| Network | Ethernet standard; browser remote monitor, FTP server, e-mail alarm notification |
| Front Usb | Front USB for setup and file transfer with a laptop |
| Size | Panel mount W144 x H144 mm paperless recorder form factor |
| Document | CHINO KR2000 Series Graphic Recorder PS sheet PSE-353A (chinoamerica.com) |
