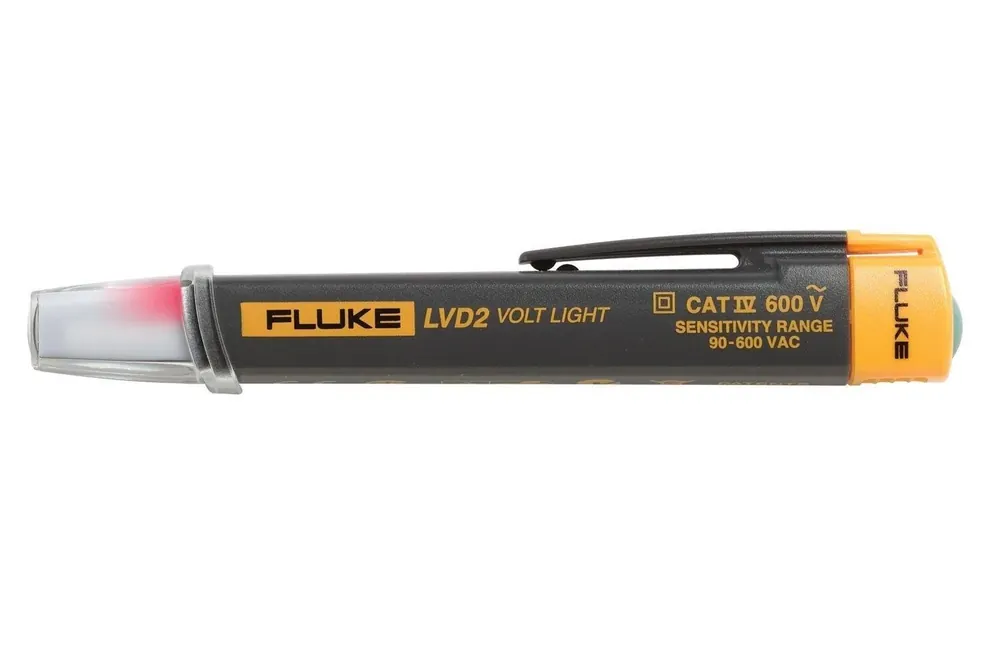

Fluke LVD2 Volt Light

Fits quick non-contact AC presence checks where you need a pen-style detector covering 90–600 V AC with dual-sensitivity tip indication and a built-in white LED flashlight — go/no-go only, not a quantitative meter.

Key advantages

Non-contact 90–600 V AC — pen-style go/no-go detector for quick presence checks.
Dual-sensitivity tip — blue glow ~1–5 in from source; red at source for proximity cues.
Built-in white LED flashlight — ~100,000 h bulb life for dark panels.
CAT IV 600 V — published safety class with 1× AAA power.

Typical applications

Electricians verifying AC presence before opening enclosures.
Quick panel scans where a contact meter is not yet needed.
Service kits that want NCV detection plus a flashlight in one pen.

Selection guide

Detection range — Non-contact AC voltage detection 90–600 V AC.
Indication — Dual-sensitivity go/no-go (not quantitative): blue tip glow when ~1–5 in (2.54–12.7 cm) from source; red at source; ultra-bright white LED flashlight (~100,000 h bulb life).
Supply — 1× AAA battery included.
Ambient — Operating 0…+50 °C.
Approvals — CAT IV 600 V.
Form — Pen-style handheld volt light (NCV detector + LED flashlight).
Data limits — Standalone Technical Data PDF was not publicly linked at harvest; specs taken from fluke.com product page + safety sheet. Certificates and dimensional drawing were not harvested as public assets.

Common mistakes

Using the LVD2 as a quantitative voltmeter — indication is go/no-go only.
Applying it to DC, voltages above 600 V AC, or VFD environments — safety sheet says do not use for those cases.
Skipping the “verify on known live source” check before and after use.
Expecting IP rating, weight, or a full Technical Data PDF from this page — those were not available as public harvest assets; RFQ if you need OEM confirmation of unpublished fields.
Test & measurement instruments · Test & measurement buying guide
Request a Quote · Get selection help

When to RFQ / what to tell us

Confirm AC detection band needed is within 90–600 V AC and CAT IV 600 V is acceptable for the work.
Quantity and whether spare AAA cells / holsters are required.
Ship-to country; note if you need a different Fluke NCV model (e.g. 1AC-II family) for other voltage bands.

Request a Quote · Get selection help

Specs

Spec	Value
SKU	32328
Brand	Fluke
Model	LVD2
Product type	other (non-contact volt light)
Measuring range	Non-contact AC voltage detection 90–600 V AC
Accuracy	Dual-sensitivity go/no-go indication (not quantitative)
Indication / light	Blue tip ~1–5 in from source; red at source; white LED flashlight (~100,000 h)
Supply	1× AAA battery included
Ambient	Operating 0…+50 °C
Approvals	CAT IV 600 V
Mounting / form	Pen-style handheld volt light
Notes	Specs from OEM product page + Safety Sheet PDF. Standalone Technical Data PDF not publicly linked at harvest. Always verify on known live source. Do not use for DC or >600 V / VFD environments per safety sheet.

Documents

Fluke LVD2 safety / product sheet (PDF)

FAQ

Q: Is the LVD2 a quantitative voltage meter? A: No. It is a dual-sensitivity non-contact AC detector with go/no-go indication plus a flashlight.

Q: What voltage and category apply? A: 90–600 V AC detection; CAT IV 600 V per the OEM page / safety sheet fields in our JSON.

Q: Why are some published fields missing? A: Harvest notes: standalone Technical Data PDF was not publicly linked; certificates and dimensional drawing were not public. We only publish fields present in the OEM extract.

Q: What should I send for a quote? A: Quantity, ship-to, and whether another NCV band is needed. Available for systems that use Fluke LVD2 — we do not claim authorized-dealer status.
