Amprobe

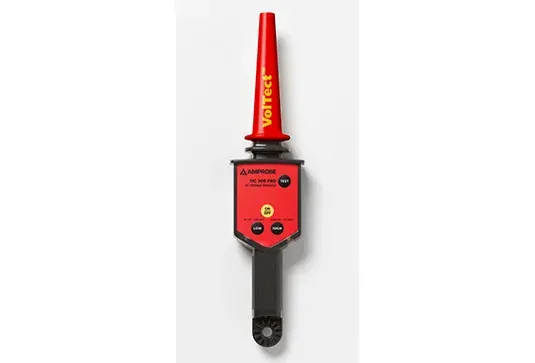

Amprobe TIC 300 PRO High Voltage Detector
Quote on request
No online payment · add lines to RFQ BOM
TIC 300 PRO: 30–1500 VAC low; to 122 kV with TIC 410A; MSHA. RFQ kit.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Type
Amprobe TIC 300 PRO non-contact AC high-voltage detector with VolTect alert
Voltage Ranges
LOW 30 to 1500 VAC; HIGH 1500 VAC to 122 kV AC with TIC 410A hot stick
Indication
Bright flashing LEDs and loud beeper; push-button self-test
Certification
MSHA certified; intrinsically safe design for utility/mine applications
Operating Temperature
0 to 52 C (32 to 125 F); RH < 90%
Environment
Outdoor operation below 2000 m; drop-proof to 1.8 m (6 ft)
Fits non-contact AC high-voltage detection where you need an Amprobe TIC 300 PRO—LOW 30–1500 VAC and HIGH to 122 kV AC with the TIC 410A hot stick, with VolTect alert and MSHA certification.
Key advantages
- Ranges — LOW 30–1500 VAC; HIGH 1500 VAC–122 kV AC with TIC 410A
- Indication — Bright flashing LEDs and loud beeper; push-button self-test
- Certification — MSHA certified; intrinsically safe design for utility/mine use
- Environment — Outdoor below 2000 m; drop-proof to 1.8 m
- Power — 9 V battery class
Typical applications
- Utility line presence checks.
- Mine / MSHA voltage detection.
- Substation approach verification with hot stick.
Selection guide
- Hot stick — TIC 410A for high range
- Spare batteries / case
- Training — Safe approach distances
Common mistakes
- Using without the hot stick on high-range circuits.
- Treating detector as a meter (no quantitative reading).
- Skipping self-test before use.
When to RFQ / what to tell us
- Detector ± TIC 410A stick.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 33492 |
| Brand | Amprobe |
| Model | TIC 300 PRO Voltage Detector |
| Product type | High Voltage Detector |
| Type | Amprobe TIC 300 PRO non-contact AC high-voltage detector with VolTect alert |
| Voltage ranges | LOW 30 to 1500 VAC; HIGH 1500 VAC to 122 kV AC with TIC 410A hot stick |
| Indication | Bright flashing LEDs and loud beeper; push-button self-test |
| Certification | MSHA certified; intrinsically safe design for utility/mine applications |
| Operating temperature | 0 to 52 C (32 to 125 F); RH < 90% |
| Environment | Outdoor operation below 2000 m; drop-proof to 1.8 m (6 ft) |
| Power | 9 V alkaline battery; continuous duty; 50/60 Hz response |
Documents
FAQ
Q: High range? A: To 122 kV AC with TIC 410A hot stick.
Q: MSHA? A: Yes — MSHA certified design.
Q: What should I send for a quote? A: Kit contents, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Type | Amprobe TIC 300 PRO non-contact AC high-voltage detector with VolTect alert |
| Voltage Ranges | LOW 30 to 1500 VAC; HIGH 1500 VAC to 122 kV AC with TIC 410A hot stick |
| Indication | Bright flashing LEDs and loud beeper; push-button self-test |
| Certification | MSHA certified; intrinsically safe design for utility/mine applications |
| Operating Temperature | 0 to 52 C (32 to 125 F); RH < 90% |
| Environment | Outdoor operation below 2000 m; drop-proof to 1.8 m (6 ft) |
| Power | 9 V alkaline battery; continuous duty; 50/60 Hz response |
| Ergonomics | Handle with universal adapter for hot-stick mounting; PPE-glove friendly buttons |
| Included | TIC 300 PRO, hard carrying case, 9 V battery installed |
| Document | Amprobe TIC 300 PRO datasheet 210404-en + product manual (amprobe.com) |
