AEMC

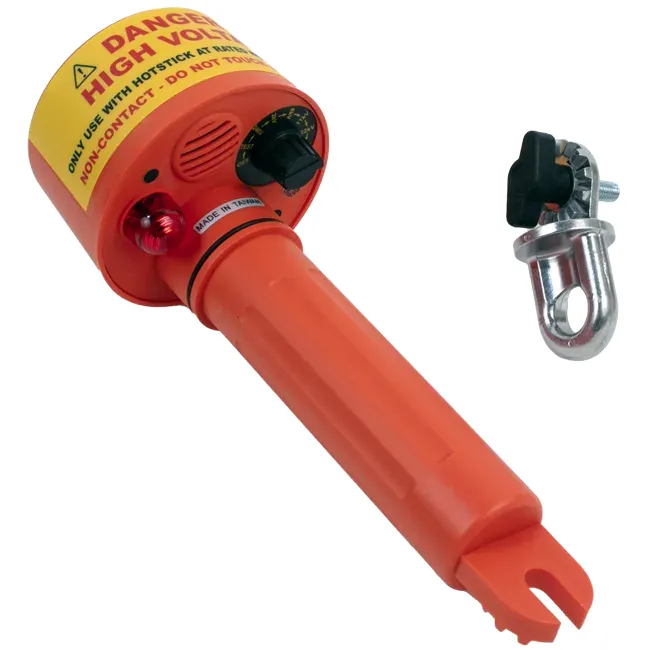

AEMC 275HVD Non-Contact Voltage Detector
Quote on request
No online payment · add lines to RFQ BOM
275HVD: 240 V–275 kV; 8 ranges; IP65; hot-stick shotgun adapter. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Protection
IP65
Approvals
Safety ratings per datasheet
Mounting
Hot-stick adapter compatible for overhead / switchgear approach
Detection Range
Non-contact detection from about 240 V to 275 kV AC
Frequency
40–70 Hz detection band
Principle
Non-contact capacitive coupling high-voltage presence detector
Fits non-contact AC presence checks from distribution to transmission where you need an AEMC 275HVD—eight ranges from 240 V to 275 kV with LED/buzzer alert, IP65 housing, and shotgun hot-stick adapter.
Key advantages
- Ranges — 240 V, 2/6/11/22/33/132/275 kV
- Frequency — 40–70 Hz for 50/60 Hz systems
- Alert — Bright red LED + ~75 dB buzzer
- Detection — Selected range ~10 in / 25 cm typical
- Ingress — IP65; 3× C-cell; self-test
Typical applications
- Line presence before work.
- Substation approach checks with hot stick.
- Outdoor utility voltage detection.
Selection guide
- Hot stick (not included)
- Range setting vs system voltage
- Spare C cells / case
Common mistakes
- Contacting conductors (non-contact only).
- Skipping self-test.
- Using without a properly rated hot stick.
When to RFQ / what to tell us
- Quantity, accessories.
- Ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 34924 |
| Brand | AEMC |
| Model | 275HVD |
| Product type | High Voltage Detector |
| Type | Non-contact AC high-voltage presence detector (AEMC 275HVD) |
| Ranges | 240 V, 2 kV, 6 kV, 11 kV, 22 kV, 33 kV, 132 kV, 275 kV |
| Frequency | 40–70 Hz (50/60 Hz systems) |
| Indication | Bright red LED + audible buzzer (~75 dB @ 1 m) |
| Detection | Selected range ~10 in / 25 cm typical; greater distance at lower settings |
| Power | 3 × C-cell; user-selectable self-test |
| Ingress | IP65 |
Documents
FAQ
Q: Max range? A: 275 kV setting.
Q: Hot stick included? A: Shotgun adapter included; hot stick not supplied.
Q: What should I send for a quote? A: Quantity, accessories, ship-to.
Links
| Parameter | Value |
|---|---|
| Protection | IP65 |
| Approvals | Safety ratings per datasheet |
| Mounting | Hot-stick adapter compatible for overhead / switchgear approach |
| Detection Range | Non-contact detection from about 240 V to 275 kV AC |
| Frequency | 40–70 Hz detection band |
| Principle | Non-contact capacitive coupling high-voltage presence detector |
| Indication | Visual and audible alarm indication of voltage presence |
| Self Test | Manual self-test function before use |
| Catalog Number | Cat. #2131.12 |
| Form Factor | Handheld non-contact high-voltage detector |
| Applications | Verify de-energized lines, switchgear, and overhead conductors before work |
| Special Features | Wide voltage span in one instrument; rugged outdoor IP65 housing |
