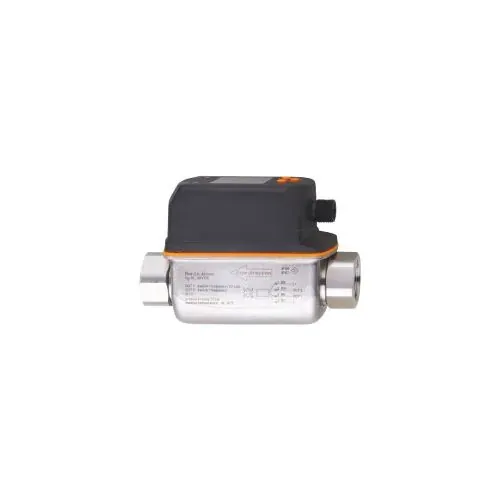

ifm SV Series Vortex Flow Meter
Quote on request
No online payment · add lines to RFQ BOM
ifm SV Series: vortex water flow + temp; DN8–DN20; ±2% MEW; 1:20. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Display
Colour display 1.44" 128×128; 2× yellow LED
Product Family
SV Series vortex flow meters for water-based media (SV4200 exemplar DN8)
Measuring Principle
Vortex (Karman street) with piezoceramic sensor; integrated temperature
Flow Range Sv4200
1…20 l/min (0.06…1.2 m³/h); display 0…24 l/min; dynamics 1:20
Series Ranges
SV4200/4500 1–20 l/min DN8; SV5200/5500 2–40 l/min DN10; SV7200/7500 5–100 l/min DN20
Accuracy Flow
±2% MEW (water); repeatability ±0.5% MEW
Fits water-based vortex flow metering where you need an ifm SV Series meter. Vortex (Karman street) with piezoceramic sensor and integrated temperature; SV4200 exemplar DN8 at 1…20 l/min (0.06…1.2 m³/h), series ranges SV4200/4500 1–20 l/min DN8, SV5200/5500 2–40 DN10, SV7200/7500 5–100 DN20, flow accuracy ±2% MEW (water) and repeatability ±0.5% MEW, dynamics 1:20.
Key advantages
- Principle — Vortex + temperature
- DN8 — 1–20 l/min class
- Series — DN8 / DN10 / DN20
- Accuracy — ±2% MEW (water)
- Dynamics — 1:20
Typical applications
- Cooling water.
- Water-based utility flow.
- Integrated temp + flow.
Selection guide
- DN / range
- Media (water-based)
- I/O variant
Common mistakes
- Non-water media.
- Wrong DN for flow.
- Ignoring MEW basis.
When to RFQ / what to tell us
- DN/variant.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 813384 |
| Brand | ifm efector |
| Model | SV Series |
| Product type | Vortex Flow Meter |
| Product family | SV Series vortex flow meters for water-based media (SV4200 exemplar DN8) |
| Measuring principle | Vortex (Karman street) with piezoceramic sensor; integrated temperature |
| Flow range SV4200 | 1…20 l/min (0.06…1.2 m³/h); display 0…24 l/min; dynamics 1:20 |
| Series ranges | SV4200/4500 1–20 l/min DN8; SV5200/5500 2–40 l/min DN10; SV7200/7500 5–100 l/min DN20 |
| Accuracy flow | ±2% MEW (water); repeatability ±0.5% MEW |
Documents
FAQ
Q: DN8 range? A: 1…20 l/min.
Q: Accuracy? A: ±2% MEW (water).
Q: What should I send for a quote? A: DN/variant, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Display | Colour display 1.44" 128×128; 2× yellow LED |
| Product Family | SV Series vortex flow meters for water-based media (SV4200 exemplar DN8) |
| Measuring Principle | Vortex (Karman street) with piezoceramic sensor; integrated temperature |
| Flow Range Sv4200 | 1…20 l/min (0.06…1.2 m³/h); display 0…24 l/min; dynamics 1:20 |
| Series Ranges | SV4200/4500 1–20 l/min DN8; SV5200/5500 2–40 l/min DN10; SV7200/7500 5–100 l/min DN20 |
| Accuracy Flow | ±2% MEW (water); repeatability ±0.5% MEW |
| Medium Temperature | −10…90 °C; pressure rating 12 bar (to 40 °C) |
| Outputs | 2× digital OUT configurable switching/frequency/IO-Link; PNP/NPN |
| Electrical | 18…30 V DC; <30 mA; M12 A-coded gold-plated; protection class III |
| Io Link | IO-Link 1.1 COM2 38.4 kBaud; DeviceID 484; SIO mode |
| Protection | IP65 / IP67; ambient 0…60 °C (derate with hot media) |
| Materials Wetted | Stainless steel 316L/1.4404; ETFE; PA 6T; PPS; FKM |
