Rotronic
Rotronic HygroLab Water Activity Indicator
Quote on request
No online payment · add lines to RFQ BOM
Rotronic HygroLab: benchtop aw; 4× HC2; AW Quick 4–5 min; ±0.008 aw; 7 in touch. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Display
7 in LCD capacitive touchscreen; trend display; RGB power button
Device Type
Benchtop laboratory water activity indicator
Probe Inputs
4× HC2 station connectors (HC2-AW / HC2A-AW / HC2A-S); simultaneous or asynchronous
Aw Quick
AW Quick typically 4–5 min; normal AW 30–60 min
Accuracy With Hc2 Aw
±0.008 aw / 0.8 %rh / ±0.1 K @ 23 °C ±5 K
Parameters Shown
AW, %RH, °C, °F
Fits laboratory water-activity measurement where you need a Rotronic HygroLab. Benchtop indicator with four HC2 station connectors, AW Quick typically 4–5 minutes (normal AW 30–60 min), accuracy ±0.008 aw / 0.8 %rh / ±0.1 K with HC2-AW at 23 °C ±5 K, and a 7 in capacitive touchscreen.
Key advantages
- Probes — 4× HC2 station connectors
- AW Quick — Typically 4–5 min
- Accuracy — ±0.008 aw with HC2-AW
- Parameters — AW, %RH, °C, °F
- Display — 7 in capacitive touch
Typical applications
- Food aw QC labs.
- Pharma water activity.
- Multi-probe aw stations.
Selection guide
- HC2-AW vs HC2A
- Quick vs normal mode
- Probe count
Common mistakes
- Unstable sample temp.
- Contaminated sensor.
- Ignoring ±5 K accuracy window.
When to RFQ / what to tell us
- Probes/accessories.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 47570 |
| Brand | Rotronic |
| Model | HygroLab |
| Product type | Water Activity Indicator |
| Device type | Benchtop laboratory water activity indicator |
| Probe inputs | 4× HC2 station connectors (HC2-AW / HC2A-AW / HC2A-S); simultaneous or asynchronous |
| AW Quick | AW Quick typically 4–5 min; normal AW 30–60 min |
| Accuracy with HC2-AW | ±0.008 aw / 0.8 %rh / ±0.1 K @ 23 °C ±5 K |
| Parameters shown | AW, %RH, °C, °F |
| Display | 7 in LCD capacitive touchscreen; trend display; RGB power button |
Documents
FAQ
Q: Probe inputs? A: Four HC2 stations.
Q: AW Quick? A: Typically 4–5 min.
Q: What should I send for a quote? A: Probes/accessories, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Display | 7 in LCD capacitive touchscreen; trend display; RGB power button |
| Device Type | Benchtop laboratory water activity indicator |
| Probe Inputs | 4× HC2 station connectors (HC2-AW / HC2A-AW / HC2A-S); simultaneous or asynchronous |
| Aw Quick | AW Quick typically 4–5 min; normal AW 30–60 min |
| Accuracy With Hc2 Aw | ±0.008 aw / 0.8 %rh / ±0.1 K @ 23 °C ±5 K |
| Parameters Shown | AW, %RH, °C, °F |
| Memory Storage | 16 GB; auto report after each measurement; RTC timestamps |
| Connectivity | Ethernet LAN; 2× USB 2.0 + 2× USB 3.0 Type-A; optional USB WiFi stick; remote browser access |
| Power | 12 VDC 2.0 A 24 W max AC adapter (CH/EU/UK + US plugs) |
| Operating Range | 0…40 °C / 0…80 %RH |
| Measurement Interval | 15 s; start-up ~30 s |
| Dimensions Weight | 215 × 146 × 79 mm; 1.02 kg |
| Enclosure | Aluminum / ABS / stainless steel; IP30 |

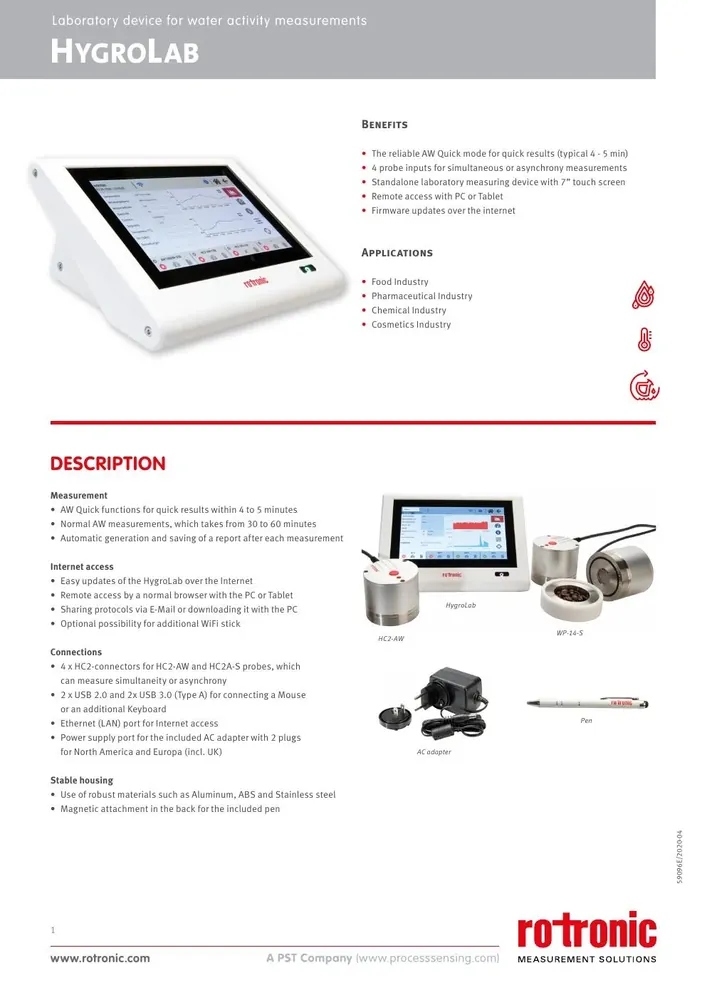

| Document | Rotronic HygroLab datasheet 59096E/2020-04 |
