Georg Fischer / GF Signet

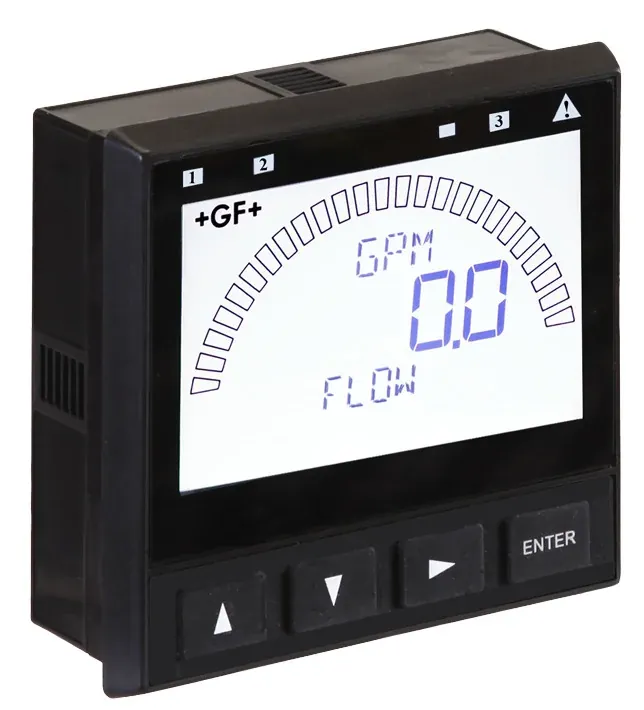

GF Signet 9900 Transmitter
Quote on request
No online payment · add lines to RFQ BOM
9900: single-channel multi-parameter; 4–20 mA; 12–32 VDC; panel/field. RFQ.
Download datasheet PDF
RFQ cart holds BOM lines only. Submit for engineering quote.
Key parameters
Measuring range
Single-channel multiparameter: flow, pH/ORP, conductivity/resistivity, salinity, temperature, pressure, level, DO, 4–20 mA
Accuracy
Sensor-dependent; transmitter displays calibrated engineering units per GF datasheet
Output
One 4–20 mA output standard; optional second analog, relays, batch, Modbus modules
Supply
12–32 V DC (see OEM datasheet power table)
Process connection
Panel mount (¼ DIN) or field mount enclosure versions (3-9900-1P / 3-9900-1)
Wetted parts
N/A (transmitter); sensor wetted parts separate
Fits single-channel multiparameter indication and control where you need a GF Signet 9900—flow, pH/ORP, conductivity/resistivity, pressure, level and related sensor inputs with a standard 4–20 mA output and 12–32 V DC power.
Key advantages
- Parameters — Flow, pH/ORP, conductivity/resistivity, salinity, T, pressure, level class
- Output — One 4–20 mA standard; optional second analog/relays/batch/Modbus
- Power — 12–32 V DC
- Mount — ¼ DIN panel or field enclosure versions
- Form — SmartPro-class single-channel platform
Typical applications
- Single-loop chemical dosing panels.
- Cooling-tower parameter display.
- Skid transmitter with one sensor family.
Selection guide
- Panel vs field mount
- Module options (relay/Modbus)
- Sensor electronics pairing
Common mistakes
- Expecting dual independent channels (use 9950).
- Wrong sensor electronics for DryLoc/S3L.
- Power below 12 V DC.
When to RFQ / what to tell us
- Mount, modules, sensors.
- Quantity, ship-to.
Request a Quote · Get selection help
Specs
| Spec | Value |
|---|---|
| SKU | 36942 |
| Brand | GF Signet |
| Model | 9900 |
| Product type | Multiparameter Transmitter |
| Measuring range | Single-channel multiparameter: flow, pH/ORP, conductivity/resistivity, salinity, temperature, pressure, level, DO, 4–20 mA |
| Accuracy | Sensor-dependent; transmitter displays calibrated engineering units per GF datasheet |
| Output signal | One 4–20 mA output standard; optional second analog, relays, batch, Modbus modules |
| Supply voltage | 12–32 V DC (see OEM datasheet power table) |
| Process connection | Panel mount (¼ DIN) or field mount enclosure versions (3-9900-1P / 3-9900-1) |
| IP rating | Field mount NEMA 4X / IP65 class (verify datasheet for exact rating) |
Documents
FAQ
Q: Channels? A: Single-channel multiparameter platform.
Q: Power? A: 12–32 V DC.
Q: What should I send for a quote? A: Mount/modules/sensors, quantity, ship-to.
Links
| Parameter | Value |
|---|---|
| Measuring range | Single-channel multiparameter: flow, pH/ORP, conductivity/resistivity, salinity, temperature, pressure, level, DO, 4–20 mA |
| Accuracy | Sensor-dependent; transmitter displays calibrated engineering units per GF datasheet |
| Output | One 4–20 mA output standard; optional second analog, relays, batch, Modbus modules |
| Supply | 12–32 V DC (see OEM datasheet power table) |
| Process connection | Panel mount (¼ DIN) or field mount enclosure versions (3-9900-1P / 3-9900-1) |
| Wetted parts | N/A (transmitter); sensor wetted parts separate |
| Housing | Panel or field enclosure per datasheet |
| Protection | Field mount NEMA 4X / IP65 class (verify datasheet for exact rating) |
| Media temperature | N/A (transmitter ambient/storage limits apply) |
| Ambient temperature | Per GF 9900 datasheet operating table |
| Display | Large backlit LCD with digital/bar-graph indication |
| Communication | Optional Modbus module; HART not native |
| Approvals | CE; UL/cUL listing options per datasheet |
| Notes | Specs from GF Piping Systems / Signet Type 9900 Transmitter datasheet + instruction manual. SmartPro single-channel platform. |
