Bently Nevada

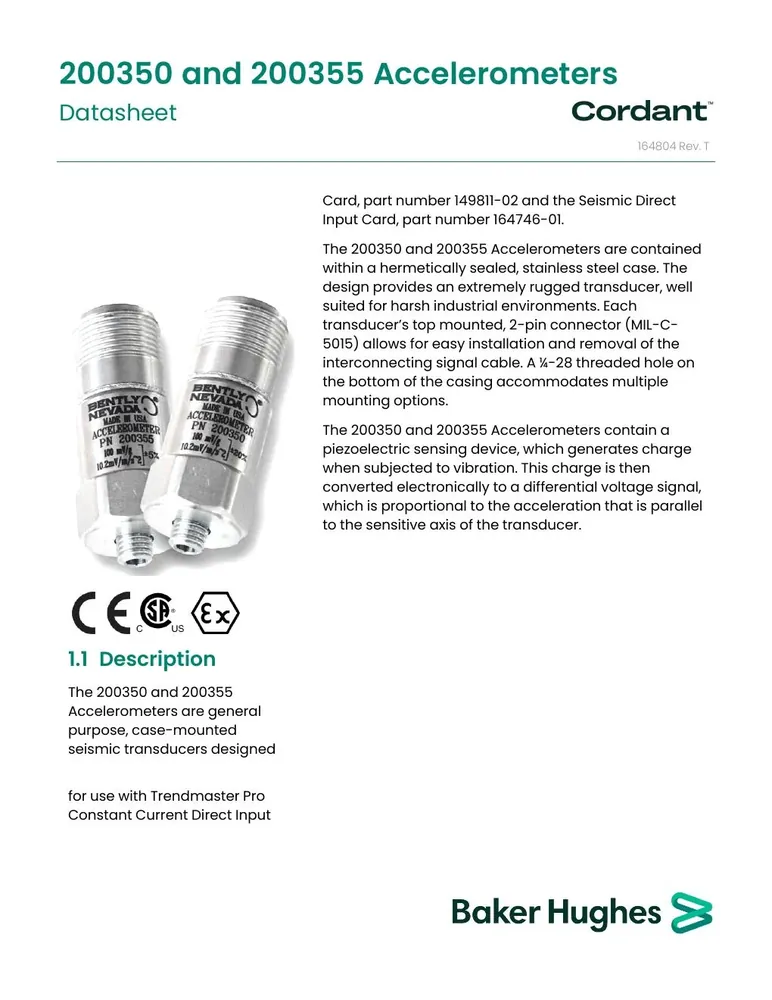

Bently Nevada 200350 / 200355 Accelerometers
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
±50 g peak measurement range (both 200350 and 200355)
Accuracy
Sensitivity 100 mV/g: 200350 ±20%; 200355 ±5% (10.2 mV/m/s²)
Output
Constant-current piezoelectric accelerometer voltage output (differential), for Trendmaster Pro / Seismic DI cards
Supply
18–28 VDC constant-current excitation
Electrical connection
Top-mounted 2-pin MIL-C-5015
Protection
Hermetically sealed stainless case
| Parámetro | Valor |
|---|---|
| Measuring range | ±50 g peak measurement range (both 200350 and 200355) |
| Accuracy | Sensitivity 100 mV/g: 200350 ±20%; 200355 ±5% (10.2 mV/m/s²) |
| Output | Constant-current piezoelectric accelerometer voltage output (differential), for Trendmaster Pro / Seismic DI cards |
| Supply | 18–28 VDC constant-current excitation |
| Electrical connection | Top-mounted 2-pin MIL-C-5015 |
| Protection | Hermetically sealed stainless case |
| Ambient temperature | Per datasheet temperature curves/limits |
| Approvals | Hazardous-area options per datasheet ordering |
| Mounting | ¼-28 female thread; stud options ¼-28 / M6 / M8 / adhesive |
| Sensor type | Piezoelectric case-mounted accelerometer |
| Notes | Do not use 200350 with negative excitation (−Vex). Specs from datasheet 164804 Rev. T. |
| Frequency Response | 200350: 0.5–10,000 Hz (±3 dB); 200355: 0.2–10,000 Hz (±3 dB) |
