Wilcoxon Sensing Technologies

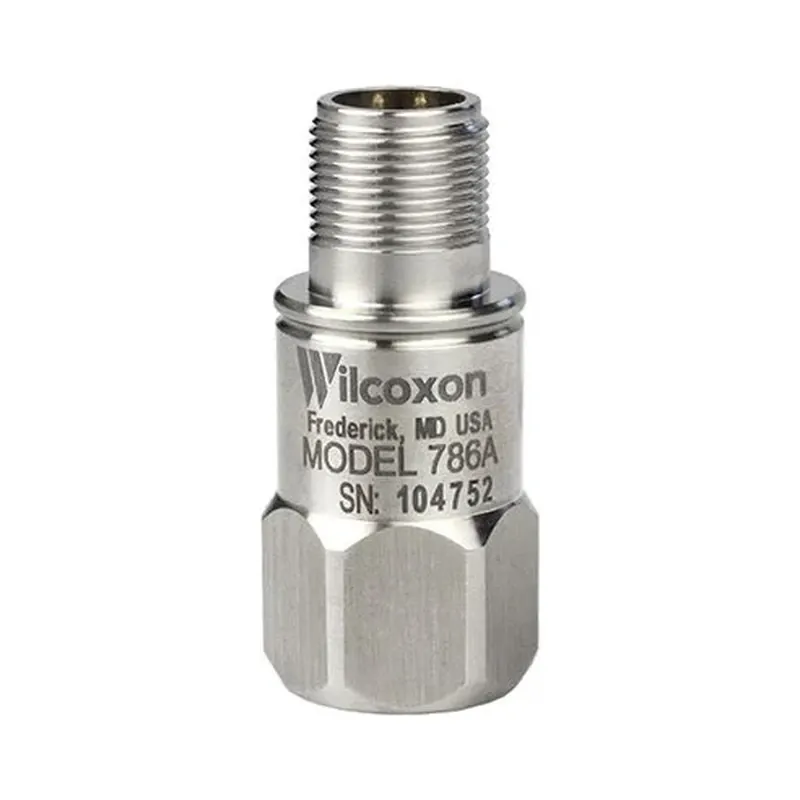

Wilcoxon 786A Series General Purpose Accelerometer
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Type
IEPE general-purpose accelerometer (786A Series)
Sensitivity
100 mV/g; ±5% tolerance
Frequency Response
0.5 Hz – 14,000 Hz (±3 dB)
Full Scale Range
80 g peak
Resonance
30 kHz
Temperature Range
−55 °C to +120 °C
| Parámetro | Valor |
|---|---|
| Type | IEPE general-purpose accelerometer (786A Series) |
| Sensitivity | 100 mV/g; ±5% tolerance |
| Frequency Response | 0.5 Hz – 14,000 Hz (±3 dB) |
| Full Scale Range | 80 g peak |
| Resonance | 30 kHz |
| Temperature Range | −55 °C to +120 °C |
| Connector | Top-exit MIL-C-5015 2-pin; 1/4-28 UNF mount |
| Weight | 90 g; case isolated; API 670 compliant; MTBF 25 years |
| Document | Wilcoxon 786A_spec_98692E.2 |
