Wilcoxon Sensing Technologies

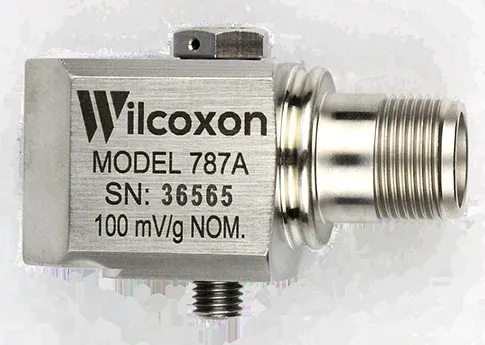

Wilcoxon Sensing Technologies 787A Series Accelerometer
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Type
Low-profile side-exit IEPE industrial accelerometer (787A / ED-787A)
Sensitivity
100 mV/g (+/-5% to +/-10% class per datasheet revision)
Full Scale
80 g peak
Frequency Response
+/-3 dB: 0.5 Hz to 10,000 Hz; +/-10%: about 1-5,000 Hz
Resonance
22 kHz
Temperature
-55 C to +120 C (product page); ED-787A sheet -50 C to +120 C
| Parámetro | Valor |
|---|---|
| Type | Low-profile side-exit IEPE industrial accelerometer (787A / ED-787A) |
| Sensitivity | 100 mV/g (+/-5% to +/-10% class per datasheet revision) |
| Full Scale | 80 g peak |
| Frequency Response | +/-3 dB: 0.5 Hz to 10,000 Hz; +/-10%: about 1-5,000 Hz |
| Resonance | 22 kHz |
| Temperature | -55 C to +120 C (product page); ED-787A sheet -50 C to +120 C |
| Connector | MIL-C-5015 2-pin side exit; 1/4-28 captive mounting screw |
| Weight | About 145 g (product page) |
| Features | API 670 compliant; hermetically sealed; ESD/overload/reverse-wiring protection |
| Document | Wilcoxon ED-787A TEDS general purpose accelerometer specification 98831B |
