Isotech

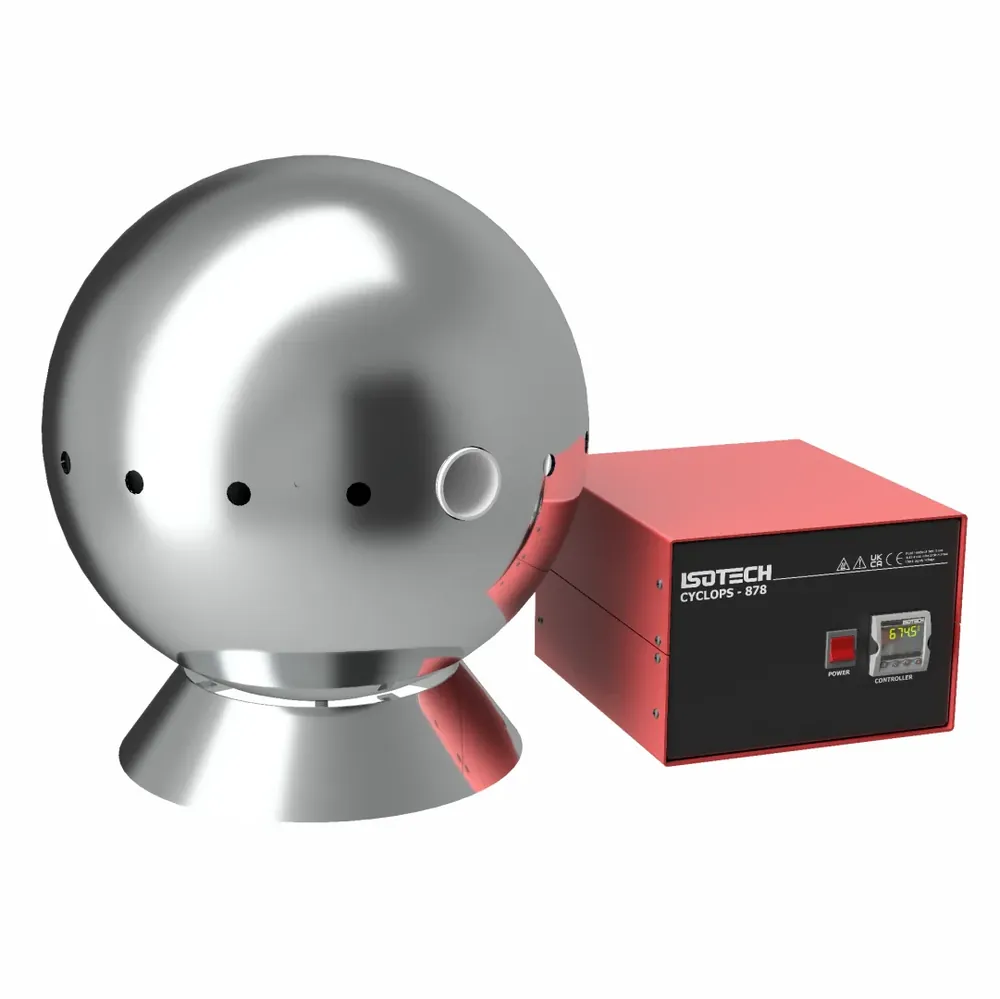

Isotech Model 878 Cyclops Spherical Blackbody Source
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Temperature Range
100 to 1300°C
Blackbody Type
Spherical blackbody source (inner sphere ~230 mm nominal diameter)
Emissivity
>0.999 (high-emissivity spherical cavity)
Stability
±0.1°C (typical, per OEM datasheet)
Aperture Options
17 mm standard; 45 mm optional (special order)
Optical Access
Optical sighting tube between metal case and blackbody
| Parámetro | Valor |
|---|---|
| Temperature Range | 100 to 1300°C |
| Blackbody Type | Spherical blackbody source (inner sphere ~230 mm nominal diameter) |
| Emissivity | >0.999 (high-emissivity spherical cavity) |
| Stability | ±0.1°C (typical, per OEM datasheet) |
| Aperture Options | 17 mm standard; 45 mm optional (special order) |
| Optical Access | Optical sighting tube between metal case and blackbody |
| Control | External controller with power feedback against supply voltage; digital filter |
| Reference Access | Reference thermocouple access point A (standard) or B (specify) |
| Heater Construction | Spherical ceramic mantle with heater windings; ceramic fibre insulation |
| Power | Approx. 3 kW (per OEM literature); state supply voltage when ordering |
| Weight | Approx. 25 kg (OEM literature) |
| Applications | IR thermometer / imager calibration; adaptable for thermocouple calibration |
| Outer Case | Spun metal shell with terminal box and height adjustment |
| How To Order | Model 878 Cyclops; state supply voltage, target diameter 17 or 45 mm, thermocouple access A/B |
