Armstrong International

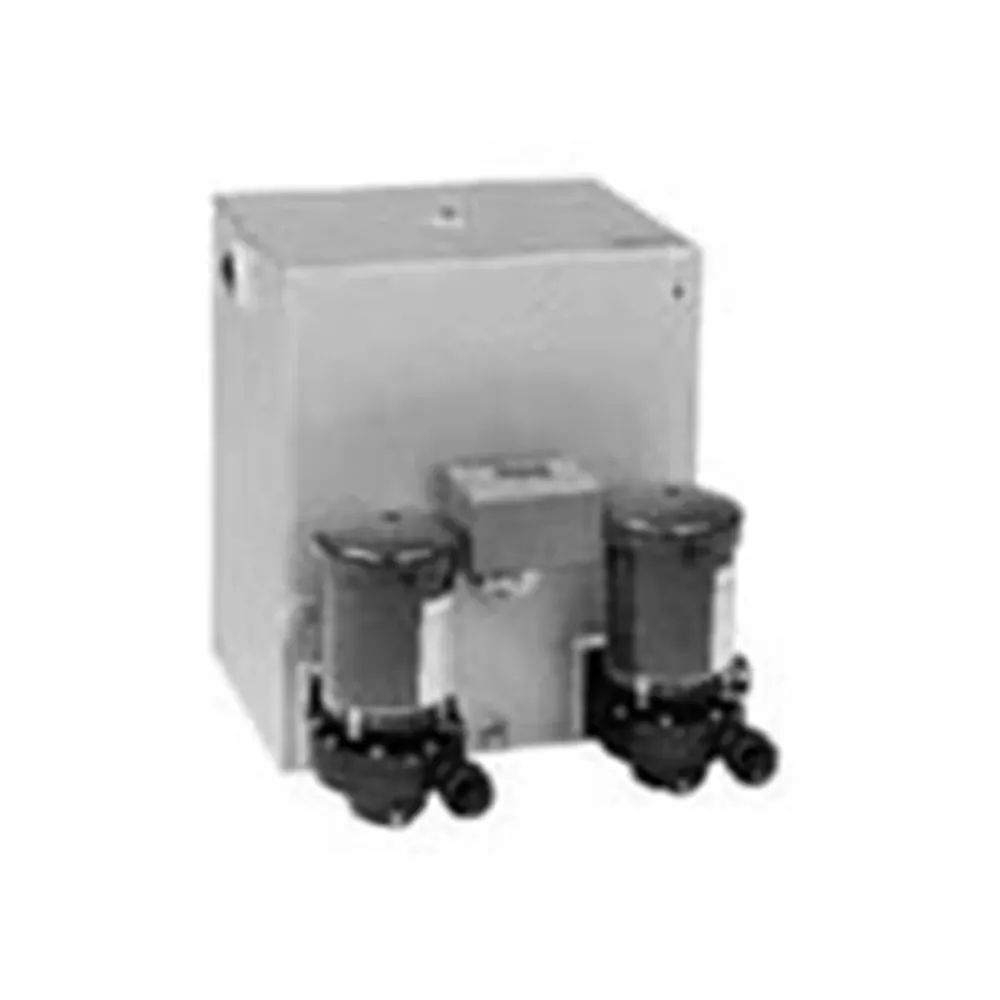

Armstrong FHS Series Electric Condensate Pump (Steel)
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Series
FHS Series electric condensate return (steel receiver)
Receiver Material
Steel
Receiver Sizes
8–30 gallon steel receivers (series range per OEM pump data)
Example Unit
AFH-41220-GDA duplex: 30 gal steel, 30 GPM @ 20 psi, 3/4 HP ODP, 115V/1/60 3450 RPM
Motor
Open drip-proof; NEMA 1 mechanical alternator on duplex example
Connections Example
2 in NPT vent; 3/4 in NPT pump discharge; 2-1/2 in NPT process return; overflow/drain
| Parámetro | Valor |
|---|---|
| Series | FHS Series electric condensate return (steel receiver) |
| Receiver Material | Steel |
| Receiver Sizes | 8–30 gallon steel receivers (series range per OEM pump data) |
| Example Unit | AFH-41220-GDA duplex: 30 gal steel, 30 GPM @ 20 psi, 3/4 HP ODP, 115V/1/60 3450 RPM |
| Motor | Open drip-proof; NEMA 1 mechanical alternator on duplex example |
| Connections Example | 2 in NPT vent; 3/4 in NPT pump discharge; 2-1/2 in NPT process return; overflow/drain |
| Application | Electric condensate pumping with steel receiver |
| Controls | Simplex or duplex with mechanical alternator options |
| Documentation | OEM submittal drawing + PumpTrap data bulletin |
| Family Contrast | FHS = steel receiver; FHC = cast iron receiver |
