Micro Motion

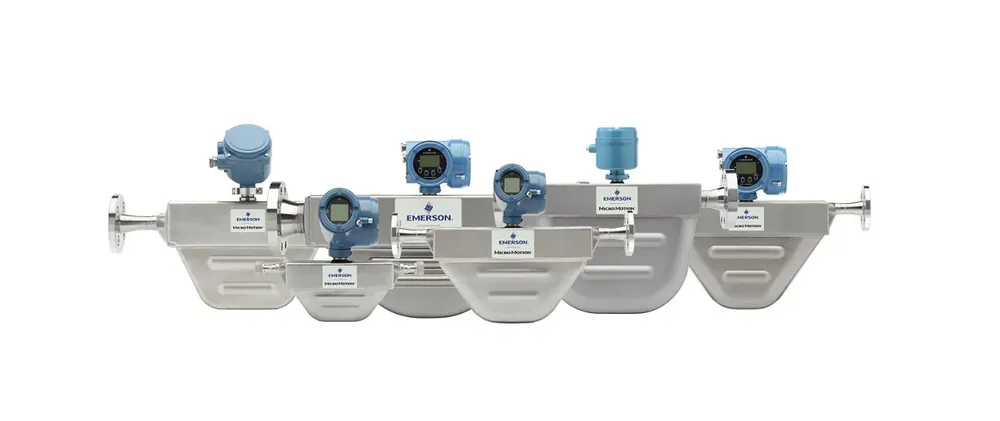

Micro Motion R-Series Coriolis Flow and Density Meters
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Type
General-purpose compact drainable Coriolis mass flow and density meter (Micro Motion R-Series)
Liquid Accuracy
Up to ±0.4% of rate (optional); ±0.5% of rate standard
Liquid Repeatability
0.2% of rate (optional class); 0.25% of rate standard
Gas Accuracy
Up to ±0.75% of rate (±0.5% repeatability)
Density Accuracy
Up to ±0.003 g/cm³ (±0.0015 g/cm³ repeatability class)
Line Size
¼ in (DN6) to 3 in (DN80)
| Parámetro | Valor |
|---|---|
| Type | General-purpose compact drainable Coriolis mass flow and density meter (Micro Motion R-Series) |
| Liquid Accuracy | Up to ±0.4% of rate (optional); ±0.5% of rate standard |
| Liquid Repeatability | 0.2% of rate (optional class); 0.25% of rate standard |
| Gas Accuracy | Up to ±0.75% of rate (±0.5% repeatability) |
| Density Accuracy | Up to ±0.003 g/cm³ (±0.0015 g/cm³ repeatability class) |
| Line Size | ¼ in (DN6) to 3 in (DN80) |
| Pressure Range | Up to 1450 psig (100 barg) |
| Temperature Range | −148 to 302 °F (−100 to 150 °C) |
| Turndown | 10:1 |
| Electronics | mA / frequency / discrete / HART / Modbus / EtherNet/IP / PROFINET / FOUNDATION Fieldbus options |
