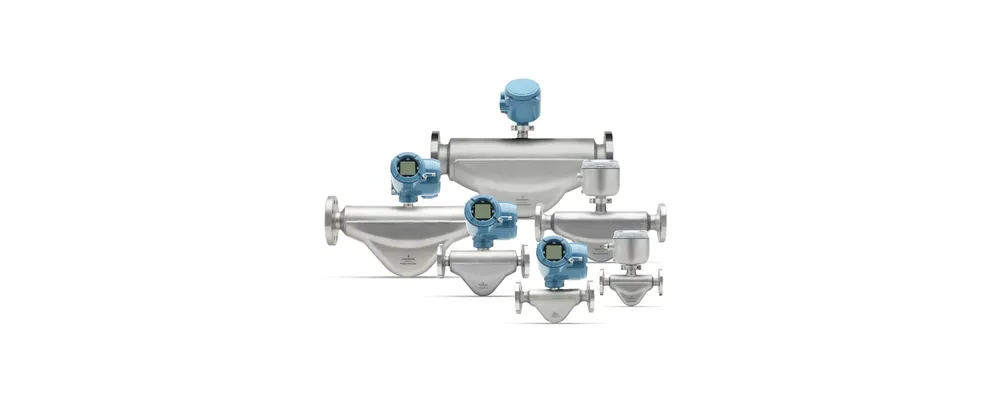

Micro Motion G-Series Coriolis Flow Meter

SKU · 42315 · G-Series Coriolis Flow Meter · Marca: Micro Motion

Disponible

Cotización a solicitud

Sin pago en línea · líneas en BOM RFQ

Cantidad

RFQ solo líneas BOM. Envíe para cotización de ingeniería.

Parámetros clave

Approvals

CSA, ATEX, IECEx, and NAMUR class approvals available

Type

Micro Motion G-Series ultracompact Coriolis mass flow and density meter (316L stainless steel)

Liquid Mass Volume Accuracy

Enhanced +/-0.1% of rate; Intermediate +/-0.15%; Basic +/-0.25% of rate

Liquid Density Accuracy

+/-5.00 kg/m3 (+/-0.005 g/cm3); repeatability +/-2.5 kg/m3

Gas Mass Accuracy

+/-0.5% of rate (repeatability 0.25% of rate)

Temperature Accuracy

+/-1 C +/-0.5% of reading

Parámetro	Valor
Approvals	CSA, ATEX, IECEx, and NAMUR class approvals available
Type	Micro Motion G-Series ultracompact Coriolis mass flow and density meter (316L stainless steel)
Liquid Mass Volume Accuracy	Enhanced +/-0.1% of rate; Intermediate +/-0.15%; Basic +/-0.25% of rate
Liquid Density Accuracy	+/-5.00 kg/m3 (+/-0.005 g/cm3); repeatability +/-2.5 kg/m3
Gas Mass Accuracy	+/-0.5% of rate (repeatability 0.25% of rate)
Temperature Accuracy	+/-1 C +/-0.5% of reading
Line Sizes	G025M to G300M about 1/4 in (DN6) through 3 in (DN80)
Process Pressure	G025/G050/G100 class up to about 1,450 psi (100 bar) MWOP (connection-dependent)
Wetted Material	316L stainless steel measuring tubes; hygienic option with 3-A / EHEDG / ASME BPE
Transmitters	Pairs with Micro Motion 4200, 1600, 4700, and 5700 electronics
Diagnostics	Smart Meter Verification for in-process measurement integrity
Document	Micro Motion G-Series Product Data Sheet 00813-0100-4630 (emerson.com)
