Meunier Technologies

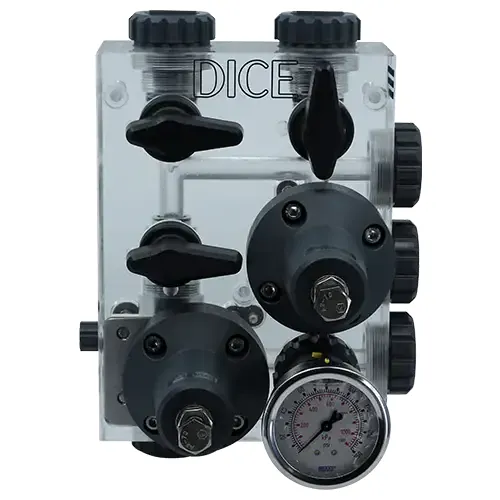

Meunier Technologies DICE DS/DM Chemical Dosing Module
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Type
Integrated chemical dosing discharge module (DICE DS/DM)
Sizes
1/2 in (DN15) and 1 in (DN25)
Body Materials
Clear acrylic (PMMA), PVC, CPVC, PVDF
Valves
Integrated ball valves, adjustable BPV and PRV
Gauge
Pressure gauge with isolator; 0–150 / 0–250 psi ranges
Ports
Auxiliary ports for dampener, wash, dilution, secondary pump
| Parámetro | Valor |
|---|---|
| Type | Integrated chemical dosing discharge module (DICE DS/DM) |
| Sizes | 1/2 in (DN15) and 1 in (DN25) |
| Body Materials | Clear acrylic (PMMA), PVC, CPVC, PVDF |
| Valves | Integrated ball valves, adjustable BPV and PRV |
| Gauge | Pressure gauge with isolator; 0–150 / 0–250 psi ranges |
| Ports | Auxiliary ports for dampener, wash, dilution, secondary pump |
| Connections | Hose, socket, NPT |
| Seals | Viton / EPDM diaphragms and seals |
| Footprint | Machined block; ~2× reduced footprint vs discrete piping |
| Testing | Hydrostatic testing included on every module |
