Isotech

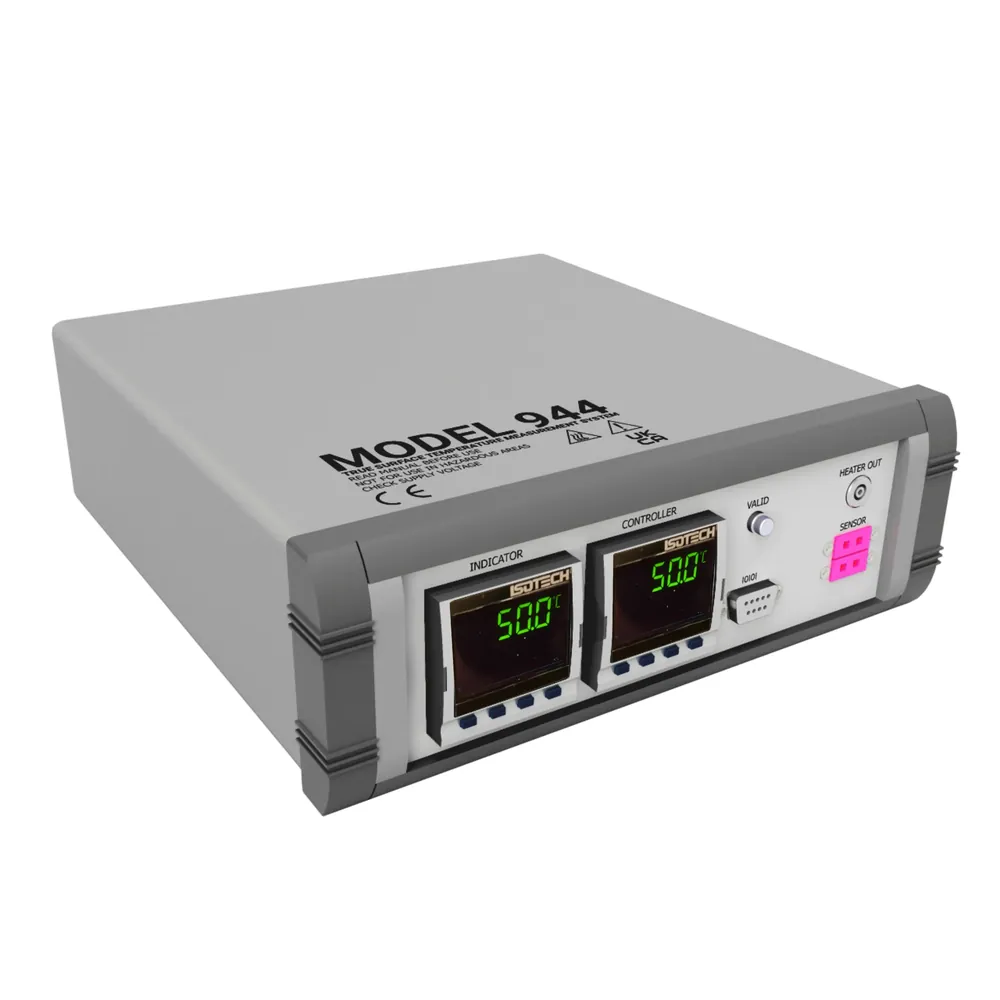

Isotech Model 944 Surface Measurement System
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Accuracy
±2°C with TRACEABLE certification; ±5°C without
Sensor type
Fine-wire Type N thermocouple with heated stem / gradient nulling
Temperature Range
30°C to 350°C
Display Resolution
0.1°C or 0.1°F
Stability
±1°C (OEM datasheet)
Probe Assembly
Diameter 7.5 mm; length 150 mm; lead 850 mm (935-14-81)
| Parámetro | Valor |
|---|---|
| Accuracy | ±2°C with TRACEABLE certification; ±5°C without |
| Sensor type | Fine-wire Type N thermocouple with heated stem / gradient nulling |
| Temperature Range | 30°C to 350°C |
| Display Resolution | 0.1°C or 0.1°F |
| Stability | ±1°C (OEM datasheet) |
| Probe Assembly | Diameter 7.5 mm; length 150 mm; lead 850 mm (935-14-81) |
| Power Supply | 100–120 V or 200–240 V, 50/60 Hz |
| Dimensions | H 90 × W 153 × D 265 mm (excluding plugs) |
| Weight | 4 kg |
| Companion | Designed for use with Isotech Small Hot Plate Model 983 |
| Form Factor | Bench/portable true surface temperature indicator with heated-stem probe |
