Dwyer Instruments

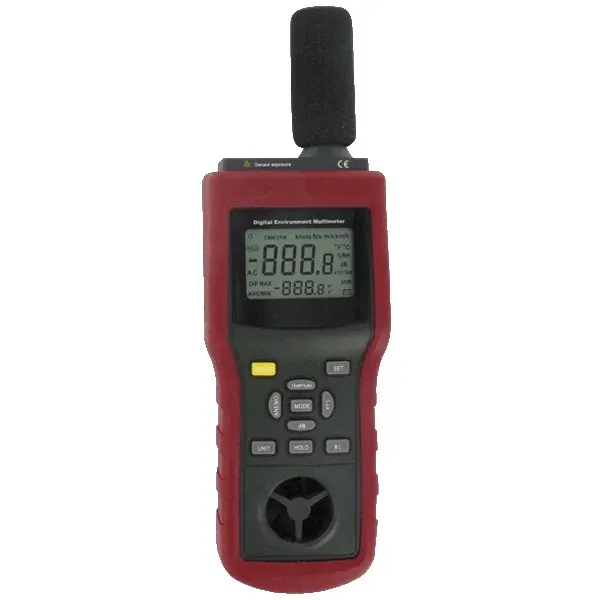

Dwyer EMMA Digital Multifunction Environmental Meter
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
Temperature 14–140 °F (−10–60 °C); RH 0–100%; sound 30–130 dB(A) / 35–130 dB(C); illumination 0–50,000 lux; wind speed 96–5913 fpm; air flow 0–999,900 cfm (0.5–30 m/s class per sheet)
Accuracy
Temperature ±2.7 °F (1.5 °C); RH ±3% (20–80% @ 25 °C); sound ±1.5 dB; illumination ±5% of reading + 10; wind speed/air flow ±3% of reading + 10
Output
Display only (current/average/min/max/differential); no analog transmitter output
Supply
9 V alkaline battery (included, user replaceable)
Ambient temperature
14–140 °F (−10–60 °C)
Display
Dual-line 4-digit LCD with backlight; current and average
| Parámetro | Valor |
|---|---|
| Measuring range | Temperature 14–140 °F (−10–60 °C); RH 0–100%; sound 30–130 dB(A) / 35–130 dB(C); illumination 0–50,000 lux; wind speed 96–5913 fpm; air flow 0–999,900 cfm (0.5–30 m/s class per sheet) |
| Accuracy | Temperature ±2.7 °F (1.5 °C); RH ±3% (20–80% @ 25 °C); sound ±1.5 dB; illumination ±5% of reading + 10; wind speed/air flow ±3% of reading + 10 |
| Output | Display only (current/average/min/max/differential); no analog transmitter output |
| Supply | 9 V alkaline battery (included, user replaceable) |
| Ambient temperature | 14–140 °F (−10–60 °C) |
| Display | Dual-line 4-digit LCD with backlight; current and average |
| Approvals | CE |
| Mounting | Handheld; rubber boot + tripod included |
| Notes | Model EMMA multifunction environmental meter. OEM DwyerOmega EMMA.i.pdf + IOM + dimensional drawing. |
| Response Time | 500 ms |
| Weight | 15.5 oz (430 g) |
