Raytek

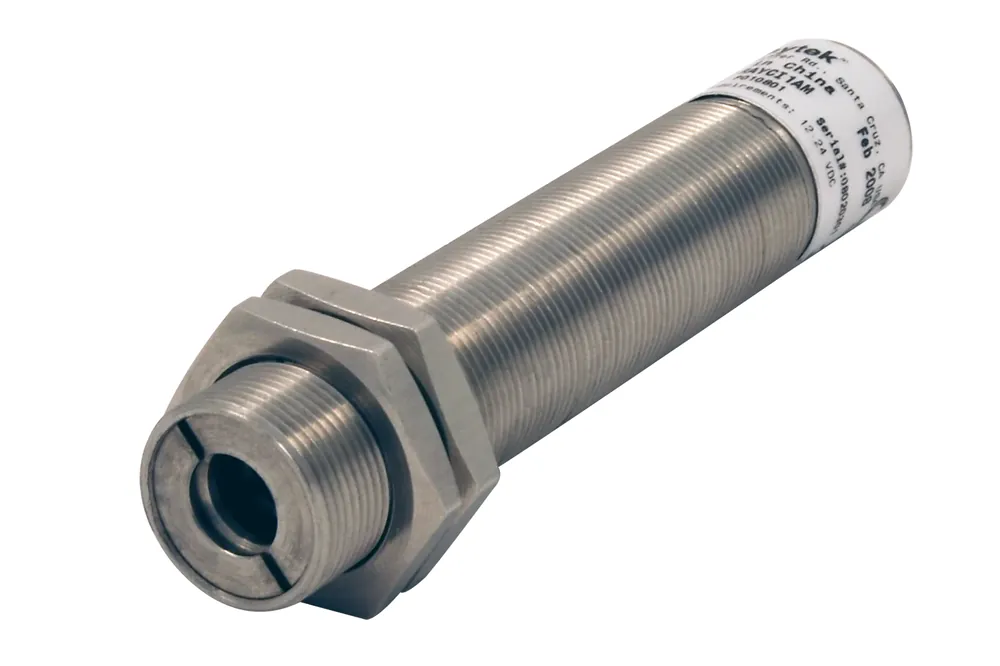

Raytek CM Series Compact Infrared Temperature Sensor
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Accuracy
±1.5% of reading or ±2 °C (mV/digital); TC models see datasheet
Type
Compact noncontact IR temperature sensor (Raytek Compact CM)
Temperature Range
−20 to 500 °C (−4 to 932 °F)
Spectral Response
8 to 14 µm
Optics
13:1 D:S at 90% energy (far-field ~9:1)
Response Time
150 ms (95%)
| Parámetro | Valor |
|---|---|
| Accuracy | ±1.5% of reading or ±2 °C (mV/digital); TC models see datasheet |
| Type | Compact noncontact IR temperature sensor (Raytek Compact CM) |
| Temperature Range | −20 to 500 °C (−4 to 932 °F) |
| Spectral Response | 8 to 14 µm |
| Optics | 13:1 D:S at 90% energy (far-field ~9:1) |
| Response Time | 150 ms (95%) |
| Outputs | Scaleable 0–5 V, Type J or K thermocouple; RS232; 24 VDC alarm |
| Housing | IP65 (NEMA-4) stainless steel; ambient −10 to 70 °C without cooling |
| Document | Raytek Compact CM datasheet / Fluke Process Instruments CM brochure |
