Raytek

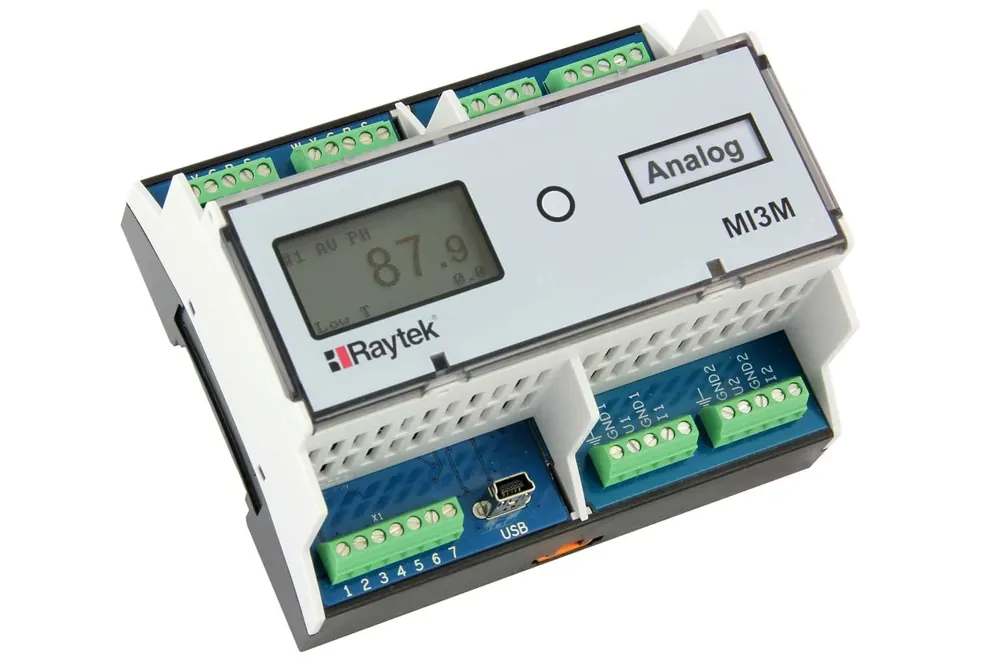

Raytek MI3 Electronics Modules
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Type
MI3COMM / MI3MCOMM electronics/communication modules for Raytek Compact MI3
Pairing
Each system: 1× MI3 sensing head + 1× MI3COMM or MI3MCOMM module (ordered separately)
Heads Mi3comm
Up to 8 addressable sensing heads per MI3COMM communications box
Heads Mi3mcomm
Up to 4 sensing heads directly on DIN-rail MI3MCOMM multi-channel box
Standard Interface
USB 2.0 standard on communication boxes
Fieldbus Options
Optional RS485, Modbus, Profibus, Ethernet/HTTP server, Profinet
| Parámetro | Valor |
|---|---|
| Type | MI3COMM / MI3MCOMM electronics/communication modules for Raytek Compact MI3 |
| Pairing | Each system: 1× MI3 sensing head + 1× MI3COMM or MI3MCOMM module (ordered separately) |
| Heads Mi3comm | Up to 8 addressable sensing heads per MI3COMM communications box |
| Heads Mi3mcomm | Up to 4 sensing heads directly on DIN-rail MI3MCOMM multi-channel box |
| Standard Interface | USB 2.0 standard on communication boxes |
| Fieldbus Options | Optional RS485, Modbus, Profibus, Ethernet/HTTP server, Profinet |
| Analog Outputs | 0–5/10 V, 0/4–20 mA, thermocouple J/K/R/S; optional 4 galvanically isolated analogs |
| Power Supply | 8–32 VDC typical communications-box supply (family) |
| Data Logger | 64 MB data logger on Ethernet-capable communication boxes |
| Software | DataTemp MultiDrop for remote setup, recipe tables, multi-sensor trending |
