Raytek

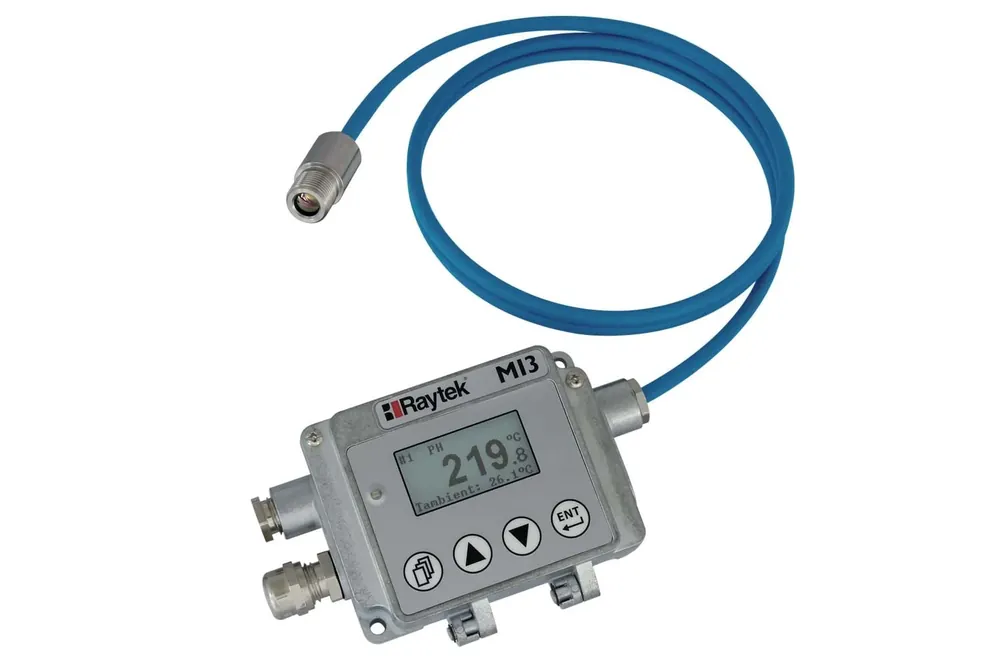

Raytek MI3 Compact Fixed Infrared Thermometer
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Accuracy
±1 °C (mA/V); ±1.5 °C (thermocouple output)
Type
Compact multi-head fixed infrared thermometer system (Raytek MI3)
Heads
Up to 8 sensing heads per communications box; Plug & Play head detection
Temperature Range
LT heads −40…600 °C; extended LT to 1000 °C; 1M/2M/G5 higher ranges to 1800 °C
Response Time
Fast head response down to 10 ms (model dependent)
Ambient Head
Head ambient up to 180 °C (356 °F) without cooling (LTH class)
| Parámetro | Valor |
|---|---|
| Accuracy | ±1 °C (mA/V); ±1.5 °C (thermocouple output) |
| Type | Compact multi-head fixed infrared thermometer system (Raytek MI3) |
| Heads | Up to 8 sensing heads per communications box; Plug & Play head detection |
| Temperature Range | LT heads −40…600 °C; extended LT to 1000 °C; 1M/2M/G5 higher ranges to 1800 °C |
| Response Time | Fast head response down to 10 ms (model dependent) |
| Ambient Head | Head ambient up to 180 °C (356 °F) without cooling (LTH class) |
| Power Supply | 8…32 VDC, 5 W (communications box) |
| Interfaces | USB 2.0 standard; optional RS485 (ASCII/Profibus/Modbus) or Ethernet (ASCII/http/Profinet) |
| Protection | IP65 / NEMA-4 (MI3COMM metal box) |
| Document | Fluke Process Instruments MI3 Box Datasheet + MI3 Heads Datasheet |
