Optris

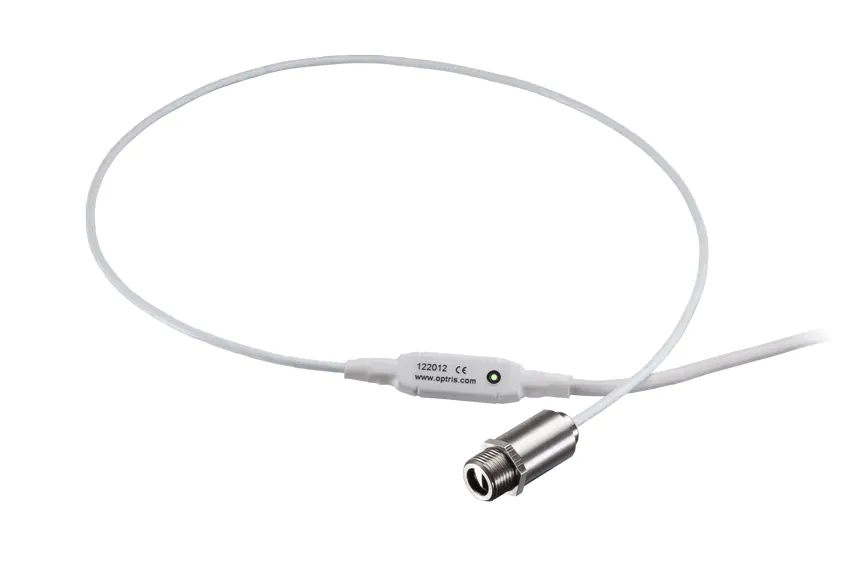

Optris CSmicro LT/LTH Infrared Temperature Sensor
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Accuracy
±1.0 % or ±1.0 °C (whichever greater); repeatability ±0.5 % or ±0.5 °C
Type
Miniature fixed IR pyrometer M12×1 sensing head (CSmicro LT / LTH)
Temperature Range
−50…1030 °C (scalable via software)
Spectral Response
8–14 µm
Optical Resolution
22:1 (LT22H); 15:1 (LT15/LT15H); 2:1 (LT02); optional CF lens
Response Time
14 ms (LT) / 150 ms (LTH)
| Parámetro | Valor |
|---|---|
| Accuracy | ±1.0 % or ±1.0 °C (whichever greater); repeatability ±0.5 % or ±0.5 °C |
| Type | Miniature fixed IR pyrometer M12×1 sensing head (CSmicro LT / LTH) |
| Temperature Range | −50…1030 °C (scalable via software) |
| Spectral Response | 8–14 µm |
| Optical Resolution | 22:1 (LT22H); 15:1 (LT15/LT15H); 2:1 (LT02); optional CF lens |
| Response Time | 14 ms (LT) / 150 ms (LTH) |
| Outputs | 0–5/10 V or 4–20 mA (two-wire); simultaneous alarm output; digital UART / USB option |
| Ambient | LT head −20…120 °C; LTH head −20…180 °C without cooling; electronics −20…80 °C |
| Protection | IP65 (NEMA-4); stainless sensing head ~28 mm long |
| Power | 5–30 V DC |
| Document | CSmicro LT/LTH datasheet (OEM reprint via AutomationDirect CDN; optris.com DS CF-blocked) + CSmicro operator manual |
| Software | optris Compact Connect (Windows); IR mobile (Android) |
