Optris

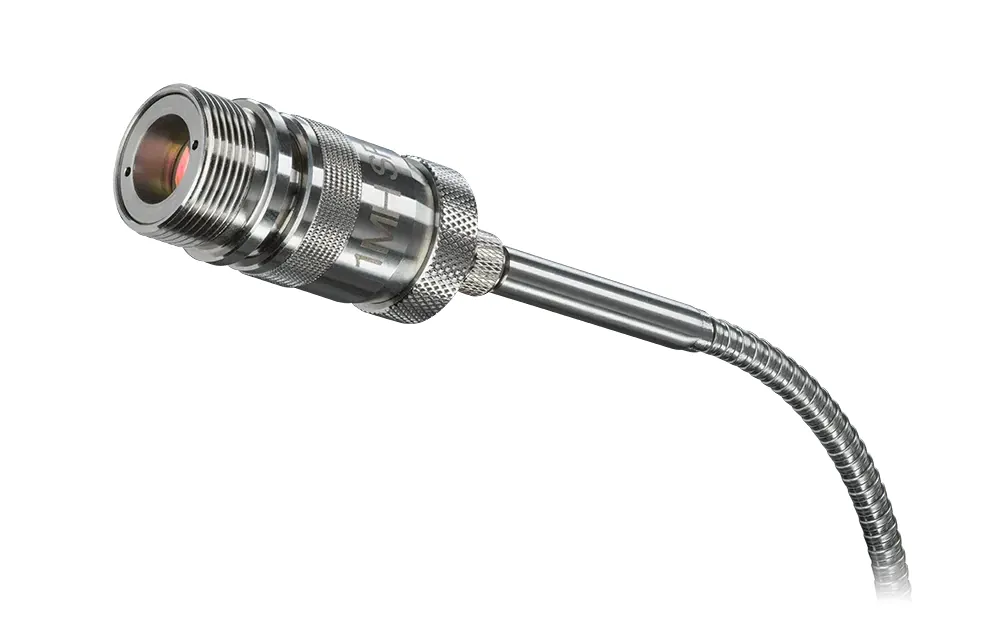

Optris CTratio 1M Fiber-Optic Ratio Infrared Thermometer
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Type
Fiber-optic ratio infrared thermometer (CTratio 1M)
Temperature Range
450 °C to 3000 °C class (1-channel / 2-channel modes)
Optics
Adjustable focus 150 mm to infinity; optical resolution up to 100:1
Sighting
Green laser sighting for glowing targets
Response
1 ms response time class
Outputs
Two 0/4–20 mA analog outputs (optional isolated)
| Parámetro | Valor |
|---|---|
| Type | Fiber-optic ratio infrared thermometer (CTratio 1M) |
| Temperature Range | 450 °C to 3000 °C class (1-channel / 2-channel modes) |
| Optics | Adjustable focus 150 mm to infinity; optical resolution up to 100:1 |
| Sighting | Green laser sighting for glowing targets |
| Response | 1 ms response time class |
| Outputs | Two 0/4–20 mA analog outputs (optional isolated) |
| Ambient Head | Sensing head + fiber to 200 °C (optional 315 °C) without cooling |
| Electronics Temp | Electronics 0…60 °C |
| Protection | IP65 (NEMA-4) |
| Mode | Smart Ratio Mode (SRM) for adaptive slope applications |
