Honeywell

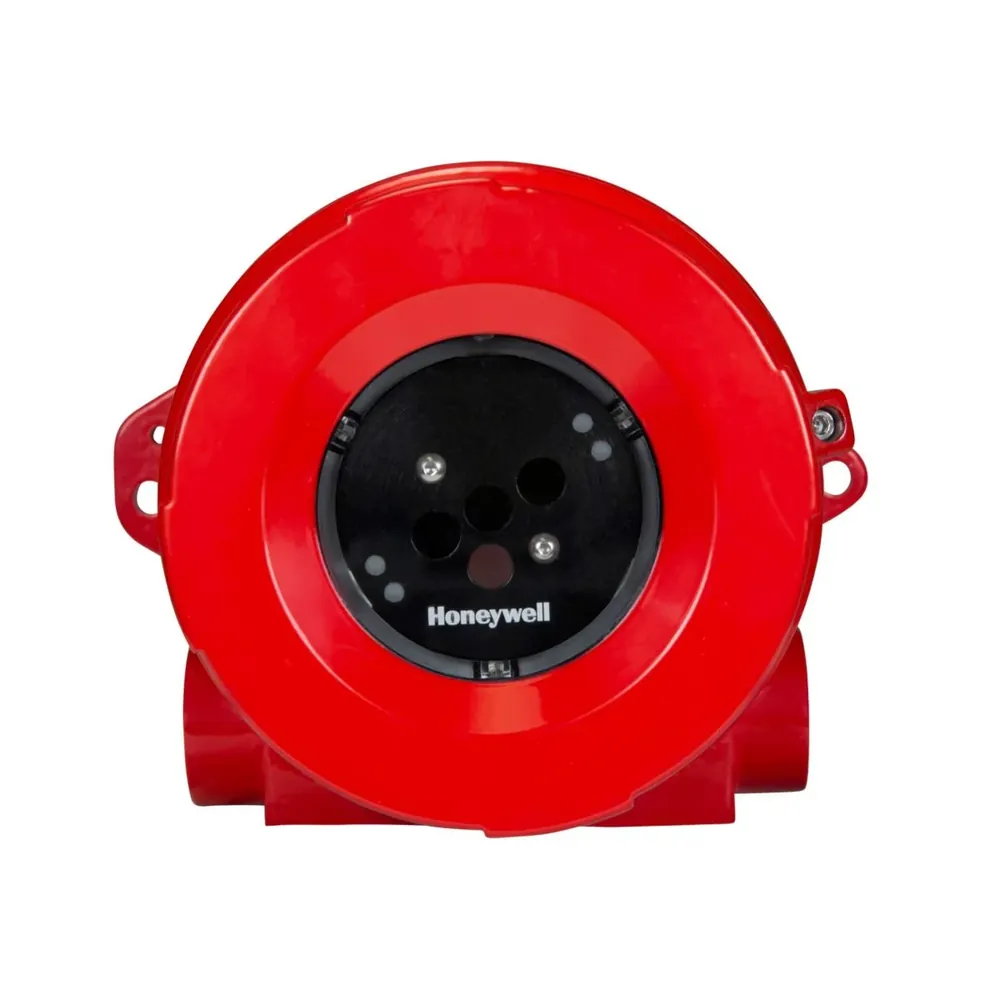

Honeywell FS24X Plus Triple IR Flame Detector
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Approvals
ATEX, IECEx, cFMus, INMETRO, SIL2, FM3260, EN54-10; marine options
Type
Triple IR (IR3) flame detector — FS24X Plus
Detection
Hydrocarbon and hydrogen fires; WideBand IR solid-state sensors
Field Of View
90° cone (120° at 50% on-axis range)
Sensitivity
Low 15 m / Medium 30 m / High 45 m / Very High 60 m to 0.1 m² n-Heptane
Response Time
Typically ≤5 s (max 10 s FM witnessed)
| Parámetro | Valor |
|---|---|
| Approvals | ATEX, IECEx, cFMus, INMETRO, SIL2, FM3260, EN54-10; marine options |
| Type | Triple IR (IR3) flame detector — FS24X Plus |
| Detection | Hydrocarbon and hydrogen fires; WideBand IR solid-state sensors |
| Field Of View | 90° cone (120° at 50% on-axis range) |
| Sensitivity | Low 15 m / Medium 30 m / High 45 m / Very High 60 m to 0.1 m² n-Heptane |
| Response Time | Typically ≤5 s (max 10 s FM witnessed) |
| Supply | 24 VDC nominal (18–32 VDC) |
| Outputs | 4–20 mA; Alarm/Fault/Aux relays; HART; Modbus RS-485; USB |
| Operating Temperature | −55 to +75 °C (−50 to +75 °C North America) |
| Document | FS24X Plus datasheet + user manual 1701M5001 |
