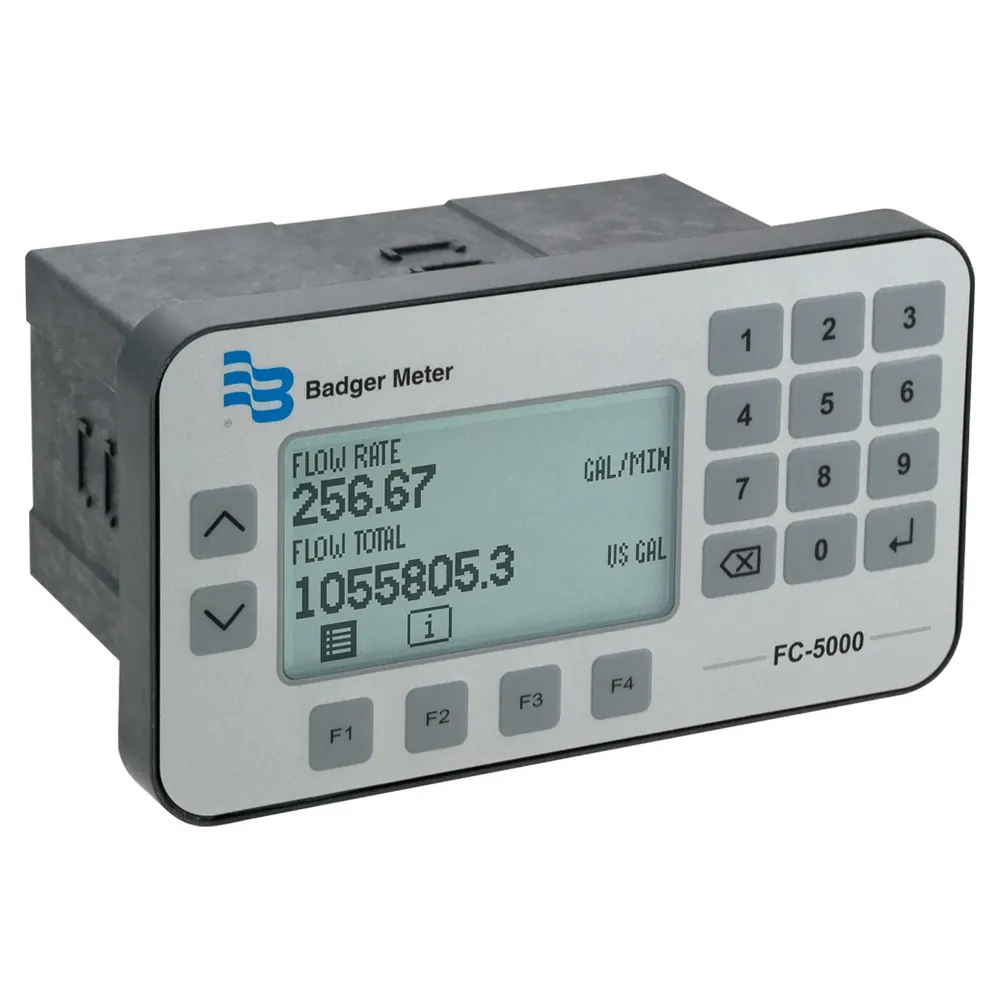

Badger Meter FC-5000 Flow Display

SKU · 47005 · FC-5000 · Marca: Badger Meter

Disponible

Cotización a solicitud

Sin pago en línea · líneas en BOM RFQ

Cantidad

RFQ solo líneas BOM. Envíe para cotización de ingeniería.

Parámetros clave

Supply

10–40 VDC and 9–28 VAC RMS (50–60 Hz); max 8 W

Display

128×64 pixel backlit graphical LCD with softkeys and numeric keypad

Function

Microprocessor flow display / industrial flow computer for rate and total

Sensor Inputs

One or two pulse/sine-wave meter inputs (0.3 Hz–10 kHz); 12 VDC excitation

Scaled Outputs

Analog 0–5 V / 0–10 V / 4–20 mA (16-bit) or dual frequency outputs

Relay Outputs

Two Form C mechanical relays, or one Form C + one Form A solid-state

Parámetro	Valor
Supply	10–40 VDC and 9–28 VAC RMS (50–60 Hz); max 8 W
Display	128×64 pixel backlit graphical LCD with softkeys and numeric keypad
Function	Microprocessor flow display / industrial flow computer for rate and total
Sensor Inputs	One or two pulse/sine-wave meter inputs (0.3 Hz–10 kHz); 12 VDC excitation
Scaled Outputs	Analog 0–5 V / 0–10 V / 4–20 mA (16-bit) or dual frequency outputs
Relay Outputs	Two Form C mechanical relays, or one Form C + one Form A solid-state
Communications	EIA-485 (RS-485); Modbus RTU/ASCII or BACnet; USB device for field updates
Operating Temperature	32–130°F (0–55°C); wall-mount NEMA 4X (IP67) enclosure option
