Isotech

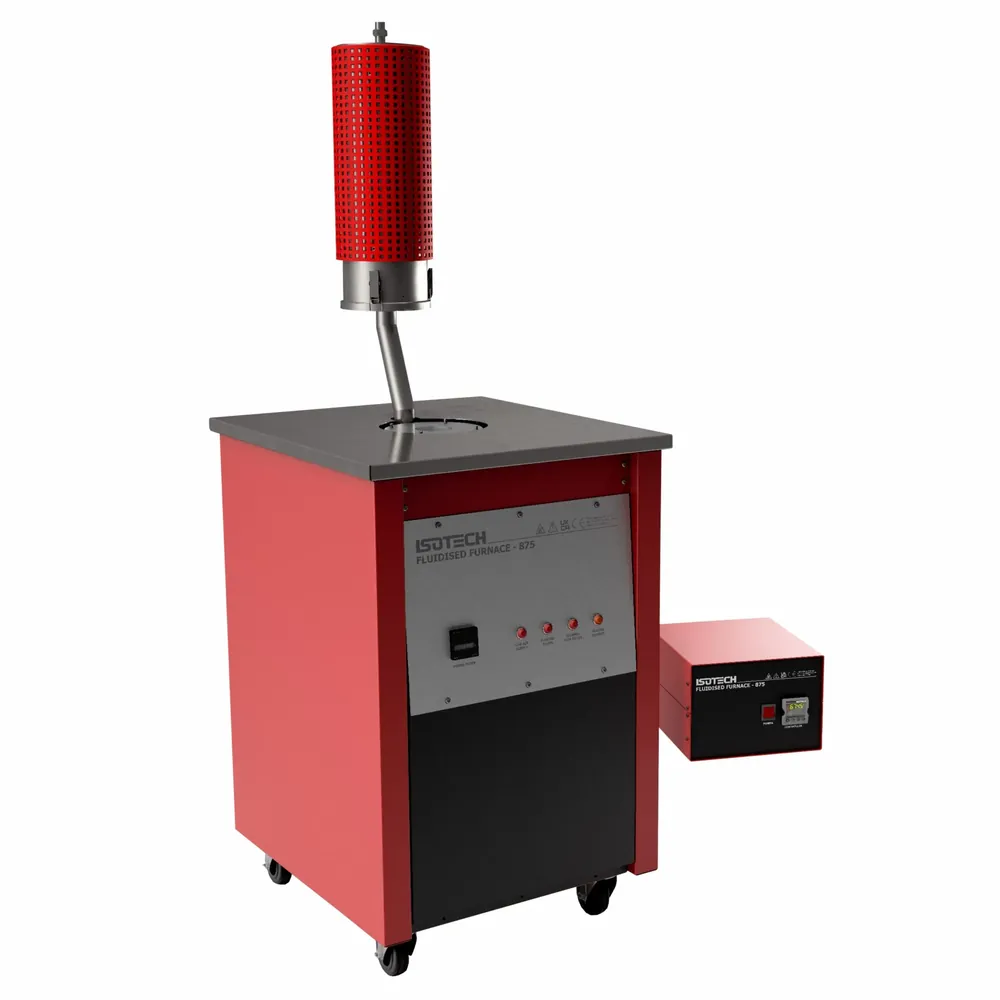

Isotech Model 875 Ayres Calibration Bath
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Temperature Range
50°C to 700°C
Volume
67 mm diameter × 475 mm deep (875/02)
Comparison Stability
±0.005°C at 150°C; ±0.005°C at 450°C; ±0.020°C at 660°C (10 min, equalising block)
Uncertainties Lab
As low as ±0.020°C at 300°C and ±0.035°C at 660°C (Isotech ISO 17025 lab)
Heating Time
50°C to 700°C < 240 minutes
Air Supply
1 bar; 30 L/min at 100°C (50 L/min max)
| Parámetro | Valor |
|---|---|
| Temperature Range | 50°C to 700°C |
| Volume | 67 mm diameter × 475 mm deep (875/02) |
| Comparison Stability | ±0.005°C at 150°C; ±0.005°C at 450°C; ±0.020°C at 660°C (10 min, equalising block) |
| Uncertainties Lab | As low as ±0.020°C at 300°C and ±0.035°C at 660°C (Isotech ISO 17025 lab) |
| Heating Time | 50°C to 700°C < 240 minutes |
| Air Supply | 1 bar; 30 L/min at 100°C (50 L/min max) |
| Power | 3 kW (3×1 kW); 208–240 V 50/60 Hz |
| Dimensions | 580 × 460 × 1570 mm (W×D×H) |
| Weight | 85 kg including 22 kg alumina powder |
