Alpha Omega Instruments (AOI)

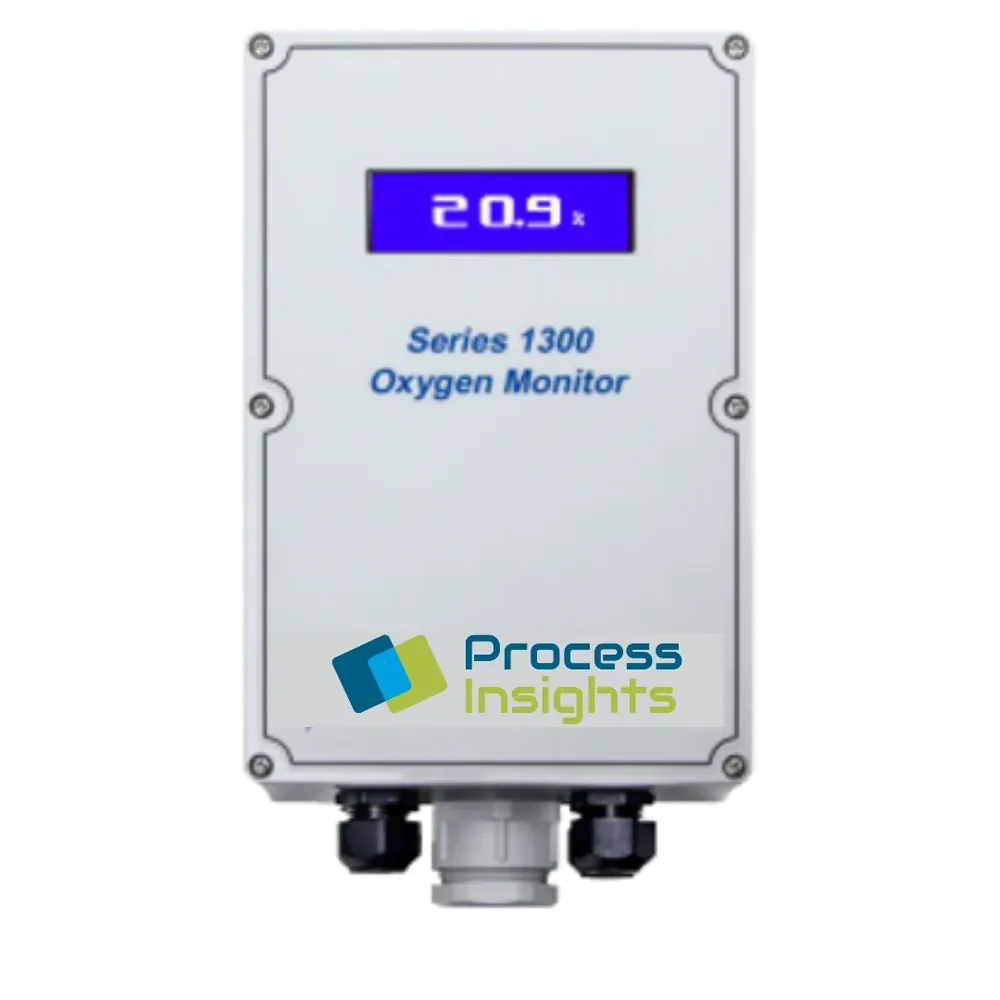

Alpha Omega Instruments (AOI) AOI Series 1300 Oxygen Analyzer
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Accuracy
+/-1% of full scale
Display
4 line x 20 character LCD; built-in audible alarm ~85 dB
Type
Wall-mount oxygen deficiency monitor (Series 1300)
Measurement Range
0-30% oxygen
Response
90% of full scale in less than 20 s
Sensor
Extended-life electrochemical sensor with Enhanced Electrolyte System (EES); up to 3 sensor inputs
| Parámetro | Valor |
|---|---|
| Accuracy | +/-1% of full scale |
| Display | 4 line x 20 character LCD; built-in audible alarm ~85 dB |
| Type | Wall-mount oxygen deficiency monitor (Series 1300) |
| Measurement Range | 0-30% oxygen |
| Response | 90% of full scale in less than 20 s |
| Sensor | Extended-life electrochemical sensor with Enhanced Electrolyte System (EES); up to 3 sensor inputs |
| Outputs | Two configurable 0-20 / 4-20 mA; RS-232; four SPDT Form C alarm relays |
| Power | Universal 90-264 VAC, 47-63 Hz |
| Operating Temp | 10 to 40 C (50 to 104 F); 90% RH max non-condensing |
| Document | Process Insights Series 1300 Datasheet DS_v26 |
