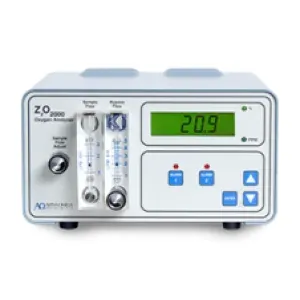

Alpha Omega Instruments ZRO2000 Fast Response Oxygen Analyzer

SKU · 45779 · ZRO2000 · Marca: Alpha Omega Instruments

Disponible

Cotización a solicitud

Sin pago en línea · líneas en BOM RFQ

Cantidad

RFQ solo líneas BOM. Envíe para cotización de ingeniería.

Parámetros clave

Measuring range

0–100% oxygen (PPB to 100%)

Accuracy

Percent: ±2% of reading or 0.05% absolute (whichever greater); Trace: ±2% of reading or ±0.5 ppm absolute

Output

Two user-scalable 0–20 mA or 4–20 mA; two SPDT Form C alarm relays (10 A @ 30 VDC / 115/230 VAC)

Supply

Universal 90–264 VAC, 50/60 Hz

Display

0.7 in (17.8 mm) 6-digit LCD; 0.01% / 0.001 ppm resolution

Sensor type

Non-depleting zirconium oxide solid-state sensor

Parámetro	Valor
Measuring range	0–100% oxygen (PPB to 100%)
Accuracy	Percent: ±2% of reading or 0.05% absolute (whichever greater); Trace: ±2% of reading or ±0.5 ppm absolute
Output	Two user-scalable 0–20 mA or 4–20 mA; two SPDT Form C alarm relays (10 A @ 30 VDC / 115/230 VAC)
Supply	Universal 90–264 VAC, 50/60 Hz
Display	0.7 in (17.8 mm) 6-digit LCD; 0.01% / 0.001 ppm resolution
Sensor type	Non-depleting zirconium oxide solid-state sensor
Response Time	<5 seconds at 0.15 LPM over 1 decade
Operating Temperature	50° to 104°F (10° to 40°C)
Enclosure	Aluminum NEMA 1; 13 × 10.71 × 6.3 in (330 × 272 × 160 mm)
Warranty	2 years electronics / 1 year sensor
