Fluke

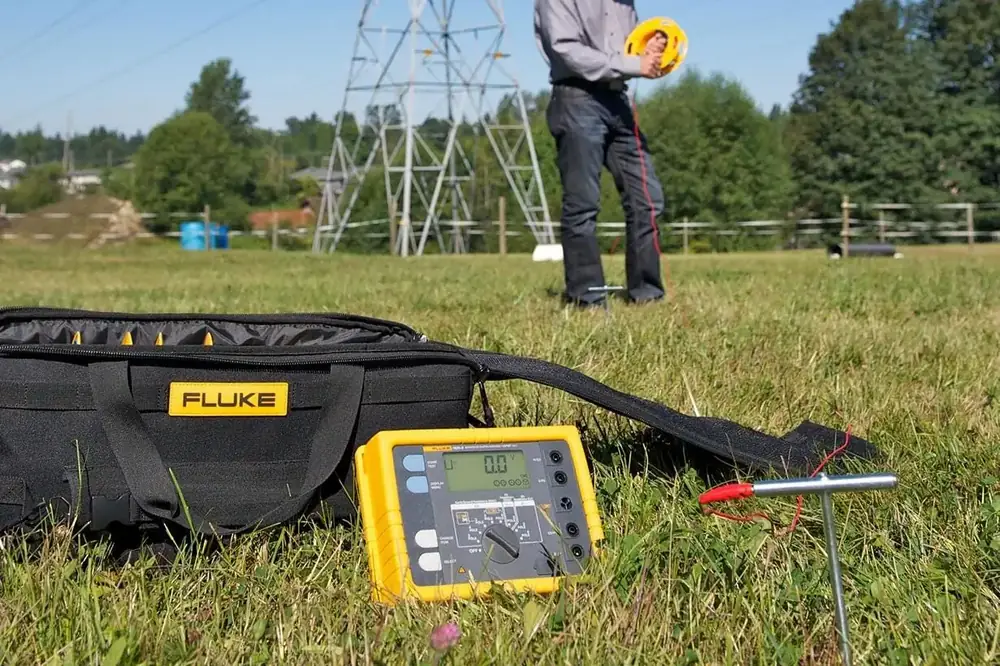

Fluke 1625-2 GEO Earth Ground Tester
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
Earthing resistance 3-/4-pole with/without clamp; soil resistivity; stakeless; interference voltage/frequency; 2-pole AC and 2-/4-pole DC resistance
Accuracy
RE 0.020 Ω–30 kΩ class ±(2% rdg + 2 digit) intrinsic (per 1625-2 Technical Data tables); selective/stakeless wider tolerances
Supply
6 × 1.5 V AA alkaline (IEC LR6)
Approvals
IEC 61010-1; IEC 61326-1
Notes
Specs from Fluke 1623-2/1625-2 Technical Data + fluke.com 1625-2 page. 1625-2 adds AFC, R*, adjustable limits vs 1623-2.
Measure Frequency
94/105/111/128 Hz manual or AFC; 55 Hz in R* function
| Parámetro | Valor |
|---|---|
| Measuring range | Earthing resistance 3-/4-pole with/without clamp; soil resistivity; stakeless; interference voltage/frequency; 2-pole AC and 2-/4-pole DC resistance |
| Accuracy | RE 0.020 Ω–30 kΩ class ±(2% rdg + 2 digit) intrinsic (per 1625-2 Technical Data tables); selective/stakeless wider tolerances |
| Supply | 6 × 1.5 V AA alkaline (IEC LR6) |
| Approvals | IEC 61010-1; IEC 61326-1 |
| Notes | Specs from Fluke 1623-2/1625-2 Technical Data + fluke.com 1625-2 page. 1625-2 adds AFC, R*, adjustable limits vs 1623-2. |
| Measure Frequency | 94/105/111/128 Hz manual or AFC; 55 Hz in R* function |
| Advanced Features | Automatic Frequency Control (AFC); R* earth impedance at 55 Hz; adjustable limits |
| Memory | Internal storage up to 1500 records via USB |
| Ingress Protection | IP56 case; IP40 battery door (EN 60529) |
| Dimensions | 250 × 133 × 187 mm |
| Weight | ≤ 1.1 kg without accessories |
| Operating Temperature | −10 to 50 °C |
