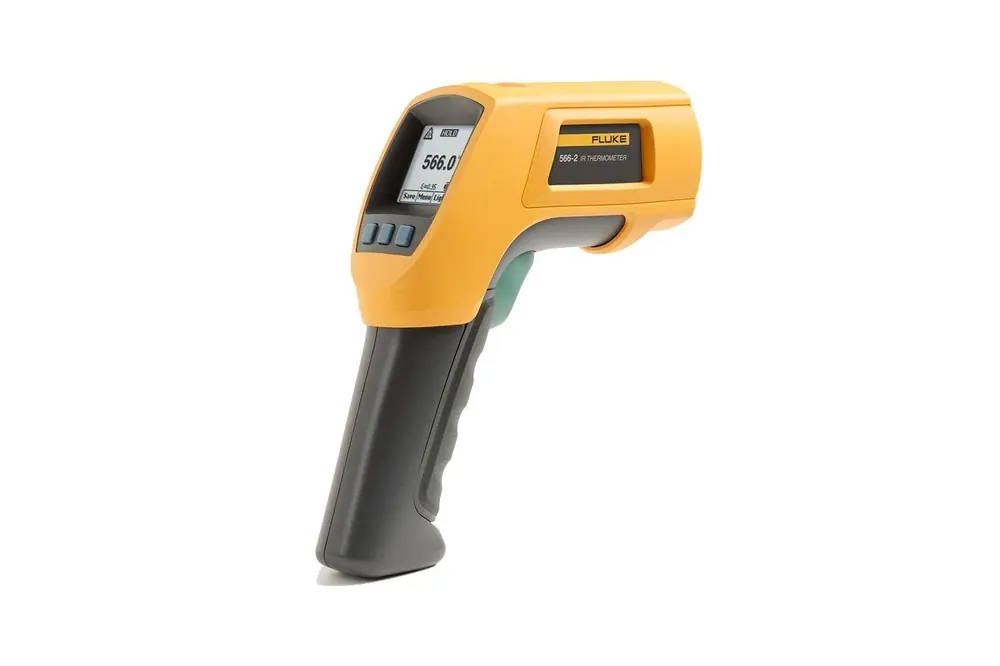

Fluke 568 Infrared/Contact Thermometer

SKU · 23213 · 568 · Marca: Fluke

Disponible

Cotización a solicitud

Sin pago en línea · líneas en BOM RFQ

Cantidad

RFQ solo líneas BOM. Envíe para cotización de ingeniería.

Parámetros clave

Measuring range

IR −40 to 800 °C (−40 to 1472 °F); Type K contact −270 to 1372 °C; included bead Type K −40 to 260 °C

Accuracy

IR ≥0 °C: ±1% or ±1.0 °C (whichever greater); <0 °C: ±(1.0 °C + 0.1°/1 °C). Type K −40 to 1372 °C: ±1% or 1 °C

Output

Dot-matrix display; Min/Max/Avg/Dif; Hi/Lo alarms; data log 99 points; USB 2.0 + FlukeView Forms

Supply

2× AA/LR6 and USB when used with a PC; ~12 h laser+backlight on / ~100 h off

Ambient temperature

Operating 0 to 50 °C; storage −20 to 60 °C

Display

Soft-key graphical menus; two-level backlight; emissivity 0.10–1.00 or material table

Parámetro	Valor
Measuring range	IR −40 to 800 °C (−40 to 1472 °F); Type K contact −270 to 1372 °C; included bead Type K −40 to 260 °C
Accuracy	IR ≥0 °C: ±1% or ±1.0 °C (whichever greater); <0 °C: ±(1.0 °C + 0.1°/1 °C). Type K −40 to 1372 °C: ±1% or 1 °C
Output	Dot-matrix display; Min/Max/Avg/Dif; Hi/Lo alarms; data log 99 points; USB 2.0 + FlukeView Forms
Supply	2× AA/LR6 and USB when used with a PC; ~12 h laser+backlight on / ~100 h off
Ambient temperature	Operating 0 to 50 °C; storage −20 to 60 °C
Display	Soft-key graphical menus; two-level backlight; emissivity 0.10–1.00 or material table
Approvals	Class 2 (II) laser 630–670 nm; CE
Mounting	Handheld pistol-grip IR/contact thermometer
Sensor type	Infrared thermometer + Type K thermocouple contact input; D:S 50:1; spectral 8–14 µm; response <500 ms
Notes	Specs from Fluke 566/568 Technical Data. 568 adds USB/FlukeView Forms and 99-point log vs 566.
