Rotronic

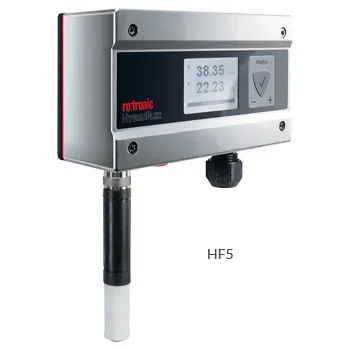

Rotronic HygroFlex5 HF5 Humidity and Temperature Transmitter
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Type
Rotronic HygroFlex5 (HF5) humidity and temperature transmitter for wall or duct mounting
Measurements
Relative humidity, temperature, and dew point via interchangeable HygroClip2 / HC2A probes
Outputs
Two freely programmable/scalable analog outputs; HF52 2-wire, HF53 3/4-wire, HF54/HF56 galvanically isolated versions
Digital
Optional RS-485, Ethernet, and wireless networking alongside analog outputs
Power
15-40 VDC / 12-28 VAC; isolated 9-36 VDC / 7-24 VAC; or 100-240 VAC isolated options
Housing
Industrial-quality housing for wall or duct use; optional backlit graphic display variants
| Parámetro | Valor |
|---|---|
| Type | Rotronic HygroFlex5 (HF5) humidity and temperature transmitter for wall or duct mounting |
| Measurements | Relative humidity, temperature, and dew point via interchangeable HygroClip2 / HC2A probes |
| Outputs | Two freely programmable/scalable analog outputs; HF52 2-wire, HF53 3/4-wire, HF54/HF56 galvanically isolated versions |
| Digital | Optional RS-485, Ethernet, and wireless networking alongside analog outputs |
| Power | 15-40 VDC / 12-28 VAC; isolated 9-36 VDC / 7-24 VAC; or 100-240 VAC isolated options |
| Housing | Industrial-quality housing for wall or duct use; optional backlit graphic display variants |
| Probes | Wide HygroClip2/HC2A probe family; simulators supported for process validation |
| Applications | HVAC, food, pharmaceutical, printing and paper humidity control |
| Repeatability | Absolute repeatability guaranteed per OEM HF5 datasheet positioning |
| Document | Rotronic/PST HF5 transmitter datasheet 59086E + HF5 manual v3.6 (processsensing.com) |
