Michell Instruments

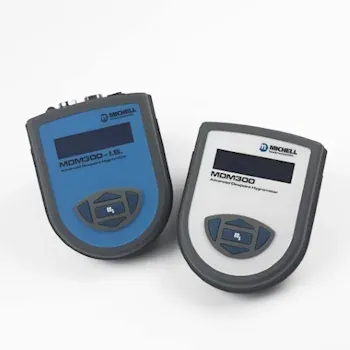

Michell Instruments MDM300 Advanced Dew Point Hygrometer
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Accuracy
±1 °Cdp (−60…+20 °Cdp); ±2 °Cdp (−100…−60 °Cdp); ±0.2 °C temperature
Protection
IP66 / NEMA 4
Measurement Technology
Michell ceramic metal-oxide moisture sensor
Calibrated Range Spot
−70…+20 °C dew point
Calibrated Range Online
−100…−70 °C dew point
Typical Response
T95 ≤15 min to −60 °Cdp (MDM300); ≤30 min (I.S.)
| Parámetro | Valor |
|---|---|
| Accuracy | ±1 °Cdp (−60…+20 °Cdp); ±2 °Cdp (−100…−60 °Cdp); ±0.2 °C temperature |
| Protection | IP66 / NEMA 4 |
| Measurement Technology | Michell ceramic metal-oxide moisture sensor |
| Calibrated Range Spot | −70…+20 °C dew point |
| Calibrated Range Online | −100…−70 °C dew point |
| Typical Response | T95 ≤15 min to −60 °Cdp (MDM300); ≤30 min (I.S.) |
| Operating Pressure | 350 barg (5076 psig) max |
| Battery Life | Up to 48 h typical (MDM300); 24 h (I.S.) |
| Gas Connections | 1/8" NPT female |
| Flow Across Sensor | 0.2…1.2 Nl/min (MDM300); 0.2…0.5 Nl/min (I.S.) |
| Dimensions | 218 × 170 × 90 mm (d × w × h) |
| Weight | 1.35 kg (MDM300); 1.5 kg (I.S.) |
| Certifications | ATEX/IECEx/UKCA/cQPSus/EAC Ex (I.S.); CE/UKCA |
| Data Logging | 8 MB; 5…60 s interval; up to 10,000 logs/file |
