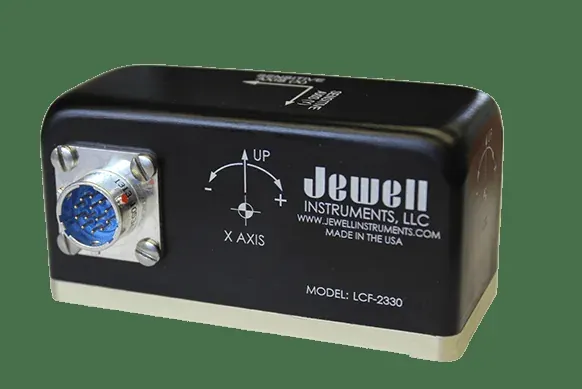

Jewell Instruments LCF-2330 Series Inclinometer
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
±1° to ±90° dual-axis full-scale input ranges
Accuracy
Nonlinearity 0.02–0.05% FRO (range-dependent); resolution/threshold 1 µrad
Output
±5 VDC, 0–5 VDC, or 4–20 mA (model-dependent)
Supply
±12 to ±18 VDC (±5 V models, 30 mA max); 20–30 VDC (4–20 mA models)
Protection
IP65
Ambient temperature
Operating −40 to +80 °C; storage −60 to +90 °C
| Parámetro | Valor |
|---|---|
| Measuring range | ±1° to ±90° dual-axis full-scale input ranges |
| Accuracy | Nonlinearity 0.02–0.05% FRO (range-dependent); resolution/threshold 1 µrad |
| Output | ±5 VDC, 0–5 VDC, or 4–20 mA (model-dependent) |
| Supply | ±12 to ±18 VDC (±5 V models, 30 mA max); 20–30 VDC (4–20 mA models) |
| Protection | IP65 |
| Ambient temperature | Operating −40 to +80 °C; storage −60 to +90 °C |
| Approvals | RoHS compliance available |
| Sensor type | Fluid-damped flexure-suspension force-balanced dual-axis inclinometer |
| Notes | OEM Jewell LCF-2330 datasheet + product page. Optional AD590 temp sensor, flange base, metric threads. No Instrumart. |
| Bandwidth | 0.5–30 Hz (−3 dB), range-dependent |
| Shock | 1000 g, 1 ms, ½ sine |
| Vibration | 20 grms |
| Axes | 2 |
