Rotronic
Rotronic CP11 Indoor Air Quality Meter
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Type
Handheld indoor air quality meter
Parameters
CO2, relative humidity, temperature, dew point, wet bulb
Co2
NDIR with ABC; 0…9999 ppm; ±30 ppm ±5% reading @ 0…5000 ppm; 1 ppm resolution
Humidity
HYGROMER IN-1; 0…100 %rh; ±2 %rh (10…90 %rh)
Temperature
NTC; −20…60 °C; ±0.3 K @ 23 °C ±5 K
Memory
18,000 automatic values + 99 manual single values with timestamp
| Parámetro | Valor |
|---|---|
| Type | Handheld indoor air quality meter |
| Parameters | CO2, relative humidity, temperature, dew point, wet bulb |
| Co2 | NDIR with ABC; 0…9999 ppm; ±30 ppm ±5% reading @ 0…5000 ppm; 1 ppm resolution |
| Humidity | HYGROMER IN-1; 0…100 %rh; ±2 %rh (10…90 %rh) |
| Temperature | NTC; −20…60 °C; ±0.3 K @ 23 °C ±5 K |
| Memory | 18,000 automatic values + 99 manual single values with timestamp |
| Alarm | Adjustable audible CO2 alarm |
| Power Connections | ≈40 mA; mini USB to PC; optional 5 VDC AC adapter; warm-up <1 min |
| Application Range | 0…50 °C / 0…100 %rh non-condensing |
| Dimensions Weight | 76.7 × 41.8 × 233.9 mm; 290 g; ABS |
| Software | HW4 (SW21) download from rotronic.com |

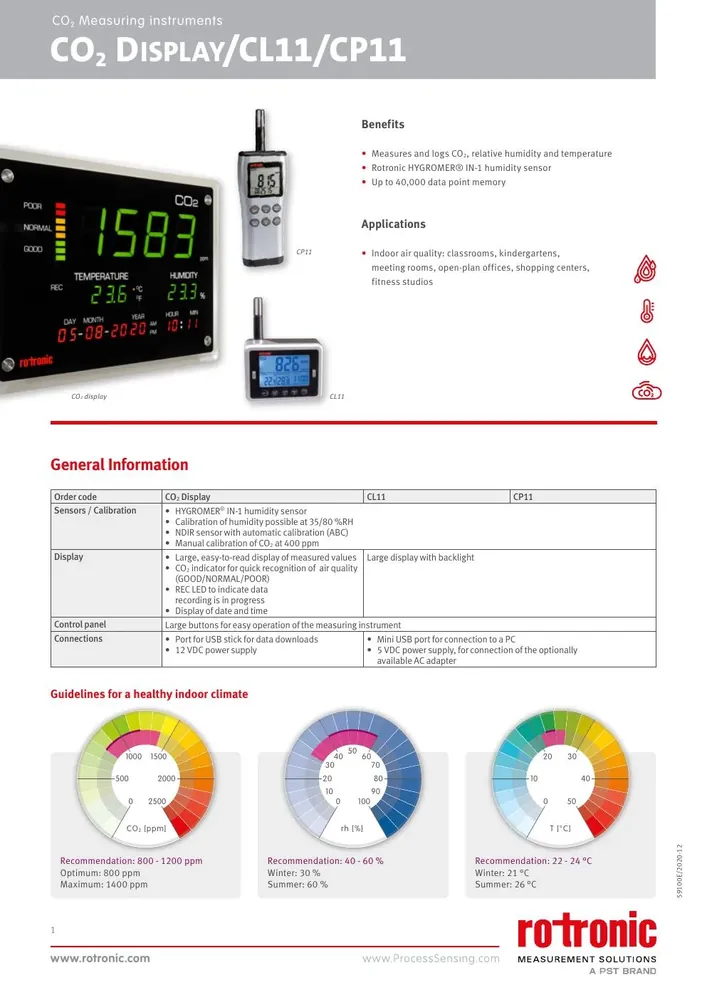

| Document | Rotronic 59100E CO2 Display/CL11/CP11 |
