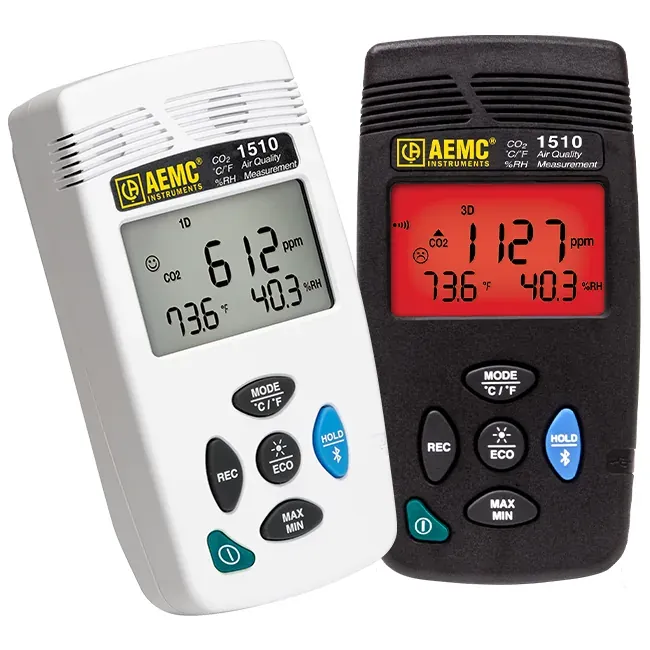

AEMC 1510 Air Quality Data Logger
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
CO2 0–5000 ppm; temperature −10 to +60 °C (14–140 °F); humidity 5–95% RH
Accuracy
CO2 ±50 ppm ±3% of reading; temperature ±0.5 °C (±1 °F); humidity ±2% RH
Output
Bluetooth Class I + USB mass-storage link; DataView / AQR software (no analog process output)
Supply
2× AA 1.5 V alkaline or rechargeable; micro-USB wall adapter (120 V 60 Hz)
Protection
IP40
Ambient temperature
Operation −10 to 60 °C at 5–95% RH; storage −20 to 60 °C without battery
| Parámetro | Valor |
|---|---|
| Measuring range | CO2 0–5000 ppm; temperature −10 to +60 °C (14–140 °F); humidity 5–95% RH |
| Accuracy | CO2 ±50 ppm ±3% of reading; temperature ±0.5 °C (±1 °F); humidity ±2% RH |
| Output | Bluetooth Class I + USB mass-storage link; DataView / AQR software (no analog process output) |
| Supply | 2× AA 1.5 V alkaline or rechargeable; micro-USB wall adapter (120 V 60 Hz) |
| Protection | IP40 |
| Ambient temperature | Operation −10 to 60 °C at 5–95% RH; storage −20 to 60 °C without battery |
| Display | Backlit LCD (blue; red in alarm); Hold / Min / Max; comfort indicators |
| Approvals | CE; IEC 61010-1; IEC 61326-1 |
| Sensor type | NDIR double-beam infrared CO2; CMOS temperature; capacitive humidity |
| Notes | Specs from AEMC Model 1510 datasheet Cat.#2138.08/2138.09 + product page. Colors gray/white. |
| Resolution | CO2 1 ppm; temperature 0.1 °C/°F; humidity 0.1% RH |
| Response Time | CO2 63% response <200 s |
| Datalogging | Programmable interval 1 min to 2 h; >1 million measurements |
| Dimensions | 125 × 65.5 × 32 mm (4.92 × 2.58 × 1.26 in) |
| Weight | 190 g (6.7 oz) with batteries |
| Safety Rating | IEC 61010-1 50 V CAT II; IEC 61326-1 |
