Rice Lake Weighing Systems

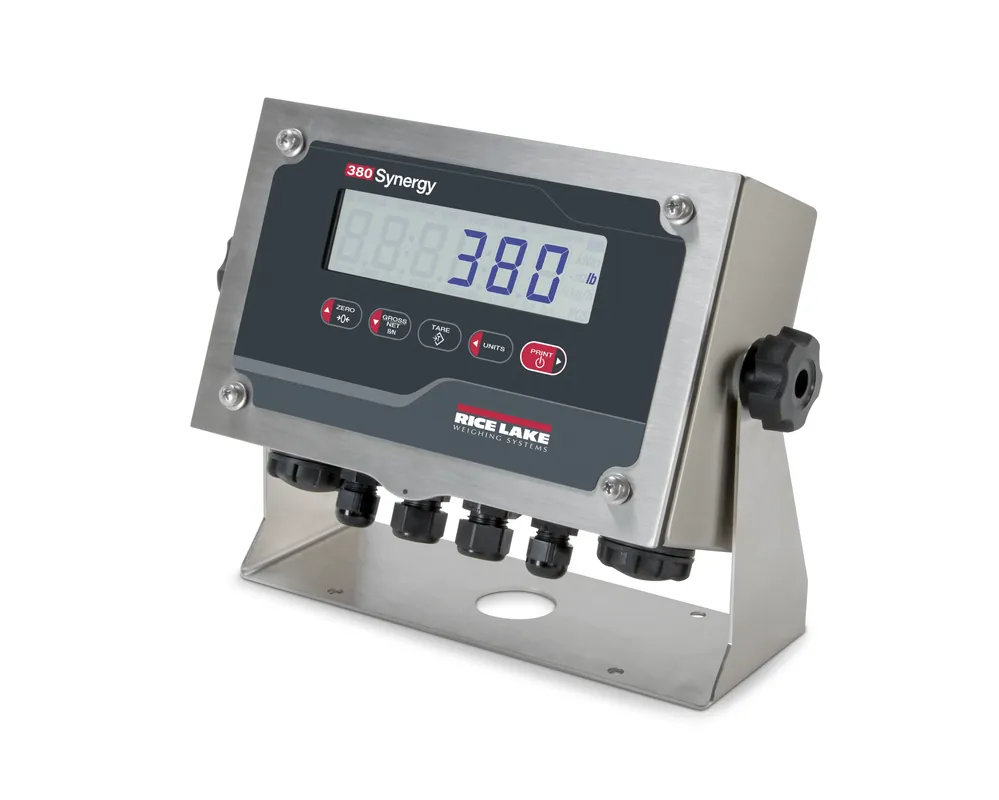

Rice Lake 380 Synergy Series Digital Weight Indicator
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Display
Six 1 in (25 mm) LCD digits; five tactile buttons
Approvals
NTEP 21-051 Class III/IIIL 10,000 d; Measurement Canada AM-6184; CE/UKCA/cULus
Type
Rice Lake 380 Synergy Series battery-powered digital weight indicator (PN 202711)
Power
Four alkaline C-cell batteries; optional 115/230 VAC to 12 VDC adapter
Battery Life
Up to 100 h with one 350 ohm load cell, no backlight; shorter with more cells/backlight
Excitation
5 VDC; drives 8 x 350 ohm or 16 x 700 ohm load cells
| Parámetro | Valor |
|---|---|
| Display | Six 1 in (25 mm) LCD digits; five tactile buttons |
| Approvals | NTEP 21-051 Class III/IIIL 10,000 d; Measurement Canada AM-6184; CE/UKCA/cULus |
| Type | Rice Lake 380 Synergy Series battery-powered digital weight indicator (PN 202711) |
| Power | Four alkaline C-cell batteries; optional 115/230 VAC to 12 VDC adapter |
| Battery Life | Up to 100 h with one 350 ohm load cell, no backlight; shorter with more cells/backlight |
| Excitation | 5 VDC; drives 8 x 350 ohm or 16 x 700 ohm load cells |
| Resolution Linearity | Internal 8,000,000 counts; display 100,000; system linearity within 0.01% FS |
| Communications | One full-duplex RS-232 and one USB 2.0 port; configurable print formats |
| Enclosure | IP66 304 stainless steel; about 11.58 x 4.53 x 8.57 in; weight about 6.25 lb (3 kg) |
| Document | Rice Lake 380 Synergy Series literature + 380/380X/381 technical manual PN 201481 (ricelake.com) |
