Fuji Electric

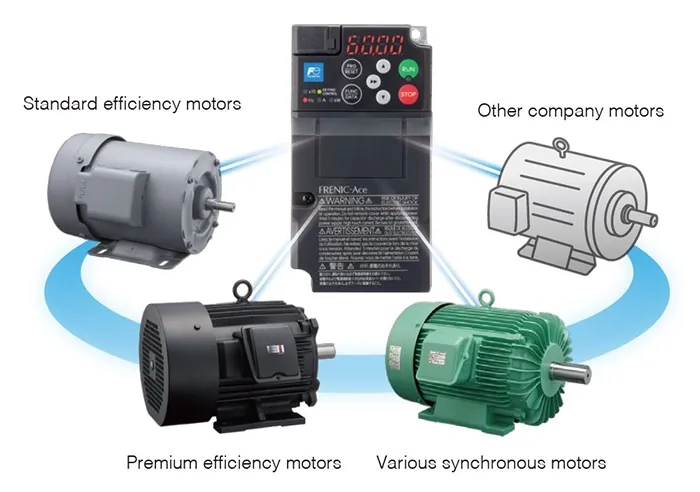

Fuji Electric FRENIC-Ace Inverter
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Type
High-performance customizable AC drive inverter (Fuji Electric FRENIC-Ace)
Input Power
200–240 V 1ph/3ph; 380–480 V 3ph; 50/60 Hz
Capacity
From fractional HP to ~40 HP class (HHD/HND ratings; see DS tables)
Control Modes
V/f; dynamic torque vector; encoder vector; PM sensorless vector
Safety
Built-in Safe Torque Off (STO) EN/ISO13849-1 SIL3 / PLe cat.3
Custom Logic
Up to 200-step customizable logic
| Parámetro | Valor |
|---|---|
| Type | High-performance customizable AC drive inverter (Fuji Electric FRENIC-Ace) |
| Input Power | 200–240 V 1ph/3ph; 380–480 V 3ph; 50/60 Hz |
| Capacity | From fractional HP to ~40 HP class (HHD/HND ratings; see DS tables) |
| Control Modes | V/f; dynamic torque vector; encoder vector; PM sensorless vector |
| Safety | Built-in Safe Torque Off (STO) EN/ISO13849-1 SIL3 / PLe cat.3 |
| Custom Logic | Up to 200-step customizable logic |
| Communications | Dual RS-485; optional CC-Link / fieldbus adapters |
| Output Frequency | Max 500 Hz (platform; E3 series up to 599 Hz per global pages) |
| Overload | HHD 150% 1 min / 200% 0.5 s; HND 120% 1 min |
| Document | FEA-ACDR-DS-100 FRENIC-Ace Datasheet |
